Military Tactical Fiber Optic Cable With TPU 2 4 6 Core 9/125um Tight Buffer
Military Tactical Fiber Optic Cable With TPU 2 4 6 Core 9/125um Tight Buffer
Military Tactical Fiber Optic Cable With TPU 2 4 6 Core 9/125um Tight Buffer
Military Tactical Fiber Optic Cable With TPU 2 4 6 Core 9/125um Tight Buffer
Military Tactical Fiber Optic Cable With TPU 2 4 6 Core 9/125um Tight Buffer
Military Tactical Fiber Optic Cable With TPU 2 4 6 Core 9/125um Tight Buffer
Specifications
Brand Name :
ZXOFC
Model Number :
ZXOFC-GJFJU
Certification :
CE/ROHS/ISO9001
Place of Origin :
ShenZhen,China
MOQ :
300 meters
Price :
Negotiable
Payment Terms :
T/T, Western Union,Paypal,Credit card
Supply Ability :
10000KM per month
Delivery Time :
1-2 weeks according to the lengths
Packaging Details :
Plywood drum or Iron wooden drum or Fumigated wooden drum or Cardboard box (mainly for FTTH cable) Optional
Fiber type :
Singlemode,Multimode,om1,om2,om3
Armored :
Spiral steel tape armored
Model number :
GJFJU-4B6
Fiber count :
1-12 core
Optical fiber :
9/125 tight buffered fiber
Outer Sheath material :
TPU
Application :
Aerial,direct buried,duct
Description

2 4 6 8 10 12 core 9/125um Tight Buffer Military Tactical Tiber Optical Cable with TPU

Description

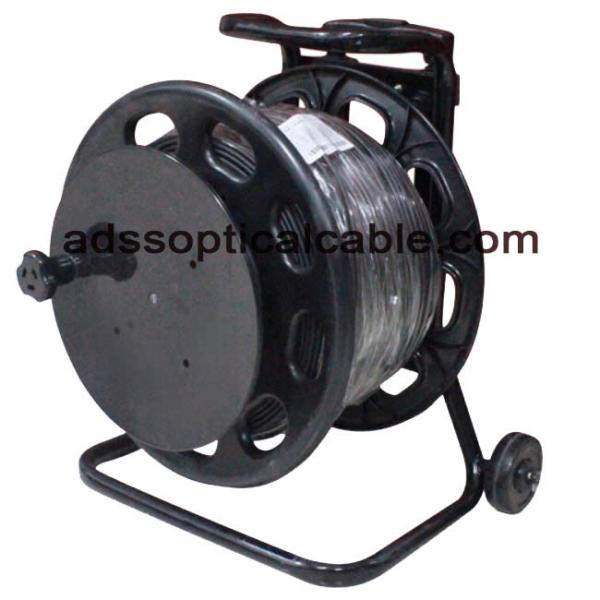

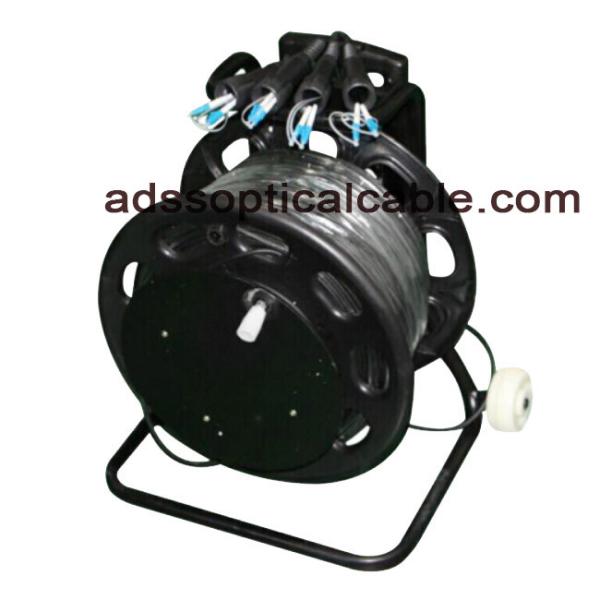

Tactical fiber optic cable reel. 2/4/6/8/12-core single mode fiber optic (multimode fiber optional) cable, with LC connector and optional: SC,FC, ST connector, at each end, military grade mesh protected and neoprene with Velcro. Mounted on cars of the brands adam hall or schill.
Fully customizable, measured,type connectors, or single mode, multimode. Om1, om2 om3, os1.

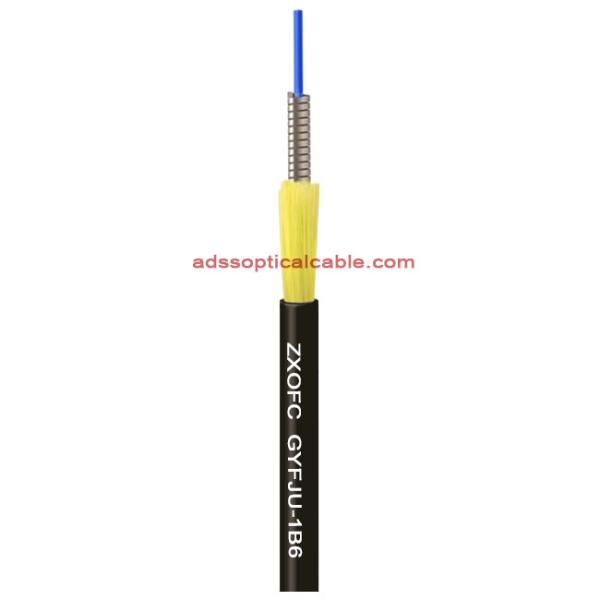

Cable Cross-section diagram

Military Tactical Fiber Optic Cable With TPU 2 4 6 Core 9/125um Tight Buffer

Feature

Extremely strong, lightweight, rugged, survivable tight-buffered cables designed for military tactical field use and commercial applications.

Breakout cable design with an individual color-coded subcable surrounding each optical fiber.

Application:

1. Military communication system,Field,RRU FTTA
2. Coal, oil, natural gas, geological exploration
3. Broadcast television, temporary communication

Technique Parameters

iber counts Cable diameter (mm) Weight

(kg/km)

 Tensile strength(N) Crush Resistance

(N/100mm)

 Minimum bending

radius (mm)
Short-term Long-term Short-term Long-term Static Dynamic
2~4 5 10 600 400 200 300 60 30
6~7 5.2 11.5 600 400 200 300 60 30
10~12 6 12.8 600 400 200 300 60 30

Note:
1. Only a part of Tactical Fiber Optic Cables are listed in the table. Cables with other specifications can be inquired.
2. Cables can be supplied with a range of single mode or multimode fibers.
3. Specially designed Cable structure is available on request.


Temperature Rage:

Operating :-20℃ to 60℃

Storage :-20℃ to 60℃

Standards:

Comply with stand YD/T 901-2009 as well as IEC 60794-1

Certificate

Military Tactical Fiber Optic Cable With TPU 2 4 6 Core 9/125um Tight Buffer

Our services
Military Tactical Fiber Optic Cable With TPU 2 4 6 Core 9/125um Tight Buffer
Package and delivery
Military Tactical Fiber Optic Cable With TPU 2 4 6 Core 9/125um Tight Buffer
Military Tactical Fiber Optic Cable With TPU 2 4 6 Core 9/125um Tight Buffer
Package:
Standard Wooden Drum With Protection.
Standard reel length:2/3/4/5km/reel,other length is also available
Shipping
For the large order , we usually ship the cable by sea .
For small order , we can ship them by sea (LCL) or by air /by exress
(DHL,UPS,FEDE or TNT..) as your request .

1. Are you the real factory?

Yes,we are the real factory with 20 years’ history.

2. What is your fiber brand?

Fiber brands including :ZXOFC

3. What is your main products?

Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables; ADSS;

Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.

4. Product quality guarantee period?

25 years’ Guarantee for fiber optic cable

5. Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.

6. What is your delivery time?

Within 24 hours for 30KM normal kinds of fiber optic cable;

1 ~2 days for fiber optic patch cords with 10000 connectors.

7. MOQ: what is your minimum quantity?

MOQ for fiber optic cables: 1KM

There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.

8. Do you have distributor in other country or domestic?

Until now, we sell our products to customers directly. And factory price could be offered.

9. Payment

For large orders: T/T by advanced deposit

For small orders: T/T,Western Union and Paypal are acceptable.

10. Shipping & Delivery

For large orders: by sea (LCL or FCL)

For small orders: by sea (LCL), by air or by courier services,any of which is optional.
