Multi Purpose Fiber Optic Cable Accessories / 12 Core Fiber Optic Cable Break Out
Multi Purpose Fiber Optic Cable Accessories / 12 Core Fiber Optic Cable Break Out
Multi Purpose Fiber Optic Cable Accessories / 12 Core Fiber Optic Cable Break Out
Multi Purpose Fiber Optic Cable Accessories / 12 Core Fiber Optic Cable Break Out
Multi Purpose Fiber Optic Cable Accessories / 12 Core Fiber Optic Cable Break Out
Multi Purpose Fiber Optic Cable Accessories / 12 Core Fiber Optic Cable Break Out
Specifications
Brand Name :
ZXOFC
Model Number :
GJFJHV 12 core optic fibre cable
Certification :
CE,ISO9001,ROSH
Place of Origin :
ShenZhen,China
MOQ :
10KM
Price :
Negotiable
Payment Terms :
T/T, Western Union,Paypal,Credit card
Supply Ability :
10000KM per month
Delivery Time :
1-2 weeks according to the lengths
Packaging Details :
Plywood drum or Iron wooden drum or Fumigated wooden drum or Cardboard box (mainly for FTTH cable) Optional
Fiber type :
G652D,G657A,OM1,OM2,OM3,OM4
Outer sheath :
PE,LSZH.
Certificate :
SGS,UL,ROHS,ISO 9001-2008,TLC,CE.
Fiber count :
≥10
Color :
Black or Customized
Package :
2km/roll,3km/roll or Customized
Standards :
YD/T 769-2003 as well as IEC 60794-1
Description

12 Core Optic Fibre Cable Multi Purpose Break Out Cable Indoor Fiber Optic Cable GJFJHV

Description

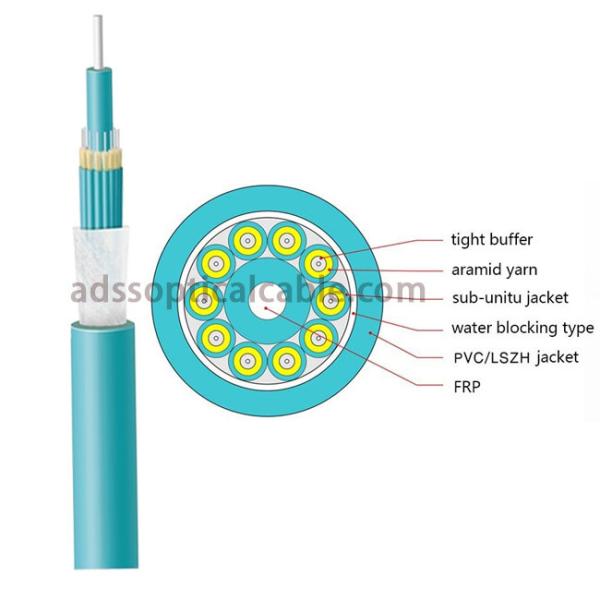

GJFJHV cable,the tight buffer fiber is placed on the surface with a layer of aramid yarn as strength member units,multi fibers as the subunit twist

with FRP(and some cushions) into the circle ,and finally into fiber optic cable with PVC or LSZH sheath,with dry-type water-blocking materials

between fiber and sheath.

Optical Characteristics

· Each sub cable contains aramid yarn,good bend performance,without gel,cleaning friendly,easy construction and connection.

· Tight buffer fiber with single strength member and sheath to overcome the effect from bad environment and Mechanical stress.

· LSZH sheath,anti-retardant,Self-extinguishing,Suitable for machine room, cable shaft and used in indoor environment such as wiring inside the wall.

· LSZH sheath,UV,Waterproof mildew,ESCR,No acid gas release,non-corrosive room equipment, suitable for indoor and outdoor use or need a

high flame-retardant grades of the indoor environment (such as wiring in the ceiling, open wire cabling etc.)

Application

· Indoor horizontal wiring, vertical wiring in buildings, LAN network.

· Standard core can be directly apply to connectors,to use for device connecting

· Used as a backbone cable tail can access directly from the indoor and outdoor to save the junction box, isolated lightning, improve system

reliability.

Standard

· GJPFJV cable complies with Standard YD/T1258.4-2009,ICEA-596,GR-409,IEC794 etc; and meets with the requirements of UL approval for OFNR

Optical Characteristics

G.652 G.655 50/125μm 62.5/125μm
Attenuation
(+20℃)		 @850nm ≤3.5dB/km ≤3.5dB/km
@1300nm ≤1.5dB/km ≤1.5dB/km
@1310nm ≤0.45dB/km ≤0.45dB/km
@1550nm ≤0.30dB/km ≤0.30dB/km
Bandwidth (Class A) @850 ≥500MHZ·km ≥200MHZ·km
@1300 ≥1000MHZ·km ≥600MHZ·km
Numerical Aperture 0.200±0.015NA 0.275±0.015NA

Cable Cut-off Wavelength

 ≤1260nm ≤1480nm

Technical Parameters


Fiber Count
Subunit Diameter
mm
Cable Diameter
mm
Cable Weight
Kg/km
Tensile Strength
Long/Short Term
N
Crush Resistance Long/Short Term
N/100m
Bending Radius
Static/Dynamic
mm
2 core 2.0 7.0±0.5 45 500/1000 400/800 30D/15D
4 core 2.0 7.0±0.5 45 500/1000 400/800 30D/15D
6 core 2.0 8.3±0.5 62 500/1000 400/800 30D/15D
8 core 2.0 9.4±0.5 85 500/1000 400/800 30D/15D
10 core 2.0 10.7±0.5 109 500/1000 400/800 30D/15D
12 core 2.0 12.2±0.5 140 500/1000 400/800 30D/15D

Environmental Characteristics

Transport Temperature -20℃~+60℃
Storage Temperature -20℃~ +60℃
Installation Temperature -5℃ ~ +50℃

Operating Temperature

 -20℃ ~ +60℃

Packaging Details:

1-2KM per roll. Packed by wooden drum. Other packing available according to client`s Request.

Multi Purpose Fiber Optic Cable Accessories / 12 Core Fiber Optic Cable Break Out

Sheath mark:
The following printing(white hot foil indentation)is applied at 1meter intervals.

a. Supplier: ZXOFC or as customer required;
b. Standard Code(Product Type, Fiber Type,Fiber Count);
c. Year of manufacture: 14 years;
d. Length marking in meters.

Port:

Hongkong/Shenzhen

Lead Time:
Quantity(KM) 1-300 ≥300
Est.Time(Days) 15 To be Negotiated!
Note

The Packing standard and details as above is estimated and final size&weight shall be confirmed before shipment.

Multi Purpose Fiber Optic Cable Accessories / 12 Core Fiber Optic Cable Break Out

The cables are packed in carton, coiled on Bakelite & wooden drum. During transportation, right tools should be used to avoid damaging the package and to handle with ease. Cables should be protected from moisture, kept away from high temperature and fire sparks, protected from over bending and crushing, protected from mechanical stress and damage.
