GYXTS Anti Rodent Fiber Optic Cable 2-24 Core Steel Tape Armored G652D G657
GYXTS Anti Rodent Fiber Optic Cable 2-24 Core Steel Tape Armored G652D G657
GYXTS Anti Rodent Fiber Optic Cable 2-24 Core Steel Tape Armored G652D G657
GYXTS Anti Rodent Fiber Optic Cable 2-24 Core Steel Tape Armored G652D G657
GYXTS Anti Rodent Fiber Optic Cable 2-24 Core Steel Tape Armored G652D G657
GYXTS Anti Rodent Fiber Optic Cable 2-24 Core Steel Tape Armored G652D G657
GYXTS Anti Rodent Fiber Optic Cable 2-24 Core Steel Tape Armored G652D G657
GYXTS Anti Rodent Fiber Optic Cable 2-24 Core Steel Tape Armored G652D G657
Specifications
Brand Name :
ZXOFC
Model Number :
ZXOFC-GYXTS
Certification :
CE,ISO9001,ROSH
Place of Origin :
ShenZhen,China
MOQ :
3KM
Price :
Negotiable
Payment Terms :
T/T, Western Union,Paypal,Credit card
Supply Ability :
10000KM per month
Delivery Time :
1-2 weeks according to the lengths
Packaging Details :
Plywood drum or Iron wooden drum or Fumigated wooden drum or Cardboard box (mainly for FTTH cable) Optional
Outer sheath :
PE,HDPE,PVC
Loose tube :
PBT
Color :
Black
Armored :
Steel tape armored
Fiber :
G652D single mode or multi mode
Certificate: :
ISO9001, ISO14001, CE, CANS and TLC
Fiber count: :
2-24 core
Application :
Duct, direct burial, pipeline,
Description

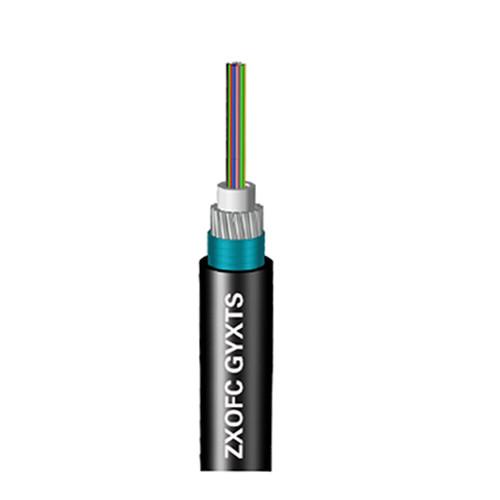

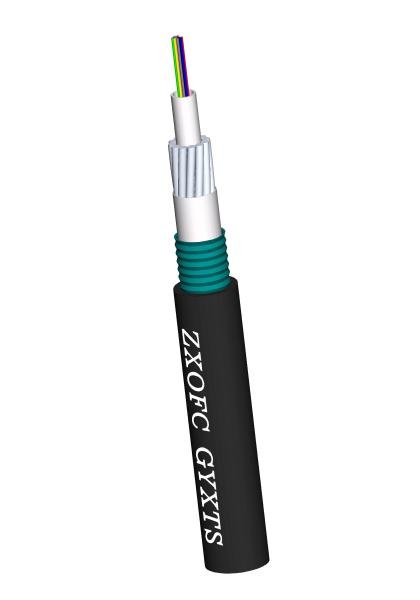

Duct 2-24 core Steel tape Armored G652D Or G657 Anti-Rodent Fiber optical cable

Description

ormal fiber optical cable PE sheath station is easily struck by Squirrels, mice and other small animals as it is generally installed in open field and

the PE sheath is fragile.

In such cases, we recommend the installation of cable with twisted steel wire.

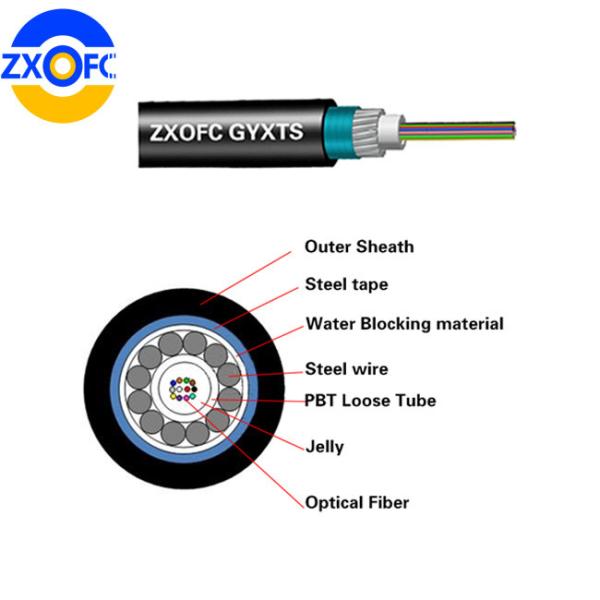

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. 12

steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count are stranded around the PBT member and circular cable

core. The PSP is longitudinally applied over the cable core, witch is filled with the filling compound to protect it from water ingress. Then, the cable

is completed with a PE sheath.

Features

Good mechanical and temperature performance.

High strength loose tube that is hydrolysis resistant.

Special tube filling compound ensure a critical protection of fiber.

Crush resistance and flexibility.

PSP enhancing moisture-proof.

Two parallel steel wires ensure tensile strength

Small diameter, light weight and friendly installation

Long delivery length

Application:duct/aerial

Item Specification
Fiber type Single mode
Fiber material Doped silica

Attenuation coefficient

@ 1310 nm

@ 1383 nm

@ 1550 nm

@ 1625 nm

0.35 dB/km

0.32 dB/km

0.21 dB/km

0.24 dB/km
Point discontinuity 0.05 dB
Cable cut-off wavelength 1260 nm
Zero-dispersion wavelength 1300 ~ 1324 nm
Zero-dispersion slope 0.092 ps/(nm2.km)

Chromatic dispersion

@ 1288 ~ 1339 nm

@ 1271 ~ 1360 nm

@ 1550 nm

@ 1625 nm

3.5 ps/(nm. km)

5.3 ps/(nm. km)

18 ps/(nm. km)

22 ps/(nm. km)
PMDQ (Quadrature average*) 0.2 ps/km1/2
Mode field diameter @ 1310 nm 9.2±0.4 um
Core / Clad concentricity error 0.5 um
Cladding diameter 125.0 ± 0.7 um
Cladding non-circularity 1.0%
Primary coating diameter 245 ± 10 um
Proof test level 100 kpsi (=0.69 Gpa), 1%

Temperature dependence

0oC~ +70oC @ 1310 & 1550nm

 0.1 dB/km

Application

Suitable for long-distance communication and indoor communication

Way of laying: Direct burial, pipeline

Bend radius: Static 12.5x cable diameter

Dynamic 25x cable diameter

Noted:

1. Only a part of Aerial/Duct/Direct Buried/UnderGround/Armoured cables are listed in the table. Cables with other specifications can be inquired.

2. Cables can be supplied with a range of single mode or multimode fibers.

3. Specially designed Cable structure is available on request.

Packaging Details:

1-5KM per roll. Packed by wooden drum. Other packing available according to client`s Request.

Sheath mark:

The following printing(white hot foil indentation)is applied at 1meter intervals.

a. Supplier: ZXOFC or as customer required;
b. Standard Code(Product Type, Fiber Type,Fiber Count);
c. Year of manufacture: 14 years;
d. Length marking in meters.

Port:

Hongkong/Shenzhen

Lead Time:
Quantity(KM) 1-300 ≥300
Est.Time(Days) 15 To be Negotiated!
Note

The Packing standard and details as above is estimated and final size&weight shall be confirmed before shipment.

GYXTS Anti Rodent Fiber Optic Cable 2-24 Core Steel Tape Armored G652D G657

The cables are packed in carton, coiled on Bakelite & wooden drum. During transportation, right tools should be used to avoid damaging the package and to handle with ease. Cables should be protected from moisture, kept away from high temperature and fire sparks, protected from over bending and crushing, protected from mechanical stress and damage.

FAQ

1. Are you the real factory?

Yes,we are the real factory with 20 years’ history.

2. What is your fiber brand?

Fiber brands including :ZXOFC

3. What is your main products?

Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables; ADSS;

Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.

4. Product quality guarantee period?

25 years’ Guarantee for fiber optic cable

5. Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.

6. What is your delivery time?

Within 24 hours for 30KM normal kinds of fiber optic cable;

1 ~2 days for fiber optic patch cords with 10000 connectors.

7. MOQ: what is your minimum quantity?

MOQ for fiber optic cables: 1KM

There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.

8. Do you have distributor in other country or domestic?

Until now, we sell our products to customers directly. And factory price could be offered.

9. Payment

For large orders: T/T by advanced deposit

For small orders: T/T,Western Union and Paypal are acceptable.

10. Shipping & Delivery

For large orders: by sea (LCL or FCL)

For small orders: by sea (LCL), by air or by courier services,any of which is optional.
