Nylon Sheath Anti Rodent Fiber Optic Cable GYFT54 Double Metallic Armors
Nylon Sheath Anti Rodent Fiber Optic Cable GYFT54 Double Metallic Armors
Nylon Sheath Anti Rodent Fiber Optic Cable GYFT54 Double Metallic Armors
Nylon Sheath Anti Rodent Fiber Optic Cable GYFT54 Double Metallic Armors
Nylon Sheath Anti Rodent Fiber Optic Cable GYFT54 Double Metallic Armors
Nylon Sheath Anti Rodent Fiber Optic Cable GYFT54 Double Metallic Armors
Specifications
Brand Name :
ZXOFC
Model Number :
ZXOFC-GYFTA54
Certification :
CE,ISO9001,ROSH
Place of Origin :
ShenZhen,China
MOQ :
3KM
Price :
Negotiable
Payment Terms :
T/T, Western Union,Paypal,Credit card
Supply Ability :
10000KM per month
Delivery Time :
1-2 weeks according to the lengths
Packaging Details :
Plywood drum or Iron wooden drum or Fumigated wooden drum or Cardboard box (mainly for FTTH cable) Optional
Color :
Black
Fiber :
G652D single mode or multi mode
Certificate: :
ISO9001, ISO14001, CE, CANS and TLC
Fiber count: :
12 core, 24 core, 48 core, 96 core, 144 core
Application :
Duct, direct burial, pipeline, optical network, outdoor cabling
Outer sheath :
PE,HDPE,PVC
Loose tube :
PBT
Armored :
Aluminium tape+Steel tape
Description

Anti-rodent and Anti-termite Optical Cable GYFTA54 with Double Metallic Armors and Nylon Sheat

Description

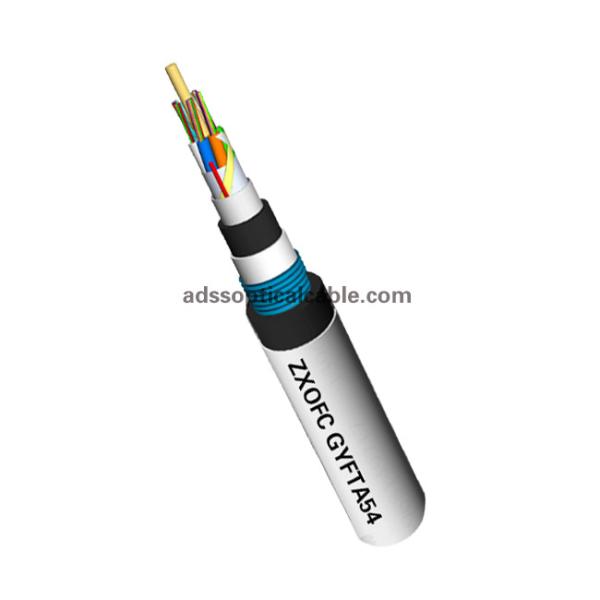

GYFTA54 is a kind of outdoor communication optical cable, which consists of a non-metallic central strength member, stranded loose tubes, a

laminated aluminum tape armor, a PE inner sheath, a stainless steel tape armor, a PE middle sheath and a nylon outer sheath. Single-mode fibres

are housed in loose tubes that are made of highmodulus plastic and filled with tube filling compound. The tubes are stranded around the central

member to form a cable core. The core is filled with cable filling compound and armored with laminated aluminum tape. Then a PE inner sheath is

extruded and armored with stainless steel tape. Finally, a middle PE sheath and a nylon outer sheath is extruded.

Features

• Accurate process control ensuring good mechanical and temperature performances

• The material of loose tubes with good hydrolysis resistance and relatively high strength

• Tube filling compound providing key protection for fibres

• Excellent crush resistance

• Metallic armors providing good anti-rodent performance

• Nylon outer sheath with high hardness providing certain anti-termite performance

• Applicable to duct and buried installations

Technical Characteristics

Type Units

Cable diameter

(mm)

Cable weight

(Kg/km)

Tensile strength

Long/short term (N)

Crush

Long/short term

(N/100mm)

Bending radius

Dynamic/static (mm)
GYFTA54-24 6 14.4 225 900/2700 1000/3000 20D/10D
GYFTA54-48 6 15.0 250 900/2700 1000/3000 20D/10D
GYFTA54-72 6 15.0 250 900/2700 1000/3000 20D/10D
GYFTA54-96 8 16.8 300 900/2700 1000/3000 20D/10D
GYFTA54-144 12 20.0 370 900/2700 1000/3000 20D/10D
GYFTA54-288 24 22.4 465 900/2700 1000/3000 20D/10D

Noted:


1. Only a part of Aerial/Duct/Direct Buried/UnderGround/Armoured cables are listed in the table. Cables with other specifications can be inquired.
2. Cables can be supplied with a range of single mode or multimode fibers.
3. Specially designed Cable structure is available on request.

Packaging Details:

1-5KM per roll. Packed by wooden drum. Other packing available according to client`s Request.

Sheath mark:

The following printing(white hot foil indentation)is applied at 1meter intervals.
a. Supplier: ZXOFC or as customer required;
b. Standard Code(Product Type, Fiber Type,Fiber Count);
c. Year of manufacture: 14 years;
d. Length marking in meters.

Port:

Hongkong/Shenzhen

Lead Time:
Quantity(KM) 1-300 ≥300
Est.Time(Days) 7-15 To be Negotiated!
Note

The Packing standard and details as above is estimated and final size&weight shall be confirmed before shipment.

Nylon Sheath Anti Rodent Fiber Optic Cable GYFT54 Double Metallic Armors


The cables are packed in carton, coiled on Bakelite & wooden drum. During transportation, right tools should be used to avoid damaging the

package and to handle with ease. Cables should be protected from moisture, kept away from high temperature and fire sparks, protected from

over bending and crushing, protected from mechanical stress and damage.

FAQ

1. Are you the real factory?

Yes,we are the real factory with 20 years’ history.

2. What is your fiber brand?

Fiber brands including : ZXOFC

3. What is your main products?

Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables; ADSS;

Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.

4. Product quality guarantee period?

25 years’ Guarantee for fiber optic cable

5. Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.

6. What is your delivery time?

Within 24 hours for 30KM normal kinds of fiber optic cable;

1 ~2 days for fiber optic patch cords with 10000 connectors.

7. MOQ: what is your minimum quantity?

MOQ for fiber optic cables: 1KM

There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.

8. Do you have distributor in other country or domestic?

Until now, we sell our products to customers directly. And factory price could be offered.

9. Payment

For large orders: T/T, L/C

For small orders: T/T,Western Union and Paypal are acceptable.

10. Shipping & Delivery

For large orders: by sea (LCL or FCL)

For small orders: by sea (LCL), by air or by courier services,any of which is optional.
