Specifications
Brand Name :
ZXOFC
Model Number :
ZXOFC-GYTS53
Certification :
CE,ISO9001,ROSH
Place of Origin :
ShenZhen,China
MOQ :
3KM
Price :
Negotiable
Payment Terms :
T/T, Western Union,Paypal,Credit card
Supply Ability :
10000KM per month
Delivery Time :
1-2 weeks according to the lengths
Packaging Details :
Plywood drum or Iron wooden drum or Fumigated wooden drum or Cardboard box (mainly for FTTH cable) Optional
Color :
Black
Fiber :
G652D single mode or multi mode
Certificate: :
ISO9001, ISO14001, CE, CANS and TLC
Fiber count: :
12 core, 24 core, 48 core, 96 core, 144 core
Application :
Duct, direct burial, pipeline, optical network, outdoor cabling
Outer sheath :
PE,HDPE,PVC
Loose tube :
PBT
Description

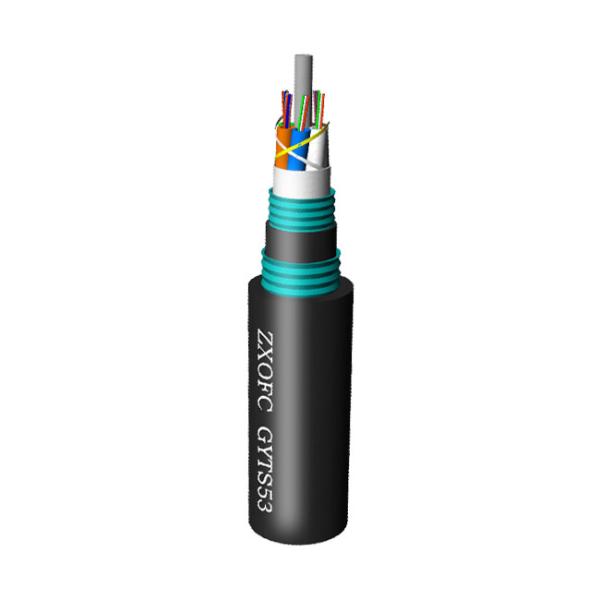

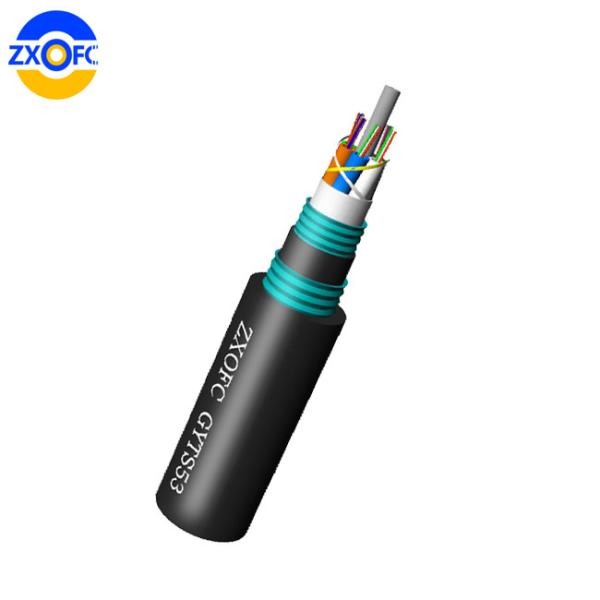

Outdoor GYTS53 Armored Duct Direct Buried Underground Fiber Optic Cable

Description

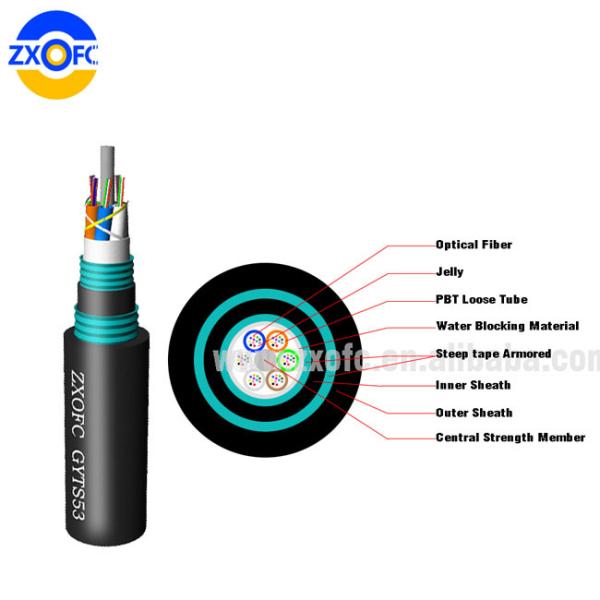

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The PSP is longitudinally applied over the cable core, which is filled with the filling compound to protect it from water ingress. The cable is completed with a PE sheath.

Features

Good mechanical and temperature performance

High strength loose tube that is hydrolysis resistant

Special tube filling compound ensure a critical protection of fiber

Crush resistance and flexibility

Full cross-section water-blocking structure to ensure good water blocking and moisture resistance

Storage/Operating Temperature: -40°C to 70°C

Application

Suitable for long-distance communication and indoor communication

Way of laying: Direct burial, pipeline

Bend radius: Static 12.5x cable diameter

Dynamic 25x cable diameter

Cable Type (increased by 2fibers) Fiber Count Cable Diameter (mm) Cable Weight (kg/km) Tensile Strength Long/Short Term

( N)

 Crush Resistance

Long/Short Term (N/100mm)

 Bending Radius

Static/ Dynamic (mm)
GYTS53 2 ~ 36 2 ~ 36 13.7 190 1000/3000 1000/3000 10D/20D
GYTS53 38 ~ 72 38 ~ 72 15.3 229 1000/3000 1000/3000 10D/20D
GYTS53 74~96 74~96 15.9 244 1000/3000 1000/3000 10D/20D
GYTS53 98 ~120 98 ~120 18.0 288 1000/3000 1000/3000 10D/20D
GYTS53 122 ~144 122 ~144 19.2 325 1000/3000 1000/3000 10D/20D
Noted:

1. Only a part of Aerial/Duct/Direct Buried/UnderGround/Armoured cables are listed in the table. Cables with other specifications can be inquired.

2. Cables can be supplied with a range of single mode or multimode fibers.

3. Specially designed Cable structure is available on request.

Packaging Details:

1-5KM per roll. Packed by wooden drum. Other packing available according to client`s Request.

Sheath mark:

The following printing(white hot foil indentation)is applied at 1meter intervals.

a. Supplier: ZXOFC or as customer required;
b. Standard Code(Product Type, Fiber Type,Fiber Count);
c. Year of manufacture: 14 years;
d. Length marking in meters.

Port:

Hongkong/Shenzhen

Lead Time:
Quantity(KM) 1-300 ≥300
Est.Time(Days) 15 To be Negotiated!
Note

The Packing standard and details as above is estimated and final size&weight shall be confirmed before shipment.

Armored Anti Rodent Fiber Optic Cable , Duct Underground Fiber Optic Cable

The cables are packed in carton, coiled on Bakelite & wooden drum. During transportation, right tools should be used to avoid damaging the package and to handle with ease. Cables should be protected from moisture, kept away from high temperature and fire sparks, protected from over bending and crushing, protected from mechanical stress and damage.
