Submarine/underwater fiber optical cable Steel wire armored GYTS333/GYTA333 cable

Description

The structure of GYTS333 is positioned singlemode or Multimode Fibers into a loose tube made of a high modulus plastic filled with a water-resistance compound.In the center of the cable is a metal strengthen member.For some cores of the optical cable, the metal reinforcement member needs to be extruded with a layer of polyethylene (PE).Tubes and fillers are stranded around the strength member into a compact and circular cable core which is filled with the filling compound to protect it from water ingress.The PSP is longitudinally applied over the cable core to be extruded a PE inner jacket.After being armored with double row single fine round steel wire, the polyethylene outer sheath is finally extruded to form cable.

Product features:

Layer stranded direct buried, underwater optical cable, choose high quality optical fiber, ensure the cable has excellent transmission performance.

Precise control of fiber length, ensure that the cable has excellent mechanical and temperature properties.

Full section water resistance structure ensures good water resistance and moisture proof performance.

Special Jelly filled with the tube playing a key role in protecting the fibe

Corrosion resistant phosphating steel wire with high young's modulus is used for the central strengthen member.

Longitudinal double-side coated corrugated steel tape armoring, double layer steel wire wrapped armoring, ensure the cable mechanical compression, bulletproof, meet the requirements of underwater laying.

Strict process, raw material control, ensure stable cable work for more than 30 years.

Application:

Suitable for toll and interoffice communication

Applied to under water and directly buried laying

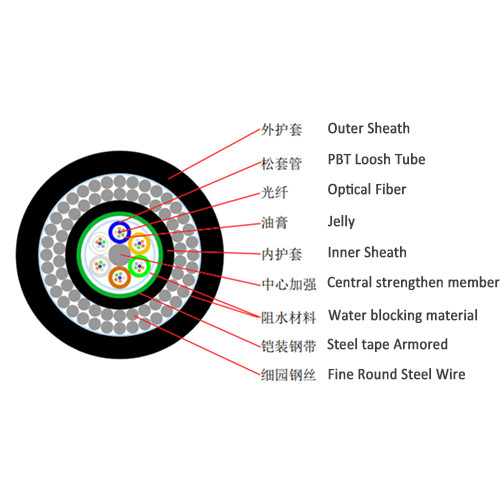

Cable cross-section diagram:

Sheath mark:

The following printing(white hot foil indentation)is applied at 1meter intervals.

a. Supplier: ZXOFC or as customer required;

b. Standard Code(Product Type, Fiber Type,Fiber Count);

c. Year of manufacture: 14 years;

d. Length marking in meters.

Port:

Shenzhen/Hongkong/GuangZhou

Lead Time:

Note

The Packing standard and details as above is estimated and final size&weight shall be confirmed before shipment.

The cables are packed in carton, coiled on Bakelite & wooden drum. During transportation, right tools should be used to avoid damaging the

package and to handle with ease. Cables should be protected from moisture, kept away from high temperature and fire sparks, protected from

over bending and crushing, protected from mechanical stress and damage.
