Waterproof ADSS Aerial Fiber Optic Cable 24 48 72 Core 100m Span Gel Free
Waterproof ADSS Aerial Fiber Optic Cable 24 48 72 Core 100m Span Gel Free
Waterproof ADSS Aerial Fiber Optic Cable 24 48 72 Core 100m Span Gel Free
Waterproof ADSS Aerial Fiber Optic Cable 24 48 72 Core 100m Span Gel Free
Specifications
Brand Name :
ZXOFC
Model Number :
ZXOFC-ADSS-gel-free
Certification :
CE,ISO9001,ROSH
Place of Origin :
ShenZhen,China
MOQ :
2KM
Price :
Negotiable
Payment Terms :
T/T, Western Union,Paypal,Credit card
Supply Ability :
10000KM per month
Delivery Time :
1-2 weeks according to the lengths
Packaging Details :
Plywood drum or Iron wooden drum or Fumigated wooden drum or Cardboard box (mainly for FTTH cable) Optional
Gel :
Gel free,no gel in the cable
Fiber type :
Singlemode or multimode,om1,om2,om3,om4
Outer sheath :
AT,MDPE,HDPE
Fiber count :
144 core
Structure :
Stranded Loose tube
Span :
50-150meter
Central strength Member :
FRP
Application :
Aerial,direct buried,duct
Description

Gel-Free ADSS Aerial Fiber Optical Cable 12 24 48 72 96 144 288 core ADSS 100m Span

Description

Gel free or “all dry” Dielectric Self-Supporting (ADSS) Cable is designed so its tensile strength gel free member will provide the necessary resistance to sag to overcome the effects of its own weight, ice and wind loading, so the cable span will remain serviceable, even over very long spans, for its entire lifetime. It is gel-free, containing water blocking powder, yarn, and ribbon to block water entry into the cable. This document describes the placement method of Gel free ADSS Cable.

These cables are designed to be strong enough to allow longer lengths of cable to be installed between support towers. ADSS cable is designed to be light weight and small in diameter to reduce the load on tower structures due to cable weight, wind, and ice. ADSS(All-Dielectric Self-Supporting) cable is ideal for installation in distribution as well as transmission environments, even when live-line installations are required. There is no support or messenger wire required, so installation is achieved in a single pass, making ADSS an economical and simple means of building a fiber optic network.

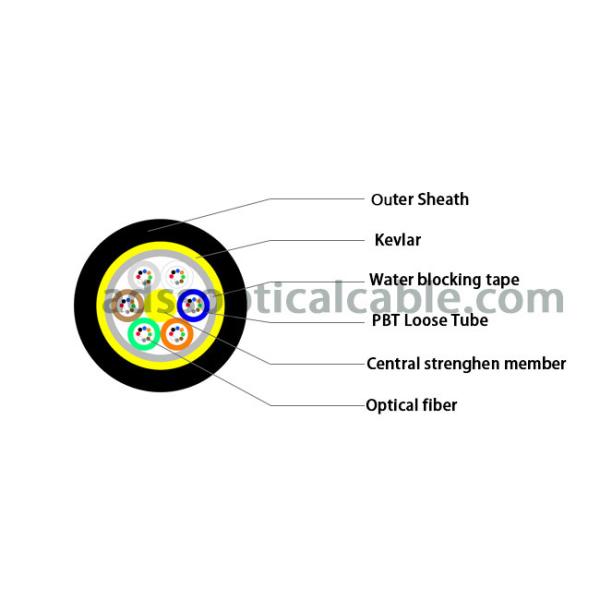

Cable Cross-section diagram

Waterproof ADSS Aerial Fiber Optic Cable 24 48 72 Core 100m Span Gel Free

Technique Parameters

G.652 G.655 50/125μm 62.5/125μm

Attenuation

(+20℃)

 @850nm ≤3.0 dB/km ≤3.0 dB/km
@1300nm ≤1.0 dB/km ≤1.0 dB/km
@1310nm ≤0.36 dB/km ≤0.40 dB/km
@1550nm ≤0.22 dB/km ≤0.23dB/km
Bandwidth (Class A) @850nm ≥500 MHz·km ≥200 MHz·km
@1300nm ≥1000 MHz·km ≥600 MHz·km
Numerical Aperture 0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength λcc ≤1260nm ≤1480nm

Our services
Waterproof ADSS Aerial Fiber Optic Cable 24 48 72 Core 100m Span Gel Free
Our Certificate
Waterproof ADSS Aerial Fiber Optic Cable 24 48 72 Core 100m Span Gel Free
Package and delivery
Waterproof ADSS Aerial Fiber Optic Cable 24 48 72 Core 100m Span Gel Free
Waterproof ADSS Aerial Fiber Optic Cable 24 48 72 Core 100m Span Gel Free
Package:
Standard Wooden Drum With Protection.
Standard reel length:2/3/4/5km/reel,other length is also available
Shipping
For the large order , we usually ship the cable by sea .
For small order , we can ship them by sea (LCL) or by air /by exress
(DHL,UPS,FEDE or TNT..) as your request .
FAQ

1. Are you the real factory?
Yes,we are the real factory with 20 years’ history.

2. What is your fiber brand?
Fiber brands including :ZXOFC

3. What is your main products?
Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables; ADSS;
Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.

4. Product quality guarantee period?
25 years’ Guarantee for fiber optic cable

5. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.

6. What is your delivery time?
Within 24 hours for 30KM normal kinds of fiber optic cable;
1 ~2 days for fiber optic patch cords with 10000 connectors.

7. MOQ: what is your minimum quantity?
MOQ for fiber optic cables: 1KM
There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.

8. Do you have distributor in other country or domestic?
Until now, we sell our products to customers directly. And factory price could be offered.

9. Payment
For large orders: T/T by advanced deposit
For small orders: T/T,Western Union and Paypal are acceptable.

10. Shipping & Delivery
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services,any of which is optional.
