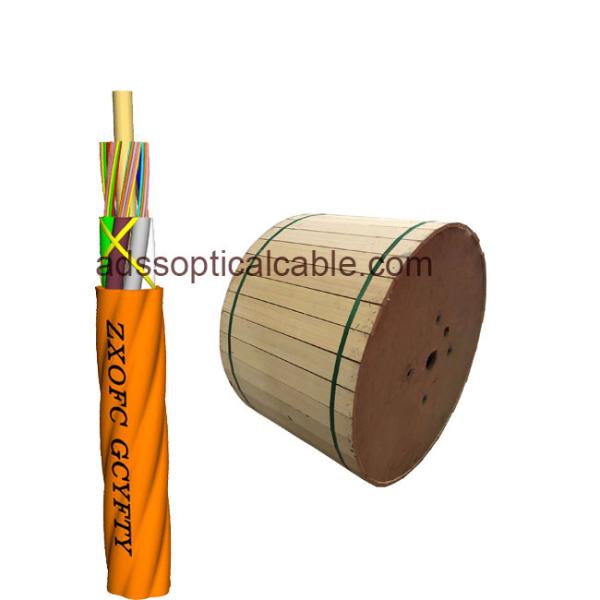

Air Blown Gel Free Cable / 12-288 Core Duct Fiber Optic Cable Singlemode GCYFTY
Air Blown Gel Free Cable / 12-288 Core Duct Fiber Optic Cable Singlemode GCYFTY
Air Blown Gel Free Cable / 12-288 Core Duct Fiber Optic Cable Singlemode GCYFTY
Air Blown Gel Free Cable / 12-288 Core Duct Fiber Optic Cable Singlemode GCYFTY
Specifications
Brand Name :
ZXOFC
Model Number :
ZXOFC-GCYFTY
Certification :
CE,ISO9001,ROSH
Place of Origin :
ShenZhen,China
MOQ :
2KM
Price :
Negotiable
Payment Terms :
T/T, Western Union,Paypal,Credit card
Supply Ability :
10000KM per month
Delivery Time :
1-2 weeks according to the lengths
Packaging Details :
Plywood drum or Iron wooden drum or Fumigated wooden drum or Cardboard box (mainly for FTTH cable) Optional
Gel :
Gel-filled or Non gel-filled optional
Fiber type :
Singlemode or multimode,om1,om2,om3,om4
Outer sheath :
PE,LSZH or PVC
Fiber count :
2-288 core
Structure :
Stranded Loose tube
Diameter :
Customized
Central strength Member :
FRP
Application :
Aerial,direct buried,duct
Description

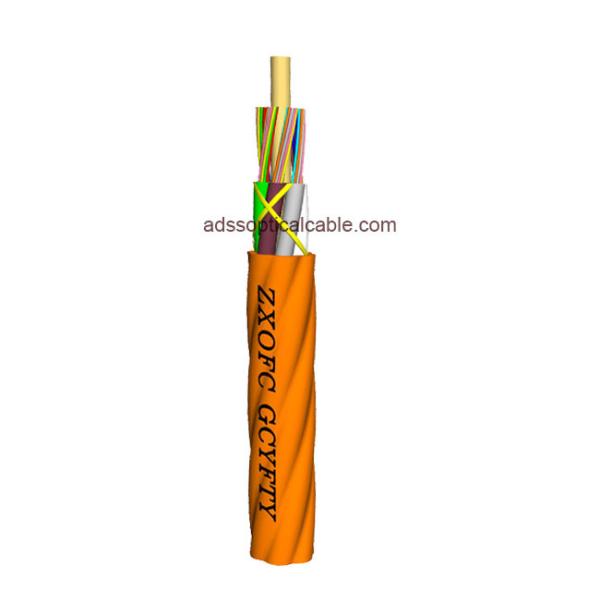

Duct Micro Air Blown 12~288 Cores Singlemode G652D GCYFTY Fiber Optic Cable

Description

The Air Blown Micro cable is constructed with FRP Central Strength Member, Aramid yarn strength member for better tensile strength, high

density polyethylene outer Jacket. Non-metallic structure and good electro-magnetic resistance makes it a good choice for use in High voltage and

thunder prone areas. In addition, the cable features a broad operating temperature range and water-blocking, making it suitable for indoor/outdoor

duct installations.

Features

. through up to 72 fibers for 6 mm ID micro-ducts

. Small diameter, lightweight and low friction sheath design

. stranding design allows for easy mid-span access and isolates
fibers from installation and environmental rigors

. HDPE as outer sheath for increased blowing distance and fast.

. Ripcord added for easier sheath removal.

. Fiber options: SM (G652D, G657A), MM (OM1, OM2, OM3 & OM4)

. Higher fiber count cable designs are available on request.

Cable Cross-section diagram

Air Blown Gel Free Cable / 12-288 Core Duct Fiber Optic Cable Singlemode GCYFTY

Technique Parameters

ITEM Value
Fiber count 6~72 Cores
Tube count Up to 6
Cable OD 6.0±0.3mm
Loose tube OD 1.65±0.05mm
Max. Tensile(Short term) 600N
Max. Tensile(Long term) 300N
Max. Crushing Resistance(Short term) 1000N/100 mm
Max. Crushing Resistance(Long term) 300N/100 mm
Sheath Material Standard: HDPE. Optional: PE
Min. Bending Radius(Dynamic) 20D
Min. Bending Radius(Static) 10D
Strength Member 1.6mm FRP
Standard Jacket Color Black
Environmental Protection RoHS COMPLIANT
Storage Temperature -40~70ºC
Operation Temperature -40~70ºC
Installation Temperature 0 ~ 50ºC

Our services
Air Blown Gel Free Cable / 12-288 Core Duct Fiber Optic Cable Singlemode GCYFTY
Our Certificate
Air Blown Gel Free Cable / 12-288 Core Duct Fiber Optic Cable Singlemode GCYFTY
Package and delivery
Air Blown Gel Free Cable / 12-288 Core Duct Fiber Optic Cable Singlemode GCYFTY
Air Blown Gel Free Cable / 12-288 Core Duct Fiber Optic Cable Singlemode GCYFTY
Package:
Standard Wooden Drum With Protection.
Standard reel length:2/3/4/5km/reel,other length is also available
Shipping
For the large order , we usually ship the cable by sea .
For small order , we can ship them by sea (LCL) or by air /by exress
(DHL,UPS,FEDE or TNT..) as your request .
FAQ

1. Are you the real factory?
Yes,we are the real factory with 20 years’ history.

2. What is your fiber brand?
Fiber brands including :ZXOFC

3. What is your main products?
Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables; ADSS;
Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.

4. Product quality guarantee period?
25 years’ Guarantee for fiber optic cable

5. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.

6. What is your delivery time?
Within 24 hours for 30KM normal kinds of fiber optic cable;
1 ~2 days for fiber optic patch cords with 10000 connectors.

7. MOQ: what is your minimum quantity?
MOQ for fiber optic cables: 1KM
There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.

8. Do you have distributor in other country or domestic?
Until now, we sell our products to customers directly. And factory price could be offered.

9. Payment
For large orders: T/T by advanced deposit
For small orders: T/T,Western Union and Paypal are acceptable.

10. Shipping & Delivery
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services,any of which is optional.
