Air Blown DuctMicro Gel Free Cable GCYFXTY 8 12 24 Core Environmentally Friendly
Air Blown DuctMicro Gel Free Cable GCYFXTY 8 12 24 Core Environmentally Friendly
Air Blown DuctMicro Gel Free Cable GCYFXTY 8 12 24 Core Environmentally Friendly
Air Blown DuctMicro Gel Free Cable GCYFXTY 8 12 24 Core Environmentally Friendly
Air Blown DuctMicro Gel Free Cable GCYFXTY 8 12 24 Core Environmentally Friendly
Air Blown DuctMicro Gel Free Cable GCYFXTY 8 12 24 Core Environmentally Friendly
Specifications
Brand Name :
ZXOFC
Model Number :
ZXOFC-GCYFXTY-24B1.3
Certification :
CE/ROHS/ISO9001
Place of Origin :
ShenZhen,China
MOQ :
3000 meters
Price :
Negotiable
Payment Terms :
T/T, Western Union,Paypal,Credit card
Supply Ability :
10000KM per month
Delivery Time :
1-2 weeks according to the lengths
Packaging Details :
Plywood drum or Iron wooden drum or Fumigated wooden drum or Cardboard box (mainly for FTTH cable) Optional
Fiber type :
Singlemode,Multimode,om1,om2,om3
Armored :
Kevlar
Model number :
GCYFXTY-24B1.3
Fiber count :
2-24 core
Optical fiber :
Corning or YOFC
Outer Sheath material :
PE,HDPE,MDPE,LSZH
Application :
Aerial,direct buried,duct
Description

(Full Dry) Air Blown 2 4 6 8 12 24 Core Micro Fiber Optic Cable GCYFXTY Duct Cable

Description

The Super Mini uni-tube blown cable is the product that with small diameter, lightweight, highly flexibility and proper stiffness, and it can be

blown into the microduct of 5.0/3.5mm. The fibres are coated with a soft acrylate resin which provides excellent dimensional and thermal stability

to cushion the fibres, in addition, the resin can be easily stripped in connecting the fibres. The outer sheath is a thermoplastic that is of low friction.

The surface of the sheath is designed with special grooves, compared to the surface of the traditional optical fibre cable, it provides not only the

high level of mechanical protection, but also the perfect blowing performance.

Feature

Optimum cable structure, high fiber density.

Accurate fiber length balance, ensure stable performance.

No gel in cable core for water blocking, low carbon and environmental.

Structure Innovation in sheath, enhancing the blowing performance.

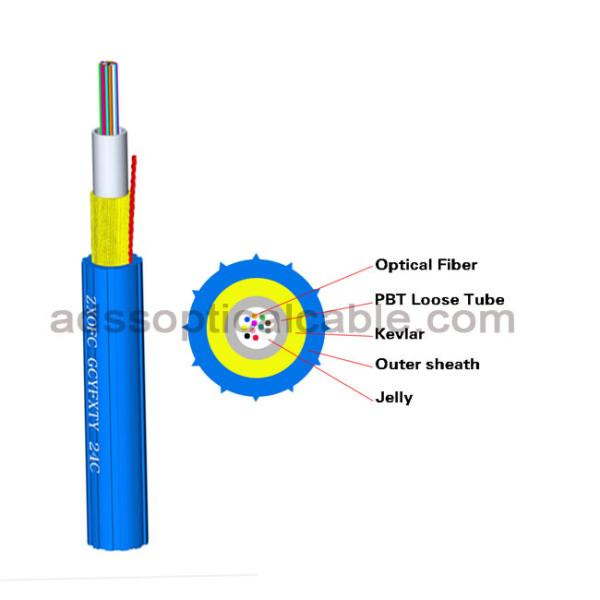

Cable Cross-section Diagram

Air Blown DuctMicro Gel Free Cable GCYFXTY 8 12 24 Core Environmentally Friendly

Technique Parameters

Type

O.D.

(mm)

Weight

(Kg/km)

Tensile strength

Long/short term

(N)

Crush

Long/short term

(N/100mm)
GCYFXTY-2B1.3 2.3 4 0.15G/0.5G 150/450
GCYFXTY -4B1.3 2.3 4 0.15G/0.5G 150/450
GCYFXTY -6B1.3 2.3 4 0.15G/0.5G 150/450
GCYFXTY- 8B1.3 2.3 4 0.15G/0.5G 150/450
GCYFXTY- 12B1.3 2.3 4 0.15G/0.5G 150/450
GCYFXTY- 24B1.3 2.7 6.5 0.15G/0.5G 150/450

Note:
1. Only a part of Tactical Fiber Optic Cables are listed in the table. Cables with other specifications can be inquired.
2. Cables can be supplied with a range of single mode or multimode fibers.
3. Specially designed Cable structure is available on request.

Application

• The cable can be used as the drop cable of distribution segments in FTTH networks and can be laid by air blowing to connect the branch point with the access point for subscribers. The cable is also applicable in backbone networks , metropolitan area networks and access networks


Temperature Rage:

• Transport/storage temperature: -20℃ to +70℃

Certificate

Air Blown DuctMicro Gel Free Cable GCYFXTY 8 12 24 Core Environmentally Friendly

Our services
Air Blown DuctMicro Gel Free Cable GCYFXTY 8 12 24 Core Environmentally Friendly
Our Certificate
Package and delivery
Air Blown DuctMicro Gel Free Cable GCYFXTY 8 12 24 Core Environmentally Friendly
Air Blown DuctMicro Gel Free Cable GCYFXTY 8 12 24 Core Environmentally Friendly
Package:
Standard Wooden Drum With Protection.
Standard reel length:2/3/4/5km/reel,other length is also available
Shipping
For the large order , we usually ship the cable by sea .
For small order , we can ship them by sea (LCL) or by air /by exress
(DHL,UPS,FEDE or TNT..) as your request .

1. Are you the real factory?

Yes,we are the real factory with 20 years’ history.

2. What is your fiber brand?

Fiber brands including :ZXOFC

3. What is your main products?

Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables; ADSS;

Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.

4. Product quality guarantee period?

25 years’ Guarantee for fiber optic cable

5. Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.

6. What is your delivery time?

Within 24 hours for 30KM normal kinds of fiber optic cable;

1 ~2 days for fiber optic patch cords with 10000 connectors.

7. MOQ: what is your minimum quantity?

MOQ for fiber optic cables: 1KM

There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.

8. Do you have distributor in other country or domestic?

Until now, we sell our products to customers directly. And factory price could be offered.

9. Payment

For large orders: T/T by advanced deposit

For small orders: T/T,Western Union and Paypal are acceptable.

10. Shipping & Delivery

For large orders: by sea (LCL or FCL)

For small orders: by sea (LCL), by air or by courier services,any of which is optional.
