GCYFXTY Unitube Gel Free Cable Air Blown Small Diameter 2-24 Core
GCYFXTY Unitube Gel Free Cable Air Blown Small Diameter 2-24 Core
GCYFXTY Unitube Gel Free Cable Air Blown Small Diameter 2-24 Core
GCYFXTY Unitube Gel Free Cable Air Blown Small Diameter 2-24 Core
GCYFXTY Unitube Gel Free Cable Air Blown Small Diameter 2-24 Core
GCYFXTY Unitube Gel Free Cable Air Blown Small Diameter 2-24 Core
Specifications
Brand Name :
ZXOFC
Model Number :
ZXOFC-GCYFXTY-24B1.3
Certification :
CE/ROHS/ISO9001
Place of Origin :
ShenZhen,China
MOQ :
3000 meters
Price :
Negotiable
Payment Terms :
T/T, Western Union,Paypal,Credit card
Supply Ability :
10000KM per month
Delivery Time :
1-2 weeks according to the lengths
Packaging Details :
Plywood drum or Iron wooden drum or Fumigated wooden drum or Cardboard box (mainly for FTTH cable) Optional
Fiber type :
Singlemode,Multimode,om1,om2,om3
Armored :
Kevlar
Model number :
GCYFXTY-24B1.3
Fiber count :
2-24 core
Optical fiber :
Corning or YOFC
Outer Sheath material :
PE,HDPE,MDPE
Application :
Aerial,direct buried,duct
Description

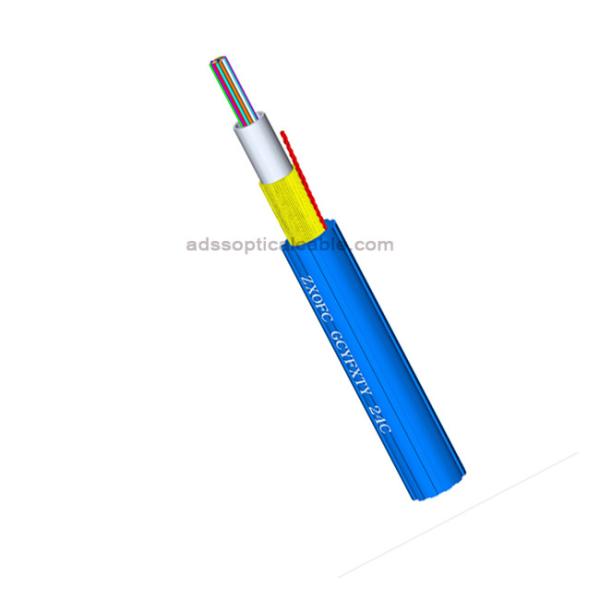

GCYFXTY Uni-tube 2-24 core air blown small diameter optical fiber cable

Description

Optical fibres are housed in a loose tube that is made of high-modulus plastic and filled with tube filling compound. Aramid yarns

are placed outside the loose tube as the strength member, then a sheath with grooves is extruded. This type of cable is

particularly applicable to air-blowing constructions in access networks.

Feature

• Small size and light weight

• Tube filling compound providing key protection for fibres

• Unique design of sheath with grooves ensuring good air blowing performance

• Allowing to blow by phases to reduce initial investment

• High blowing speed up to 50m/min, and long blowing distance up to 1000m

• Allowing to blow out and replace with new cables to keep technical superiority

• Allowing to cut micro ducts anywhere anytime for branch without influences on other cables, saving manholes, hand holes and cable joints

Cable Cross-section Diagram

GCYFXTY Unitube Gel Free Cable Air Blown Small Diameter 2-24 Core

Technique Parameters

Type

O.D.

(mm)

Weight

(Kg/km)

Tensile strength

Long/short term

(N)

Crush

Long/short term

(N/100mm)
GCYFXTY-2B1.3 2.3 4 0.15G/0.5G 150/450
GCYFXTY -4B1.3 2.3 4 0.15G/0.5G 150/450
GCYFXTY -6B1.3 2.3 4 0.15G/0.5G 150/450
GCYFXTY- 8B1.3 2.3 4 0.15G/0.5G 150/450
GCYFXTY- 12B1.3 2.3 4 0.15G/0.5G 150/450
GCYFXTY- 24B1.3 2.7 6.5 0.15G/0.5G 150/450

Note:
1. Only a part of Tactical Fiber Optic Cables are listed in the table. Cables with other specifications can be inquired.
2. Cables can be supplied with a range of single mode or multimode fibers.
3. Specially designed Cable structure is available on request.

Application

• The cable can be used as the drop cable of distribution segments in FTTH networks and can be laid by air blowing to connect the branch point with the access point for subscribers. The cable is also applicable in backbone networks , metropolitan area networks and access networks


Temperature Rage:

• Transport/storage temperature: -20℃ to +70℃

Certificate

GCYFXTY Unitube Gel Free Cable Air Blown Small Diameter 2-24 Core

Our services
GCYFXTY Unitube Gel Free Cable Air Blown Small Diameter 2-24 Core
Our Certificate
Package and delivery
GCYFXTY Unitube Gel Free Cable Air Blown Small Diameter 2-24 Core
GCYFXTY Unitube Gel Free Cable Air Blown Small Diameter 2-24 Core
Package:
Standard Wooden Drum With Protection.
Standard reel length:2/3/4/5km/reel,other length is also available
Shipping
For the large order , we usually ship the cable by sea .
For small order , we can ship them by sea (LCL) or by air /by exress
(DHL,UPS,FEDE or TNT..) as your request .

1. Are you the real factory?

Yes,we are the real factory with 20 years’ history.

2. What is your fiber brand?

Fiber brands including :ZXOFC

3. What is your main products?

Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables; ADSS;

Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.

4. Product quality guarantee period?

25 years’ Guarantee for fiber optic cable

5. Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.

6. What is your delivery time?

Within 24 hours for 30KM normal kinds of fiber optic cable;

1 ~2 days for fiber optic patch cords with 10000 connectors.

7. MOQ: what is your minimum quantity?

MOQ for fiber optic cables: 1KM

There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.

8. Do you have distributor in other country or domestic?

Until now, we sell our products to customers directly. And factory price could be offered.

9. Payment

For large orders: T/T by advanced deposit

For small orders: T/T,Western Union and Paypal are acceptable.

10. Shipping & Delivery

For large orders: by sea (LCL or FCL)

For small orders: by sea (LCL), by air or by courier services,any of which is optional.
