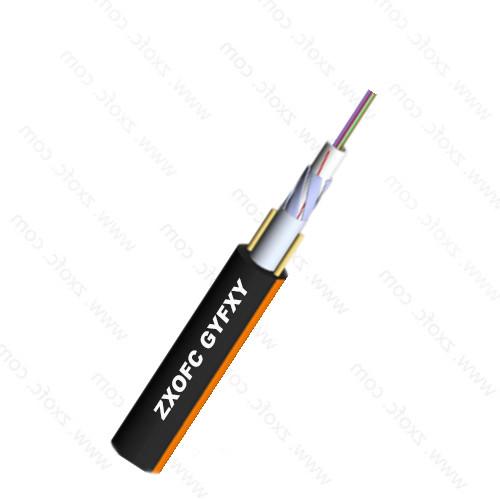

G652D SM Outside Unitube Fiber Optic Cable GYFXY Up To 24 Core Span 50m Full Dry
G652D SM Outside Unitube Fiber Optic Cable GYFXY Up To 24 Core Span 50m Full Dry
G652D SM Outside Unitube Fiber Optic Cable GYFXY Up To 24 Core Span 50m Full Dry
G652D SM Outside Unitube Fiber Optic Cable GYFXY Up To 24 Core Span 50m Full Dry
Specifications
Brand Name :
ZXOFC
Model Number :
ZXOFC-GYFXY
Certification :
CE/ROHS/ISO9001
Place of Origin :
ShenZhen,China
MOQ :
3000 meters
Price :
Negotiable
Payment Terms :
T/T, Western Union,Paypal,Credit card
Supply Ability :
10000KM per month
Delivery Time :
1-2 weeks according to the lengths
Packaging Details :
Plywood drum or Iron wooden drum or Fumigated wooden drum or Cardboard box (mainly for FTTH cable) Optional
Fiber type :
Singlemode,Multimode,om1,om2,om3
Amored :
FRP armored
Model number :
GYFXY
Fiber count :
2-288 core
Optical fiber :
Corning or YOFC
Outer Sheath material :
PE,HDPE,MDPE,LSZH
Application :
Aerial,direct buried,duct
Description

Full dry Uni-tube Optic Fiber Cable GYFXY Up to 24 core G652D SM Span 50m

Description

The cable consists of a single central gel filled uni-tube containing individually colour coded 250 μm buffered fibers. This tube is embedded in a
water blocking E-glass yarn, and over sheathed with PE/PVC/LSZH (Low Smoke Zero Halogen) outer jacket. The jacket is flame retardant, UV
stabilised and extremely resistant to the ingress of moisture.

A choice of multimode and single mode fiber types and specifications are offered with fiber counts from four to twenty four in the standard range.

Feature

• All-dry design improving efficiency of construction and splicing

• Light weight, easy for long distance installation

• Accurate process control ensuring good mechanical and temperature performances

• Excellent crush resistance and flexibility

• Applicable to duct and aerial installations

Cable Cross-section Diagram

G652D SM Outside Unitube Fiber Optic Cable GYFXY Up To 24 Core Span 50m Full Dry

Technique Parameters

Fiber Type G.652 G.655 50/125^m 62.5/125^m

Attenuation

(+20X)

 850 nm <3.0 dB/km <3.3 dB/km
1300 nm <1.0 dB/km <1.0 dB/km
1310 nm <0.36 dB/km <0.40 dB/km
1550 nm <0.22 dB/km <0.23 dB/km
Bandwidth 850 nm >500 MHz-km >200 Mhz-km
1300 nm >500 MHz-km >500 Mhz-km
Numerical Aperture 0.200±0.015 NA 0.275±0.015 NA
Cable Cut-off Wavelength cc <1260 nm <1450 nm

Fiber

Count

Nominal

Diameter

(mm)

Nominal

Weight

(kg/km)

Allowable Tensile Load

(N)

 Allowable Crush Resistance
(N/100mm)
Short Term Long Term Short Term Long Term
2~12 6.2 52 1000 400 1000 1000
14~24 7.0 64 1200 500 1000 1000

Note:
1. Only a part of Tactical Fiber Optic Cables are listed in the table. Cables with other specifications can be inquired.
2. Cables can be supplied with a range of single mode or multimode fibers.
3. Specially designed Cable structure is available on request.

Application

1.LAN Backbones

2.Networks with mixed indoor and outdoor cabling

3.Flooded duct

4.Premises distribution system

Temperature Rage:

• Transport/storage temperature: -20℃ to +70℃

Certificate

G652D SM Outside Unitube Fiber Optic Cable GYFXY Up To 24 Core Span 50m Full Dry

Our services
G652D SM Outside Unitube Fiber Optic Cable GYFXY Up To 24 Core Span 50m Full Dry
Our Certificate
Package and delivery
G652D SM Outside Unitube Fiber Optic Cable GYFXY Up To 24 Core Span 50m Full Dry
G652D SM Outside Unitube Fiber Optic Cable GYFXY Up To 24 Core Span 50m Full Dry
Package:
Standard Wooden Drum With Protection.
Standard reel length:2/3/4/5km/reel,other length is also available
Shipping
For the large order , we usually ship the cable by sea .
For small order , we can ship them by sea (LCL) or by air /by exress
(DHL,UPS,FEDE or TNT..) as your request .

1. Are you the real factory?

Yes,we are the real factory with 20 years’ history.

2. What is your fiber brand?

Fiber brands including :ZXOFC

3. What is your main products?

Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables; ADSS;

Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.

4. Product quality guarantee period?

25 years’ Guarantee for fiber optic cable

5. Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.

6. What is your delivery time?

Within 24 hours for 30KM normal kinds of fiber optic cable;

1 ~2 days for fiber optic patch cords with 10000 connectors.

7. MOQ: what is your minimum quantity?

MOQ for fiber optic cables: 1KM

There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.

8. Do you have distributor in other country or domestic?

Until now, we sell our products to customers directly. And factory price could be offered.

9. Payment

For large orders: T/T by advanced deposit

For small orders: T/T,Western Union and Paypal are acceptable.

10. Shipping & Delivery

For large orders: by sea (LCL or FCL)

For small orders: by sea (LCL), by air or by courier services,any of which is optional.
