Singlemode Undersea Optical Cable / Double Armored Fiber Optic Cable High Tensile
Singlemode Undersea Optical Cable / Double Armored Fiber Optic Cable High Tensile
Singlemode Undersea Optical Cable / Double Armored Fiber Optic Cable High Tensile
Singlemode Undersea Optical Cable / Double Armored Fiber Optic Cable High Tensile
Specifications
Brand Name :
ZXOFC
Model Number :
ZXOFC-GYTS33-72B1.3
Certification :
CE/ROHS/ISO9001
Place of Origin :
ShenZhen,China
MOQ :
3000 meters
Price :
Negotiable
Payment Terms :
T/T, Western Union,Paypal,Credit card
Supply Ability :
10000KM per month
Delivery Time :
1-2 weeks according to the lengths
Packaging Details :
Plywood drum or Iron wooden drum or Fumigated wooden drum or Cardboard box (mainly for FTTH cable) Optional
Fiber type :
Singlemode,Multimode,om1,om2,om3
Armored :
Steel tape armored
Model number :
GYTS33
Fiber count :
2-288 core
Optical fiber :
Corning or YOFC
Outer Sheath material :
PE,LSZH,PVC
Application :
Aerial,direct buried,duct
Description

Submarine GYTS33 Double Armored 6/12/24/48/96/144 Core Steady Underwater Cable

Description

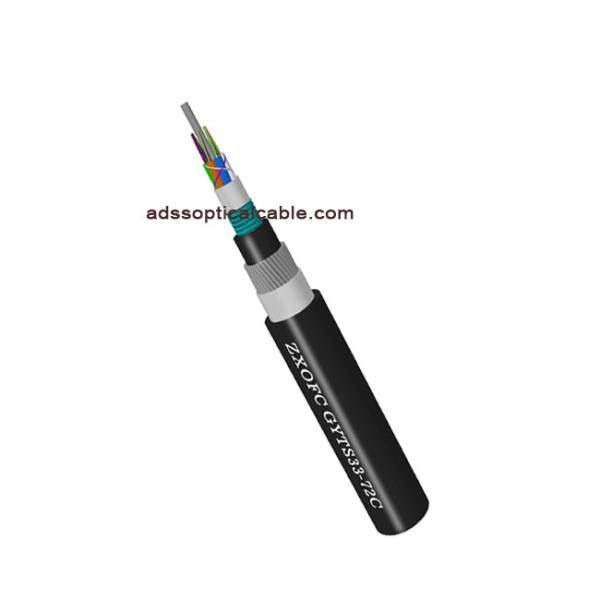

GYTS33 cable is an outdoor communication optical cable of metallic strength member of the loose tube jelly-filled structure, with Al-polyethylene laminated sheath and single-layer thin round steel wire armored polyethylene outer sheath.

The loose tubes are made of high modulus plastics (PBT) and filled withwater resistant filling gel. Loose tubes are stranded around the metallic central strength member, cable core is filled with cable filling compound.The corrugated aluminum tape is longitudinally applied over the cable core,and combined with polyethylene (PE) inner sheath. Galvanized steel wires are stranded around inner sheath, and then extruded with PE outer sheath.

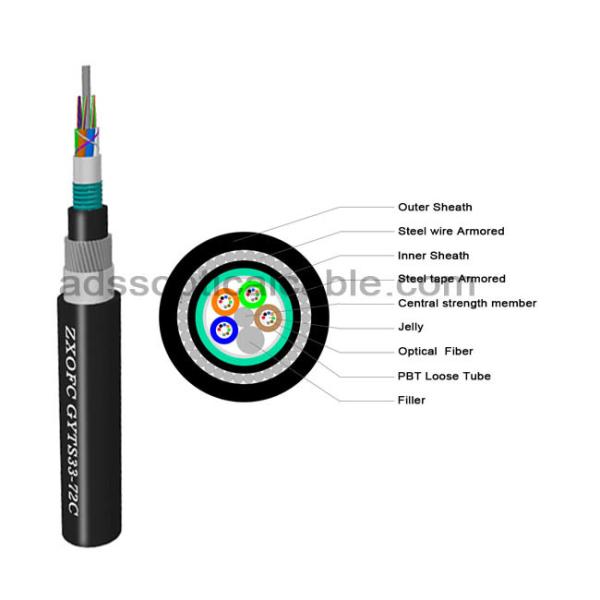

Cable Cross-section diagram

Singlemode Undersea Optical Cable / Double Armored Fiber Optic Cable High Tensile

Feature

  • High quality optical fiber provides good transmission performance
  • Accurate fiber excess length control ensures excellent mechanical and temperature performance
  • Special filling gel filled loose tubes provide perfect optical fiber protection
  • All section water blocking ensure the cable core reliable performance of moisture-proof and water block
  • Corrosion resistance phosphated steel wire with high Young's modulus as central strength member givesdesirable tensile strength
  • Longitudinally Armor with both side coated aluminum tape and stranded steel wires armoring meet therequirements of high crush resistance, tensile strength, bulletproof property, heavy duty direct buryunderwater installation
  • Strict craft and raw material control enable lifespan over 30 years

Application:

  • Applications:Long-distance communication and indoor communication
  • Way of laying: Direct burial, underwater laying
  • Operating temperature: -40 ~ + 70 °C
  • Bend radius: static 15x cable diameter

Technique Parameters

Fiber count / 24
Fiber type / G652D
CSM Material mm Steel wire
size 1.4±0.05
Loose tube material mm PBT
diameter 1.72±0.05
thickness 0.30±0.03
fiber/tube 6
color Blue/orange/green/brown
Filler rope material mm PP
diameter 1.7±0.05
number 1
Inner armored material Corrugated steel tape
thickness 0.2
Inner sheath material mm MDPE
thickness 1.4
Outer sheath material mm MDPE
thickness 1.9
Cable diameter mm 15.8±0.2
Cable weight kg/km 430

Note:
1. Only a part of Tactical Fiber Optic Cables are listed in the table. Cables with other specifications can be inquired.
2. Cables can be supplied with a range of single mode or multimode fibers.
3. Specially designed Cable structure is available on request.


Temperature Rage:

Operating :-20℃ to 60℃

Storage :-20℃ to 60℃

Standards:

YD/T 901-2009 Outdoor layer stranded optical cable for telecommunications


Certificate

Singlemode Undersea Optical Cable / Double Armored Fiber Optic Cable High Tensile

Our services
Singlemode Undersea Optical Cable / Double Armored Fiber Optic Cable High Tensile
Our Certificate
Package and delivery
Singlemode Undersea Optical Cable / Double Armored Fiber Optic Cable High Tensile
Singlemode Undersea Optical Cable / Double Armored Fiber Optic Cable High Tensile
Package:
Standard Wooden Drum With Protection.
Standard reel length:2/3/4/5km/reel,other length is also available
Shipping
For the large order , we usually ship the cable by sea .
For small order , we can ship them by sea (LCL) or by air /by exress
(DHL,UPS,FEDE or TNT..) as your request .

1. Are you the real factory?

Yes,we are the real factory with 20 years’ history.

2. What is your fiber brand?

Fiber brands including :ZXOFC

3. What is your main products?

Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables; ADSS;

Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.

4. Product quality guarantee period?

25 years’ Guarantee for fiber optic cable

5. Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.

6. What is your delivery time?

Within 24 hours for 30KM normal kinds of fiber optic cable;

1 ~2 days for fiber optic patch cords with 10000 connectors.

7. MOQ: what is your minimum quantity?

MOQ for fiber optic cables: 1KM

There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.

8. Do you have distributor in other country or domestic?

Until now, we sell our products to customers directly. And factory price could be offered.

9. Payment

For large orders: T/T by advanced deposit

For small orders: T/T,Western Union and Paypal are acceptable.

10. Shipping & Delivery

For large orders: by sea (LCL or FCL)

For small orders: by sea (LCL), by air or by courier services,any of which is optional.
