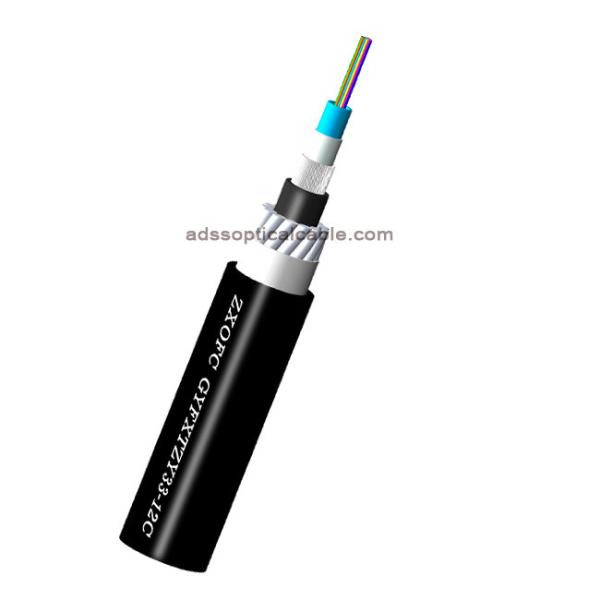

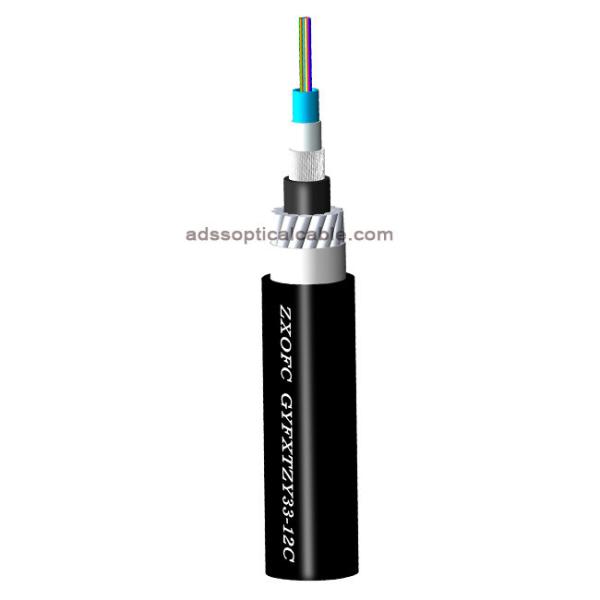

Armored Submarine Fiber Optic Cable , Unitube Non Metallic Sheathed Cable
Armored Submarine Fiber Optic Cable , Unitube Non Metallic Sheathed Cable
Armored Submarine Fiber Optic Cable , Unitube Non Metallic Sheathed Cable
Armored Submarine Fiber Optic Cable , Unitube Non Metallic Sheathed Cable
Specifications
Brand Name :
ZXOFC
Model Number :
ZXOFC-GYFXTZY33
Certification :
CE/ROHS/ISO9001
Place of Origin :
ShenZhen,China
MOQ :
3000 meters
Price :
Negotiable
Payment Terms :
T/T, Western Union,Paypal,Credit card
Supply Ability :
10000KM per month
Delivery Time :
1-2 weeks according to the lengths
Packaging Details :
Plywood drum or Iron wooden drum or Fumigated wooden drum or Cardboard box (mainly for FTTH cable) Optional
Application :
Aerial,direct buried,duct
Fiber type :
Singlemode,Multimode,om1,om2,om3
Armored :
Steel tape armored
Model number :
GYFXTZY33
Fiber count :
2-288 core
Optical fiber :
Corning or YOFC
Outer Sheath material :
PE,LSZH,PVC
Description

GYFXTZY33 Uni-tube Non-metallic Steel Wire Armored underwater/Submarine Fiber Optic Cable

Description

GYFXTZY33 optic fiber in Non-metal Central loose Tube and filled with jelly, suitable for aerial applications, GYFXTY have two parallel FRP

ensure tensile strength and fully Lightning-Proof. Fiber-Mart provides GYFXTY from 4 fiber cores to 12 fiber cores. Both single mode type and

multimode types are available. We also provide customized service such as fiber number, fiber color and cable length, etc.

Cable Cross-section diagram

Armored Submarine Fiber Optic Cable , Unitube Non Metallic Sheathed Cable

Feature

1. Good mechanical and temperature performance

2. High strength loose tube that is hydrolysis resistant

3. Special tube filling compound ensure a critical protection of fiber

4. Crush resistance and flexibility

5. The following measures are taken to ensure the cable waterlight:

a. Single Fiber Reinforced Plastics as the central strength member

b. Loose tube filling compound

c.100% cable core filling

d. PSP enhancing moisture-proof

e. Water-blocking material

Application:

  • Applications:Long-distance communication and indoor communication
  • Way of laying: Direct burial, underwater laying
  • Operating temperature: -40 ~ + 70 °C
  • Bend radius: static 15x cable diameter

Technique Parameters

Fiber count / 24
Fiber type / G652D
CSM Material mm Steel wire
size 1.4±0.05
Loose tube material mm PBT
diameter 1.72±0.05
thickness 0.30±0.03
fiber/tube 6
color Blue/orange/green/brown
Filler rope material mm PP
diameter 1.7±0.05
number 1
Inner armored material Corrugated steel tape
thickness 0.2
Inner sheath material mm MDPE
thickness 1.4
Outer sheath material mm MDPE
thickness 1.9
Cable diameter mm 15.8±0.2
Cable weight kg/km 430

Note:
1. Only a part of Tactical Fiber Optic Cables are listed in the table. Cables with other specifications can be inquired.
2. Cables can be supplied with a range of single mode or multimode fibers.
3. Specially designed Cable structure is available on request.


Temperature Rage:

Operating :-20℃ to 60℃

Storage :-20℃ to 60℃

Standards:

Standards: Comply with Standard YD/T 901-2009 as well as IEC 60794-1.


Certificate

Armored Submarine Fiber Optic Cable , Unitube Non Metallic Sheathed Cable

Our services
Armored Submarine Fiber Optic Cable , Unitube Non Metallic Sheathed Cable
Our Certificate
Package and delivery
Armored Submarine Fiber Optic Cable , Unitube Non Metallic Sheathed Cable
Armored Submarine Fiber Optic Cable , Unitube Non Metallic Sheathed Cable
Package:
Standard Wooden Drum With Protection.
Standard reel length:2/3/4/5km/reel,other length is also available
Shipping
For the large order , we usually ship the cable by sea .
For small order , we can ship them by sea (LCL) or by air /by exress
(DHL,UPS,FEDE or TNT..) as your request .

1. Are you the real factory?

Yes,we are the real factory with 20 years’ history.

2. What is your fiber brand?

Fiber brands including :ZXOFC

3. What is your main products?

Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables; ADSS;

Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.

4. Product quality guarantee period?

25 years’ Guarantee for fiber optic cable

5. Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.

6. What is your delivery time?

Within 24 hours for 30KM normal kinds of fiber optic cable;

1 ~2 days for fiber optic patch cords with 10000 connectors.

7. MOQ: what is your minimum quantity?

MOQ for fiber optic cables: 1KM

There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.

8. Do you have distributor in other country or domestic?

Until now, we sell our products to customers directly. And factory price could be offered.

9. Payment

For large orders: T/T by advanced deposit

For small orders: T/T,Western Union and Paypal are acceptable.

10. Shipping & Delivery

For large orders: by sea (LCL or FCL)

For small orders: by sea (LCL), by air or by courier services,any of which is optional.
