GYFY Strengthen Frp Fiber Optic Cable All Dielectric Full Dry 2-288 Core
GYFY Strengthen Frp Fiber Optic Cable All Dielectric Full Dry 2-288 Core
GYFY Strengthen Frp Fiber Optic Cable All Dielectric Full Dry 2-288 Core
GYFY Strengthen Frp Fiber Optic Cable All Dielectric Full Dry 2-288 Core
GYFY Strengthen Frp Fiber Optic Cable All Dielectric Full Dry 2-288 Core
GYFY Strengthen Frp Fiber Optic Cable All Dielectric Full Dry 2-288 Core
GYFY Strengthen Frp Fiber Optic Cable All Dielectric Full Dry 2-288 Core
GYFY Strengthen Frp Fiber Optic Cable All Dielectric Full Dry 2-288 Core
Specifications
Brand Name :
ZXOFC
Model Number :
ZXOFC-GYFTY
Certification :
CE,ISO9001,ROSH
Place of Origin :
ShenZhen,China
MOQ :
5KM
Price :
Negotiable
Payment Terms :
T/T, Western Union,Paypal,Credit card
Supply Ability :
10000KM per month
Delivery Time :
1-2 weeks according to the lengths
Packaging Details :
Plywood drum or Iron wooden drum or Fumigated wooden drum or Cardboard box (mainly for FTTH cable) Optional
Outer Sheath material :
PE,LSZH
Package :
2/3/4KM per Roll
Model number :
GYFY
Fiber count :
144 core
Structure :
Stranded Loose tube
Central strength Member :
FRP
Application :
Aerial,direct buried,duct
Material :
PE,LSZH
Description

Full Dry 2-288 Core GYFY All Dielectric FRP Strengthen Optical Fiber Cable

Description


GYFY is all dielectric, gel-free cable for aerial and duct. GYFY is from 2-count to 288-count suitable for a variety of system configurations.

Features

The loose tube is made of PBT, freeing the fiber from environmental hazards to ensure a high transmission reliability and quality.

Gel-free indicates there are water-blocking yarns in the loose tubes and water-blocking tape under the armored layer, meaning no mess or cleanup.

In addition, all dielectric cable contains no metal; therefore, no grounding is required.

The jacket is rugged and durable medium density polyethylene.

Standards:

YD/T 901-2009 Outdoor layer stranded optical cable for telecommunications

Technique Parameters

Fiber Count Structure Diameter Weight Tensile(N) Crush(N) Bending Radius(mm)
(mm) (kg/km) Long Short Long Short Static Dynamic
term term term term
2-30 1+6 10. 7 90 1000 3000 300 1000 10D 20D
32-36 1+6 10. 7 91 1000 3000 300 1000 10D 20D
38-60 1+6 11. 4 101 1000 3000 300 1000 10D 20D
62-72 1+6 11. 4 102 1000 3000 300 1000 10D 20D
74-84 1+7 12.1 119 1000 3000 300 1000 10D 20D
86-96 1+8 12.9 130 1000 3000 300 1000 10D 20D
98-108 1+9 13.6 146 1000 3000 300 1000 10D 20D
110-120 1+10 14.3 159 1000 3000 300 1000 10D 20D
122-132 1+11 15. 0 178 1000 3000 300 1000 10D 20D
134-144 1+12 15. 7 193 1000 3000 300 1000 10D 20D

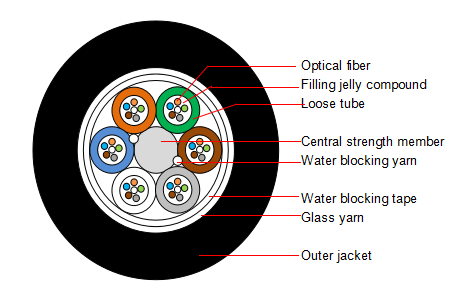

Cable Cross-section diagram

GYFY Strengthen Frp Fiber Optic Cable All Dielectric Full Dry 2-288 Core

Certificate

GYFY Strengthen Frp Fiber Optic Cable All Dielectric Full Dry 2-288 Core

Applications:

Long distance and local area network(LAN) communication.
Aerial & conduit/duct application.

Features:

Low dispersion and attenuation
Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental properties
With good anti-electromagnetism ability
With small cable diameter, light cable weight, easily to lay
Operating Temperature : -40 ~ +60℃

Our services
GYFY Strengthen Frp Fiber Optic Cable All Dielectric Full Dry 2-288 Core
Our Certificate
Package and delivery
GYFY Strengthen Frp Fiber Optic Cable All Dielectric Full Dry 2-288 Core
GYFY Strengthen Frp Fiber Optic Cable All Dielectric Full Dry 2-288 Core
Package:
Standard Wooden Drum With Protection.
Standard reel length:2/3/4/5km/reel,other length is also available
Shipping
For the large order , we usually ship the cable by sea .
For small order , we can ship them by sea (LCL) or by air /by exress
(DHL,UPS,FEDE or TNT..) as your request .
FAQ

1. Are you the real factory?

Yes,we are the real factory with 20 years’ history.

2. What is your fiber brand?

Fiber brands including :ZXOFC

3. What is your main products?

Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables; ADSS;

Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.

4. Product quality guarantee period?

25 years’ Guarantee for fiber optic cable

5. Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.

6. What is your delivery time?

Within 24 hours for 30KM normal kinds of fiber optic cable;

1 ~2 days for fiber optic patch cords with 10000 connectors.

7. MOQ: what is your minimum quantity?

MOQ for fiber optic cables: 1KM

There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.

8. Do you have distributor in other country or domestic?

Until now, we sell our products to customers directly. And factory price could be offered.

9. Payment

For large orders: T/T by advanced deposit

For small orders: T/T,Western Union and Paypal are acceptable.

10. Shipping & Delivery

For large orders: by sea (LCL or FCL)

For small orders: by sea (LCL), by air or by courier services,any of which is optional.
