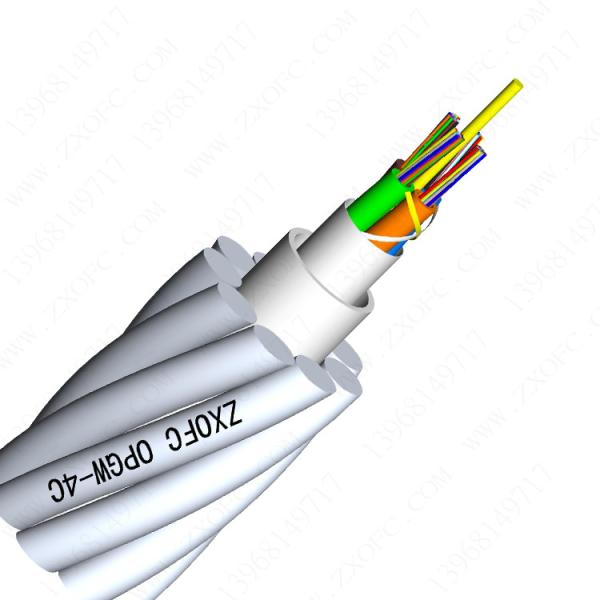

Power Station OPGW Fiber Cable Composite Overhead Ground Wire Uni - Tube
Power Station OPGW Fiber Cable Composite Overhead Ground Wire Uni - Tube
Power Station OPGW Fiber Cable Composite Overhead Ground Wire Uni - Tube
Power Station OPGW Fiber Cable Composite Overhead Ground Wire Uni - Tube
Specifications
Brand Name :
ZXOFC
Model Number :
ZXOFC-OPGW
Certification :
CE/ROHS/ISO9001
Place of Origin :
ShenZhen,China
MOQ :
5000 meters
Price :
Negotiable
Payment Terms :
T/T, Western Union,Paypal,Credit card
Supply Ability :
10000KM per month
Delivery Time :
1-2 weeks according to the lengths
Packaging Details :
Plywood drum or Iron wooden drum or Fumigated wooden drum or Cardboard box (mainly for FTTH cable) Optional
Model number :
OPGW
Fiber type :
Singlemode,Multimode,om1,om2,om3
Fiber count :
2-24 core
Optical fiber :
Corning or YOFC
Outer Sheath material :
PE,HDPE,MDPE,LSZH
Customized :
Acceptable
Application :
Aerial,direct buried,duct
Description

Optical Fibre Composite Overhead Ground Wire (Uni-tube)

Description

Optical fibre composite overhead ground wire (OPGW) is an overhead ground wire containing optical fibre. It has multiple functions such as

overhead ground wire and optical communication. It is mainly used for communication lines of 110KV, 220KV, 500KV, 750KV and new overhead

high-voltage transmission system. It can also be used to replace the existing ground lines of the old overhead high voltage transmission system,

add the optical communication line, transmit short time current and provide anti lightning protection. Other structures can be customized on

request.

Feature

  • Stainless steel tubes filled with hydrophobic gel provide the protection and support of the optical fibres
  • Good tensile performance
  • Small diameter, light weight, low additional load to the tower
  • Appropriate fibre excess length of optical unit easliy to make

Technique Parameters

Attenuation Bandwidth Polarization Mode Dispersion

@850nm

@1300nm

@1310nm

@1550nm

@850nm

@1300nm

 Individual Fibre Design Link Value (M=20, Q=0.01%)
G652D — — ≤0.35dB/km ≤0.21dB/km — — ≤0.20ps/ km ≤0.1ps/ km
G655 — — — ≤0.22dB/km — — ≤0.20ps/ km ≤0.1ps/ km
50/125μm ≤3.0dB/km ≤1.0dB/km — — ≥600MHz.km ≥1200MHz.km — —
62.5/125μm ≤3.5dB/km ≤1.0dB/km — — ≥200MHz.km ≥600MHz.km — —

Classification Material Value

Construction

 Optical Fibre G652D/G655 etc. 2 - 48
Protection Tube Stainless steel tube 1.5 - 6mm
Stranded Line AS wire/AA wire/Al Rod 1.5 - 6mm
Max. Diameter 18mm
Max. Cross Section 200mm2

Characteristic

 According to the standards as DL/T 832, IEC60794-4-10, IEEE1138
Max. Tensile Strength (RTS ) (kN) 280
Max. Crush Strength(N/100mm) 2200
Max. Short Current Capacity (40℃-200℃)(kA2s) 100
Min. Bending Radius (Dynamic) 20D
Min. Bending Radius (Static) 15D
Environment Performance Installation (℃) -10 to +50
Transportation and Operation (℃) -40 to +65

Note:
1. Only a part of Tactical Fiber Optic Cables are listed in the table. Cables with other specifications can be inquired.
2. Cables can be supplied with a range of single mode or multimode fibers.
3. Specially designed Cable structure is available on request.

Temperature Rage:

• Transport/storage temperature: -20℃ to +70℃

Certificate

Power Station OPGW Fiber Cable Composite Overhead Ground Wire Uni - Tube

Our services
Power Station OPGW Fiber Cable Composite Overhead Ground Wire Uni - Tube
Our Certificate
Package and delivery
Power Station OPGW Fiber Cable Composite Overhead Ground Wire Uni - Tube
Power Station OPGW Fiber Cable Composite Overhead Ground Wire Uni - Tube
Package:
Standard Wooden Drum With Protection.
Standard reel length:2/3/4/5km/reel,other length is also available
Shipping
For the large order , we usually ship the cable by sea .
For small order , we can ship them by sea (LCL) or by air /by exress
(DHL,UPS,FEDE or TNT..) as your request .

1. Are you the real factory?

Yes,we are the real factory with 20 years’ history.

2. What is your fiber brand?

Fiber brands including :ZXOFC

3. What is your main products?

Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables; ADSS;

Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.

4. Product quality guarantee period?

25 years’ Guarantee for fiber optic cable

5. Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.

6. What is your delivery time?

Within 24 hours for 30KM normal kinds of fiber optic cable;

1 ~2 days for fiber optic patch cords with 10000 connectors.

7. MOQ: what is your minimum quantity?

MOQ for fiber optic cables: 1KM

There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.

8. Do you have distributor in other country or domestic?

Until now, we sell our products to customers directly. And factory price could be offered.

9. Payment

For large orders: T/T by advanced deposit

For small orders: T/T,Western Union and Paypal are acceptable.

10. Shipping & Delivery

For large orders: by sea (LCL or FCL)

For small orders: by sea (LCL), by air or by courier services,any of which is optional.
