2-144 Core Underwater Fiber Optic Cable , Single Mode Undersea Optical Cable
2-144 Core Underwater Fiber Optic Cable , Single Mode Undersea Optical Cable
2-144 Core Underwater Fiber Optic Cable , Single Mode Undersea Optical Cable
2-144 Core Underwater Fiber Optic Cable , Single Mode Undersea Optical Cable
2-144 Core Underwater Fiber Optic Cable , Single Mode Undersea Optical Cable
2-144 Core Underwater Fiber Optic Cable , Single Mode Undersea Optical Cable
2-144 Core Underwater Fiber Optic Cable , Single Mode Undersea Optical Cable
2-144 Core Underwater Fiber Optic Cable , Single Mode Undersea Optical Cable
Specifications
Brand Name :
ZXOFC
Model Number :
ZXOFC-GYTA333
Certification :
CE,ISO9001,ROSH
Place of Origin :
ShenZhen,China
MOQ :
5KM
Price :
Negotiable
Payment Terms :
T/T, Western Union,Paypal,Credit card
Supply Ability :
10000KM per month
Delivery Time :
1-2 weeks according to the lengths
Packaging Details :
Plywood drum or Iron wooden drum or Fumigated wooden drum or Cardboard box (mainly for FTTH cable) Optional
Loose tube :
PBT
Application :
Submarine or Underwater
Life :
25-30 years
Outer sheath :
HDPE Black jacket
Fiber count :
2-144 core
Fiber type :
G652D,(G657 optional)
Storage temperature :
-40-70℃
Customized :
Acceptable
Description

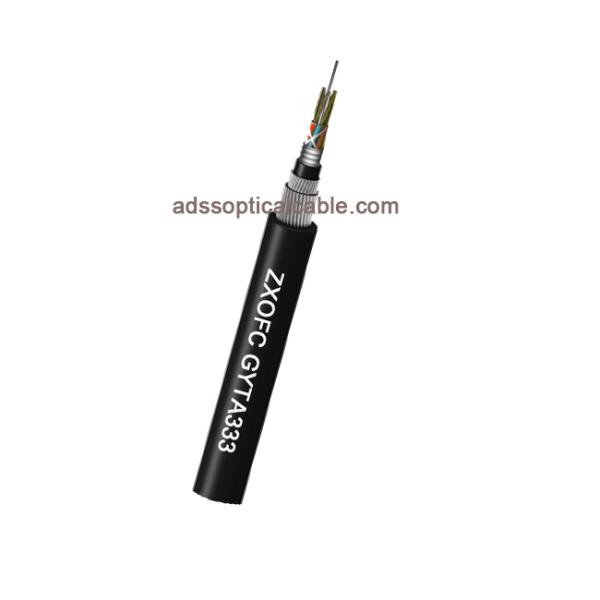

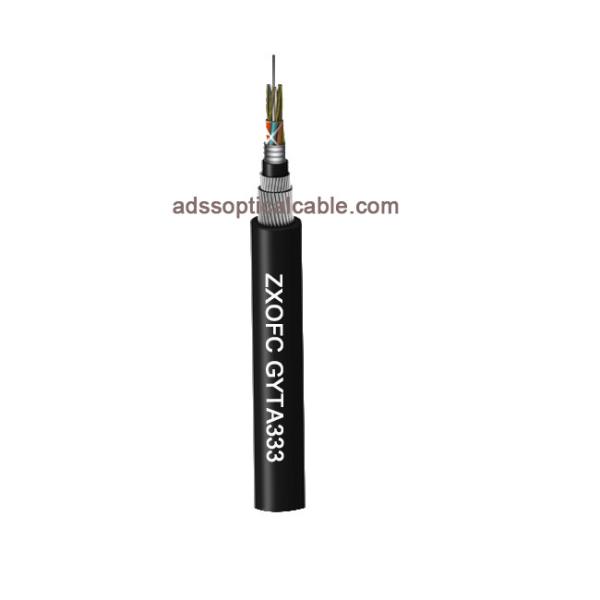

ZXOFC Brand 2-144 Cores Single Mode Submarine Fiber Optic Cable GYTA333

Description


GYTA333 fiber optic cable is the type of fiber optic cable used in shallow-water as well as climbing lay. In other words, GYTA333 fiber optic cable

is referred as an underwater cable since is used under water. In most cases, the GYTA333 fiber optic cable is laid in the water drainage and it

has fantastic feature that enables it to perform effectively under water environments.Additionally, GYTA333 fiber optic cable has a humidity

resistance as well as excellent mechanical property that prevents it from breaking. Also, it is rodent-proof as well as termite-proof and that makes

it adapt well to watery environment.


Features

The under-water optical cables are used in the shallow-water, and climbing lay.

The drainage optical cable is suitable for laying in the drainage optical cable is suitable for laying in the drainage duct.

They not only have excellent mechanical property and humidity resistance, but have chemical property and the function of rodent-proof and termite-proof as well.

The structure of this optical cable is not complicated, the low total cost provides every telecom operators a new solution.

Operating Temperature:-40℃~﹢70℃

Application


Under-water optical cable is another structure which is different from undersea optical cable.

It is applicable for the installation in the seacoast and shallow water.

It doesn't need the junction, and can be used for the wiring under the water with shorter communication distance (for example: For is lands and the coastal cities).

This cable is different from the environment of the undersea optical cable, it doesn't need plenty of fiber.

Comparing to the undersea optical cable, the under-water optical cable is simple structured, low cost, easy installed and transported.

It is also easy to be repaired and maintained.

Parameters
Fiber Count Structure

Diameter
(mm)

Weight
(kg/km)

 Tensile(N) Crush(N) Bending Radius(mm)

Long
term

Short
term

Long
term

Short
term

 Static Dynamic
2-30 1+5 14.6 462 20000 40000 4000 6000 15D 30D
32-36 1+6 15. 0 486 20000 40000 4000 6000 15D 30D
38-60 1+5 15. 7 533 20000 40000 4000 6000 15D 30D
62-72 1+6 16. 0 553 20000 40000 4000 6000 15D 30D
74-84 1+7 16. 9 598 20000 40000 4000 6000 15D 30D
86-96 1+8 17. 6 633 20000 40000 4000 6000 15D 30D
98-108 1+9 18. 6 732 20000 40000 4000 6000 15D 30D
110-120 1+10 19. 2 766 20000 40000 4000 6000 15D 30D
122-132 1+11 20. 7 953 20000 40000 4000 6000 15D 30D
134-144 1+12 21. 3 996 20000 40000 4000 6000 15D 30D
146-216 1+6+12 20. 2 799 20000 40000 4000 6000 15D 30D
218-288 1+9+15 22.3 932 20000 40000 4000 6000 15D 30D
Cable Cross-section diagram
2-144 Core Underwater Fiber Optic Cable , Single Mode Undersea Optical Cable

Standards:

YD/T 901-2009 Outdoor layer stranded optical cable for telecommunications.

Certificate

2-144 Core Underwater Fiber Optic Cable , Single Mode Undersea Optical Cable

Our services
2-144 Core Underwater Fiber Optic Cable , Single Mode Undersea Optical Cable
Package and delivery
2-144 Core Underwater Fiber Optic Cable , Single Mode Undersea Optical Cable
2-144 Core Underwater Fiber Optic Cable , Single Mode Undersea Optical Cable
Package:
Standard Wooden Drum With Protection.
Standard reel length:2/3/4/5km/reel,other length is also available
Shipping
For the large order , we usually ship the cable by sea .
For small order, we can ship them by sea (LCL) or by air /by exress
(DHL,UPS,FEDE or TNT..) as your request .
FAQ

1. Are you the real factory?

Yes,we are the real factory with 20 years’ history.
2. What is your fiber brand?

Fiber brands including :ZXOFC
3. What is your main products?

Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables; ADSS;

Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.
4. Product quality guarantee period?

25 years’ Guarantee for fiber optic cable
5. Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.
6. What is your delivery time?

Within 24 hours for 30KM normal kinds of fiber optic cable;

1 ~2 days for fiber optic patch cords with 10000 connectors.
7. MOQ: what is your minimum quantity?

MOQ for fiber optic cables: 1KM

There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.
8. Do you have distributor in other country or domestic?

Until now, we sell our products to customers directly. And factory price could be offered.
9. Payment

For large orders: T/T by advanced deposit

For small orders: T/T,Western Union and Paypal are acceptable.
10. Shipping & Delivery

For large orders: by sea (LCL or FCL)

For small orders: by sea (LCL), by air or by courier services,any of which is optional.
