12 Core Aerial Figure 8 GYFTC8Y Self-supporting Optical Cable With Steel Wire Messenger
12 Core Aerial Figure 8 GYFTC8Y Self-supporting Optical Cable With Steel Wire Messenger
12 Core Aerial Figure 8 GYFTC8Y Self-supporting Optical Cable With Steel Wire Messenger
12 Core Aerial Figure 8 GYFTC8Y Self-supporting Optical Cable With Steel Wire Messenger
12 Core Aerial Figure 8 GYFTC8Y Self-supporting Optical Cable With Steel Wire Messenger
12 Core Aerial Figure 8 GYFTC8Y Self-supporting Optical Cable With Steel Wire Messenger
12 Core Aerial Figure 8 GYFTC8Y Self-supporting Optical Cable With Steel Wire Messenger
12 Core Aerial Figure 8 GYFTC8Y Self-supporting Optical Cable With Steel Wire Messenger
12 Core Aerial Figure 8 GYFTC8Y Self-supporting Optical Cable With Steel Wire Messenger
12 Core Aerial Figure 8 GYFTC8Y Self-supporting Optical Cable With Steel Wire Messenger
12 Core Aerial Figure 8 GYFTC8Y Self-supporting Optical Cable With Steel Wire Messenger
12 Core Aerial Figure 8 GYFTC8Y Self-supporting Optical Cable With Steel Wire Messenger
Specifications
Brand Name :
ZXOFC
Model Number :
ZXOFC-GYFTC8A
Certification :
CE,ISO9001,ROSH
Place of Origin :
ShenZhen, China
MOQ :
2KM
Price :
Negotiable
Payment Terms :
T/T, Western Union,Paypal,Credit card
Supply Ability :
3000KM per month
Delivery Time :
1-2 weeks according to the lengths
Packaging Details :
Plywood drum or Iron wooden drum or Fumigated wooden drum or Cardboard box (mainly for FTTH cable) Optional
Model Number: :
Aluminum tape armoured fiber optical cable GYFTC8A
Fiber: :
G652D G655 Single mode or as request
Application: :
Long distance/LAN communication/Outdoor communication
Fiber Count :
2-288 core
Packing: :
2km/wooden drum or as request
Package: :
Plywood Reel/customized
Jacket Material: :
PE PVC LSZH HDPE
Description

144 Core Figure 8 Cable Non-Metallic Strength Member Single Mode Fiber Optic Cable GYFTC8Y 1KM Price

Description

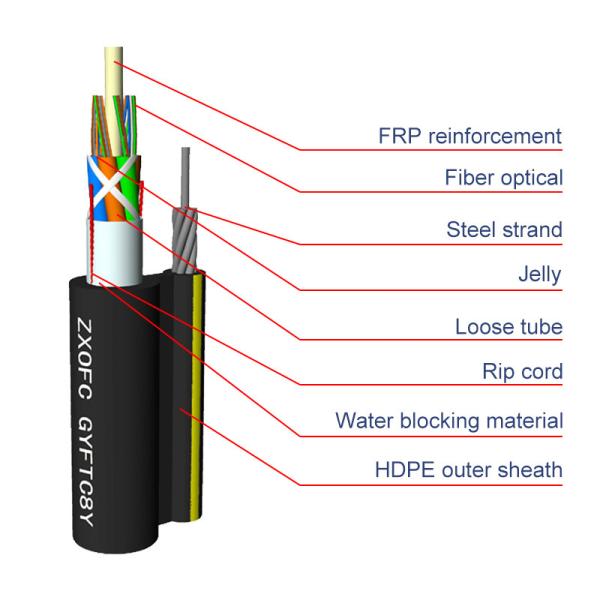

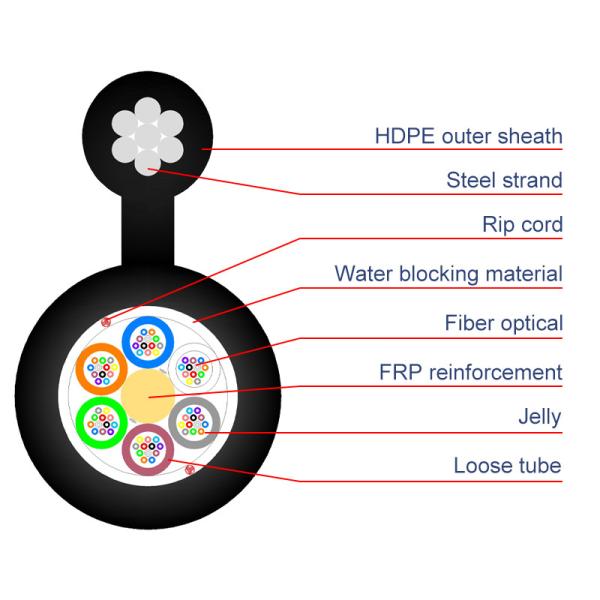

1.The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic.

2.The tubes are filled with water-resistant filling compound.

3.A FRP locates in the center of core as a reinforce strength member.

4.The tubes are stranded around the strength member into a compact and circular cable core.

5.This part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene (PE) sheath to be figure 8

structure.

Features

1. Small cable diameter, cross section shows figure 8

2.Self-supporting stranded wires, easily to install

3. Low dispersion and attenuation

4. Excellent mechanical and environmental performance

5. Water blocking system to improve the water-proof ability

6. Steel-wire strength member ensures tensile strength

7. Corrugated steel tape armored and PE outer sheath improve crush resistance

8. Outdoor aerial application

9. Used for long-haul communication Used for LAN communication,Subscriber network systems,Junction communication

systems,CATV & Computer networks system

Optical Fibre Performance

Type Attenuation(+20℃) Bandwidth Numerical aperture
@850nm @1300nm @1310nm @1550nm @850nm @1300nm
G.652 --- --- ≤0.36dB/km ≤0.22dB/km --- --- ---
G.655 --- --- ≤0.40dB/km ≤0.23dB/km --- --- ---
50/125µm ≤3.3dB/km ≤1.2dB/km --- --- ≥500MHz·km ≥500MHz·km 0.200±0.015 NA
62.5/125µm ≤3.5dB/km ≤1.2dB/km --- --- ≥200MHz·km ≥500MHz·km 0.275±0.015 NA

Specifications:

Fiber

Count

Nominal

Diameter

(mm)

Nominal

Weight

(kg/km)

 Max Fiber
Per Tube		 Max No. of
(Tubes+fillers)

Allowable Tensile Load

(N)

 Allowable Crush Resistance
(N/100mm)
Short Term Long Term Short Term Long Term
2~30 9.4X17.4 180 6 5 4000 2000 1000 300
32~36 10.0X18.0 180 6 6 4000 2000 1000 300
38~60 10.6X18.6 180 12 5 4000 2000 1000 300
62~72 10.9X19.0 215 12 6 4000 2000 1000 300
>72 Available upon customer's request

Package & Delivery

Packaging Details:

Carton box,Wooden reel,2/3/4/5 Km/drum

Inter packing: wooden reel,plastic reel or paper reel

Outer packing: carton box,pull out box


Sheath mark:

The following printing(white hot foil indentation)is applied at 1meter intervals.

a. Supplier: ZXOFC or as customer required;

b. Standard Code(Product Type, Fiber Type,Fiber Count);

c. Year of manufacture: 14 years;

d. Length marking in meters.

Port:

Hongkong/Shenzhen

Lead Time:
Quantity(KM) 1~50 50~100 100~300 ≥300
Est.Time(Days) Within 7 days 5-10 days 7-15 days To be Negotiated!

Factory Shows:

12 Core Aerial Figure 8 GYFTC8Y Self-supporting Optical Cable With Steel Wire Messenger12 Core Aerial Figure 8 GYFTC8Y Self-supporting Optical Cable With Steel Wire Messenger12 Core Aerial Figure 8 GYFTC8Y Self-supporting Optical Cable With Steel Wire Messenger12 Core Aerial Figure 8 GYFTC8Y Self-supporting Optical Cable With Steel Wire Messenger12 Core Aerial Figure 8 GYFTC8Y Self-supporting Optical Cable With Steel Wire Messenger12 Core Aerial Figure 8 GYFTC8Y Self-supporting Optical Cable With Steel Wire Messenger

FAQ

1. Are you the real factory?

Yes,we are the real factory with 20 years’ history.

2. What is your fiber brand?

Fiber brands including :ZXOFC

3. What is your main products?

Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables; ADSS;

Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.

4. Product quality guarantee period?

25 years’ Guarantee for fiber optic cable

5. Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.

6. What is your delivery time?

Within 24 hours for 30KM normal kinds of fiber optic cable;

1 ~2 days for fiber optic patch cords with 10000 connectors.

7. MOQ: what is your minimum quantity?

MOQ for fiber optic cables: 1KM

There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.

8. Do you have distributor in other country or domestic?

Until now, we sell our products to customers directly. And factory price could be offered.

9. Payment

For large orders: T/T by advanced deposit

For small orders: T/T,Western Union and Paypal are acceptable.

10. Shipping & Delivery

For large orders: by sea (LCL or FCL)

For small orders: by sea (LCL), by air or by courier services,any of which is optional.
