Specifications
Brand Name :
Lecede
Model Number :
p8
Certification :
CE ROHS FCC UL ETL
Place of Origin :
Shenzhen China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 ㎡/month
Delivery Time :
15~30 days after deposit
Packaging Details :
Wooden case packing, flight case packing , honeycomb case
LED Lights :
SMD 3535
Pixel Resolution :
15625pixel/㎡
Pixel Pitch :
8mm
Module Dimension(W*H) :
320×160mm
Cabinet Dimension(W*H) :
960×960mm
Scan :
1/3s
Refresh Rate :
1920Hz
Cabinet Material :
Waterproof Aluminum
Warranty :
2 years
Product name :
Lecede P8 Stadium LED Display
Description

Outdoor high resolution full color led screen P8 stadium advertising led display video wall panel

1. Ultra-thin, light weight, unit module size in 320mmX160mm, weight only 350g.


2. . Benefited from the Flexible PCB, even the arch, circle, right angle shape, the whole screen keep good uniformity, the gap keep within 1mm.Good uniformity allows vivid video playing effect . The show designers’ will have no regret for creating a magnificent visual feast any more.


3. The refresh rate range from 1920Hz to 2500Hz and the gray scale is 16 bit. It ensures the screen high quality video playing effect. Photographers no need to worry the black lines and the wave in your good photos
4. Each module back has build in magnet, according to the installation site environment, the screen size and shape can be perfectly installed as the designers’ imagination.

Product specification:

Model P8
Pixel pitch(mm) 8
Configuration SMD3535
Module dimension(mm) 320mmX160mm
Module weight(kg) 0.35kg
Cabinet dimension(mm) 960mmx960mmx120mm
Pixel density(dots/㎡) 15626 dots/㎡
Flatness error(mm) ≤0.1
Viewing angle 140°/140°(Horizontal/Vertical)
Brightness(cd/㎡) 7200 nits
Color temperature(K) 5000~9500 (Adjustable)
Contrast 6000:1
Repetition frequency 50/60Hz
Refresh frequency(Hz) 1920Hz
Gray scale 65536
Working temp./humidity -10~40℃/10%~80%RH
Storing temp./humidity -20~60℃/10%~85%RH
Cabinet material Iron/Aluminum
Maintenance Back
Protection IP65/IP65
Driving mode Constant current driver
Scanning 1/4 scan
Power requirements AC90~264V, 47~63Hz
Life time(hrs) 100,000
Certificate CE ROHS FCC UL ETL, etc.

Advantages OF P8 Stadium LED Display Screen

  • 1 Display can make any curved surface, suitable for artistic modeling,
    2 Suitable for stage background, exhibition hall, indoor meeting room,
    3 Installation easy, strong magnet adsorption type installation, convenient maintenance. Very safe and stable,
    4 PCB using flexible soft board, rubber mask and pan,
    5 Modules are connected by HDMI connector,
    6 Distributor scan, modular design technology, very reliable and stable

Benefits of Lecede P10 Stadium LED Display Screen


Stadium LED Display p8 has many benefits .First of all, the image of our P8

outdoor LED screens is extremely clear and furthermore the vivid colours ensure that your adverts pop

out and come to life! Another benefit is that the content can be easily adjusted to

any situation with our user-friendly software. Reliable in practically all weather conditions, from polar cold

to desert heat.

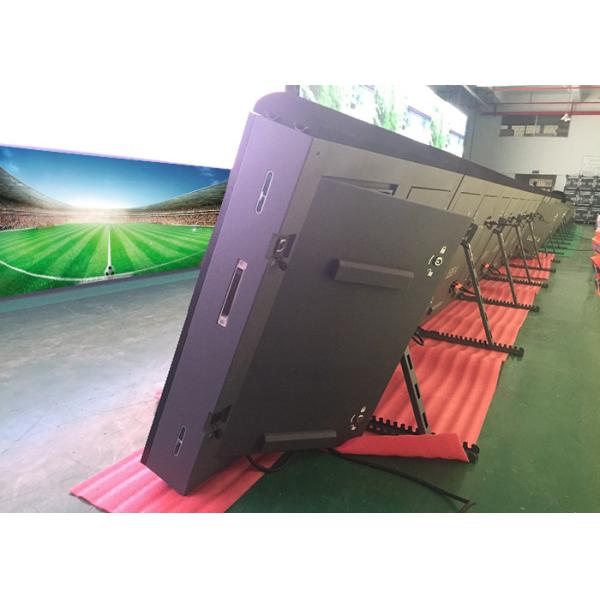

High Resolution P8 Stadium Display Screen  Video Wall Panel 15625pixel/㎡ Pixel Resolution
