P8 Outdoor Front Service Led Display Screen Waterproof LED Sign 40*40dots 8 mm Pixel Pitch
P8 Outdoor Front Service Led Display Screen Waterproof LED Sign 40*40dots 8 mm Pixel Pitch
P8 Outdoor Front Service Led Display Screen Waterproof LED Sign 40*40dots 8 mm Pixel Pitch
P8 Outdoor Front Service Led Display Screen Waterproof LED Sign 40*40dots 8 mm Pixel Pitch
Specifications
Brand Name :
Lecede
Model Number :
C8
Certification :
CE ROHS FCC UL ETL
Place of Origin :
Shenzhen China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 ㎡/month
Delivery Time :
15~30 days after deposit
Packaging Details :
Wooden case packing, flight case packing , honeycomb case
Product name :
P8 Outdoor Front Service Led Display Screen Waterproof LED Sign 40*40dots 8 mm Pixel Pitch
Pixel pitch (MM) :
8.0 mm
Usage :
Outdoor Front Service
Pixel :
15625 dots/㎡
Module size(W*H) :
320x 320 mm
LED lamp :
SMD 2727 lamp
Brightness :
7200 nits
Refresh rate :
1920 Hz
Description

P8 Outdoor Front Service Led Display Screen Waterproof LED Sign 40*40dots 8 mm Pixel Pitch

Product Features

1. Front and rear service makes maintenance quick and easy. High efficient Led lamps save energy

maximum and achieve environment protection accordingly

2. Special PCB design with lower current to save energy more than 30%. Selected small tolerance

wavelength led lamps ensure high uniformity

3. Good quality led chip with low led attenuation, best color uniformity, low default rate and long lifespan

SPECIFICATION OF C8 Outdoor Front Service LED Display

Model C8
Pixel pitch(mm) 8
LED lamp SMD 2727
Module size(mm) 320 x 320mm
Module weight(kg) 1.5kg
Cabinet size(mm) Customized
Pixel density(dots/㎡) 15625
Flatness error(mm) ≤0.2
Viewing angle 140°/140°(Horizontal/Vertical)
Brightness(cd/㎡) 7200 nits
Color temperature(K) 5000~9500 (Adjustable)
Contrast 5000:1
Repetition frequency 50/60Hz
Refresh frequency(Hz) ≥1920 Hz
Gray scale 16bit
Ave. power(W/㎡) 980
Max power(W/㎡) 490
Working temp./humidity -10~40℃/10%~80%RH
Storing temp./humidity -20~60℃/10%~85%RH
Cabinet material Aluminum or Iron
Maintenance Front and Rear maintenance
Protection IP65/IP65
Driving mode Constant current driver
Scanning 5S
Power requirements AC90~264V
Life time(hrs) 100,000

Advantages OF C8 Outdoor Front Service LED Display

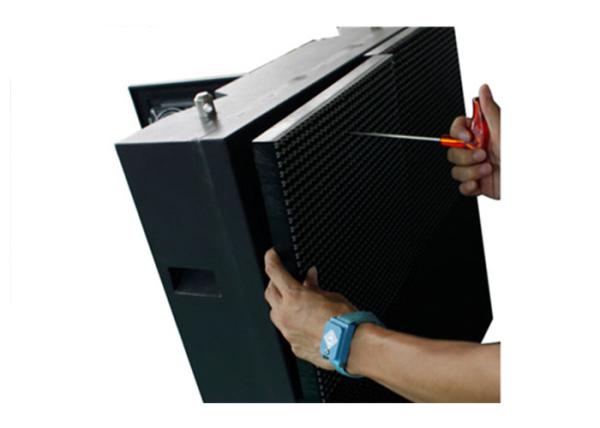

1. Front Service Design: Unlike traditional front service design with hydraulic pipes, which cost much on

project and with lower IP rating due to the conjunction of structure. C8 LED Sign is like normal cabinet

design, but bigger size. The IP rating can reach to IP65. All the modules, cards and power supply can be

maintained from front. The whole sign can be attached to the wall and no need maintenance space at

rear

2. Convenient Sign Design, Easy to Install: C8 LED Sign is very easy to install, not picked on installation

environment. Most structure frame is integrated on the sign, no complicated steel structure needed, just

fix the sign to the pole or to the wall. Extremely save installation time and labor cost

3. High IP Rating, Perfect For Outdoor Advertising: Thanks to special waterproof cabinet structure (no

rear doors), C8 sign screen can achieve IP65 waterproofing. Aluminum material and ventilation design

make sure perfect cooling effect. All these key features are critical for outdoor commercial advertising

activities. No matter it is a small size LED screen or a huge commercial LED billboard, C8 will present

you the trustworthy quality and high profile screen performance

Benefits of Lecede C8 Outdoor Front Service LED Display

C8 integrated front service led signs advertising solution with light sensor, temperature sensor,

asynchronous control card, which support Wireless and wire control ways. Our front service cabinet size

can be customized freely. And you needn’t to worry about the installation structure, we provide you soft

solution which enables you to hanging or fixing.


P8 Outdoor Front Service Led Display Screen Waterproof LED Sign 40*40dots 8 mm Pixel Pitch
