SMD 3535 Outdoor Fixed Installation For Big Signs , P6 Outdoor Led Screen
SMD 3535 Outdoor Fixed Installation For Big Signs , P6 Outdoor Led Screen
SMD 3535 Outdoor Fixed Installation For Big Signs , P6 Outdoor Led Screen
SMD 3535 Outdoor Fixed Installation For Big Signs , P6 Outdoor Led Screen
SMD 3535 Outdoor Fixed Installation For Big Signs , P6 Outdoor Led Screen
SMD 3535 Outdoor Fixed Installation For Big Signs , P6 Outdoor Led Screen
SMD 3535 Outdoor Fixed Installation For Big Signs , P6 Outdoor Led Screen
SMD 3535 Outdoor Fixed Installation For Big Signs , P6 Outdoor Led Screen
Specifications
Brand Name :
Lecede
Model Number :
Q16
Certification :
CE ROHS FCC UL ETL
Place of Origin :
Shenzhen China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability :
10000 ㎡/month
Delivery Time :
15~30 days after deposit
Packaging Details :
Wooden case packing, flight case packing , honeycomb case
Product :
P16 Outdoor LED Display
Pixel pitch :
16mm
Usage :
Outdoor
Pixel :
3906 dots/㎡
Module size(W*H) :
256mm*256mm
LED lamp :
SMD 3535
Brightness :
8000 nits
Refresh rate :
≥1920 Hz
Description

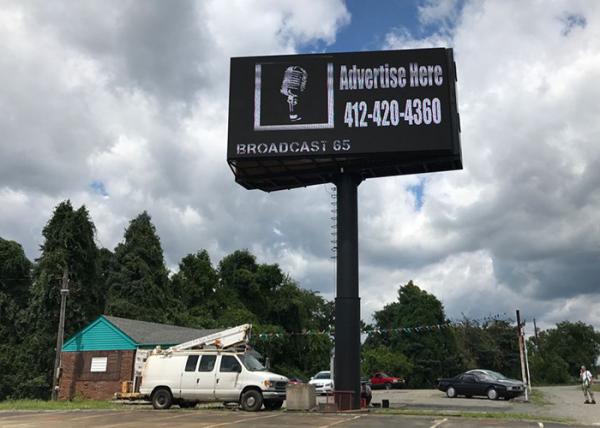

P16 High Brightness Screen Outdoor Fixed Installation For Big Signs


Product Features

P16 High Brightness Led Display Outdoor Fixed LED Display With High Refresh Rate, Good Choice For Top Of Building And Street

SPECIFICATION OF Q6 Outdoor Fixed LED Display Screen

Model Q16
Pixel pitch(mm) 16mm
Configuration SMD 3535

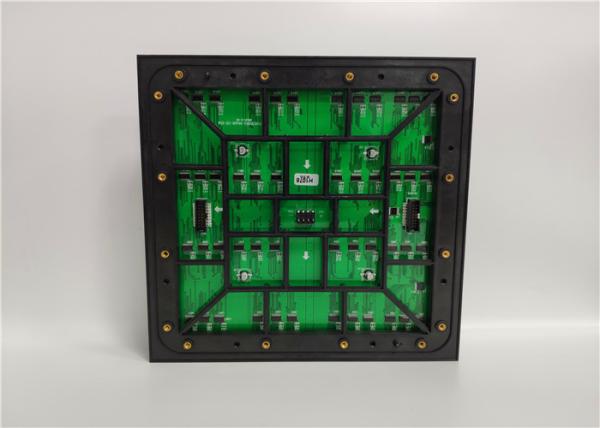

Module dimension(mm) 256mm*256mm
Module weight(kg) 0.5
Cabinet dimension(mm) 1024mm*1024mm
Pixel density(dots/㎡) 3906
Flatness error(mm) ≤0.1
Viewing angle 140°/140°(Horizontal/Vertical)
Brightness(cd/㎡) 8000
Color temperature(K) 5000~9500 (Adjustable)
Contrast 4000:1
Repetition frequency 50/60Hz
Refresh frequency(Hz) 1920
Gray scale 65500
Ave. power(W/㎡) 500
Max power(W/㎡) 1000
Working temp./humidity -10~40℃/10%~80%RH
Storing temp./humidity -20~60℃/10%~85%RH
Cabinet material Iron
Maintenance Rear
Protection IP65/IP67
Driving mode Constant current driver
Scanning 1/4 1/8
Power requirements AC90~264V, 47~63Hz
Life time(hrs) 100,000

Advantages OF Q6 Outdoor Advertising LED Display Screen

1. Lecede Q16 has Wide viewing angle: The horizontal and vertical viewing angles are so wide that it is

suitable for wide horizontal.

2. Lecede Q16 has Error detection and monitoring: it can monitor the inner temperature, voltage,

cooling fans etc and make error detection automatically.

SMD 3535 Outdoor Fixed Installation For Big Signs , P6 Outdoor Led Screen
