Outdoor Advertising Smd Led Display Screen Billboard IP68 8mm 7000 Nits Brightness
Outdoor Advertising Smd Led Display Screen Billboard IP68 8mm 7000 Nits Brightness
Outdoor Advertising Smd Led Display Screen Billboard IP68 8mm 7000 Nits Brightness
Outdoor Advertising Smd Led Display Screen Billboard IP68 8mm 7000 Nits Brightness
Specifications
Brand Name :
Lecede
Model Number :
C8
Certification :
CE ROHS FCC UL ETL
Place of Origin :
Shenzhen China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 ㎡/month
Delivery Time :
15~30 days after deposit
Packaging Details :
Wooden case packing, flight case packing , honeycomb case
Product name :
Outdoor Advertising Front Service Led Display Billboard IP68 , 8mm Led Screen
Pixel pitch (MM) :
8 mm
Usage :
Outdoor Front Service
Pixel :
15625 dots/㎡
Module size(W*H) :
320x 320 mm
LED lamp :
SMD 2727 lamps
Brightness :
7000 nits
Refresh rate :
1920 Hz
Description

Outdoor Advertising Front Service Led Display Billboard IP68 , 8mm Led Screen

Quick Detail:

1. Wide Viewing Angle 140 degree (H/V)

2. Waterproof IP68

3. Super brightness.

4. High cost effective

5. Front and rear cabinet access maintenance

6. 100% fully test

Characteristics:

1, High quality and high performance

2, Supplied by high strictly selected SMD2727 LED

3, Perfect color blending and comfortable visual effect

4, 2 years warranty and long term tech-support

5, Excellent uniformity and no mosaic

6, Available models: P6, P8, P10

Applications:

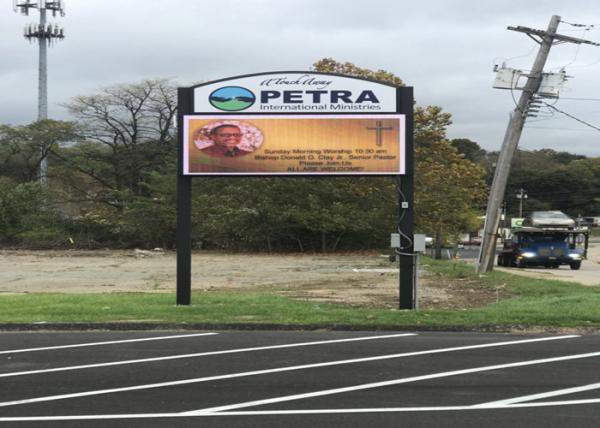

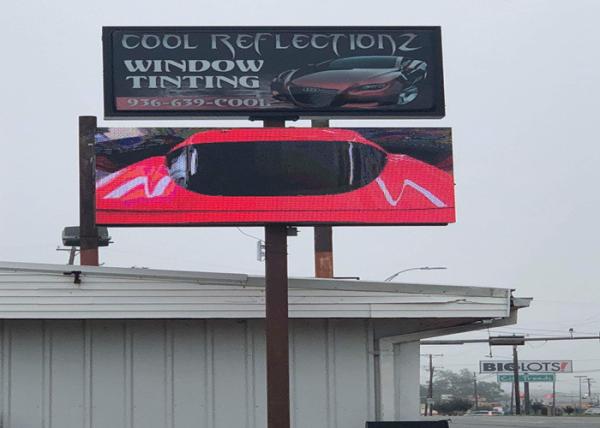

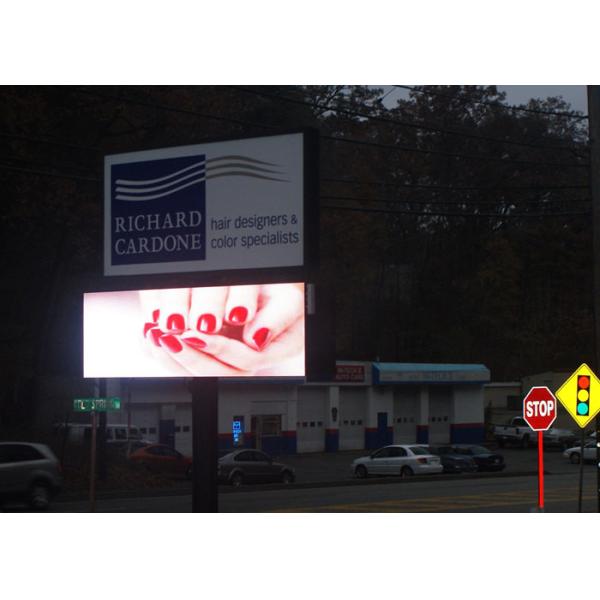

Outdoor full color digital billboards are very popular in outdoor advertising field. This type digital

billboard is widely used outdoor plaza, storefront, outdoor building,stadium,shopping mall,cross road,highway,

airport etc;

Specifications:

1. Outdoor LED Display Technical Parameter

Model No. C8
Pixel Pitch 8mm
Module Size 320mm*320mm
Module Resolution(pixels) 40*40
Cabinet Size 960mm×960mm
Cabinet Resolution(pixels) 120×120
Pixel Configuration(RGB) SMD2727
Pixel Density(pixels/m2) 15625
Brightness(cdm2) >7000
Best Viewing Distance(m) 8-100
Max.Power Consumption(W/m2) 900
Waterproof Level IP65
Wavelength R 620-625 G 520-525 B 470-475
LED SPEC 2727
Viewing Angle 140°(H)/140°(V)
Operating Tempreture –20~50°C
Video Frame Rate(Hz) ≥60HZ
Display Refresh Rate(Hz) ≥1920HZ
Grey Level(colors) 16.7million
MTBF ≥50000 hours
Lifespan ≥100000Hours
Working Voltage 220V±10% OR 110V±10%
Drive Mode Constant 1/5
Graphics Card DVI Graphics card
Video Signal RF, S-Video, RGB, RGBHV, YUV, YC, etc.
Control System Novastar, Colorlight, Huidu
Installation Wall mount, and stand structure
