Specifications
Brand Name :
GCL
Model Number :
COB P0.9\P1.25\P1.56
Certification :
EMC/CE/ROHS/CCC/FCC/BIS
Place of Origin :
China
MOQ :
Min. order: 20
Price :
Price to be discussed
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
2000 Square Meter/Square Meters per Month
Delivery Time :
15-20Days
Packaging Details :
Single package size:65X40X30 cm
Description

Led Video Wall HD COB P0.9 P1.25 P1.5 Led Display Indoor Led Screen

1 ,Standard display unit, supporting dual power and dual card backup display units;
1 unit box: 8 light boards+backup power supply+HUB+die cast box

2,Product size: 150mm (width) X168.75mm (height)

Product Features

RGB full flip chipRGB full flip chip
Excellent hardware protection (anti knock, waterproof, anti static, scrubbing)
Ultra high brightness, contrast, gamut, and ink at one time
The extending screen mirror black and bright, comparable to the appearance of the LCD screen
RoHS compliance meets RoHS requirements

Application scenarios

►Commercial display

► Special consumer display

►General use

Packaging
Display module packaging specifications: 8pcs per layer for inner packaging, 5 layers per box, a total of 40pcs light boards per box,
Outer box size: 450mm * 417mm * 310mm.
Unit box packaging specifications: 5pcs per box, outer box size: 680mm * 310mm * 420mm​

Product P0.9 P1.2 P1.5
Pitch 0.9375mm 1.25mm 1.5625mm
Density(pixels/m²) 1137777 640000 409600
LED Type Flip Chip COB
Brightness 600nits
Scan Method 1/40 1/40 1/48

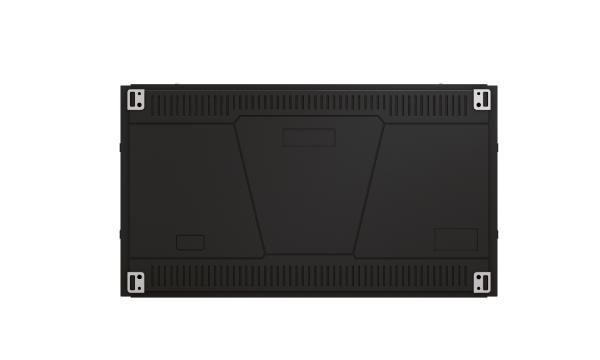

Panel Size 600×337.5×29.2mm
Module Size 150×168.5mm
Panel Material Die-casting Aluminum
Panel Weight 4.2kg
Protection Level IP50
Maintenance Full Front Service
Max Power Consumption 275W/㎡ 245W/㎡ 205W/㎡
Average PowerConsumption 90W/㎡ 80W/㎡ 70W/㎡
Refresh Rate ≥3840Hz
Grey Scale 13-16bit
Viewing Angle H170°,V170°
Voltage AC100~240V(50-60Hz)
Working Temperature -20℃to 60℃
Working Humidity 10%-90%RH
Color Temperature 3000-9500K
Certifications CE/ROHS/EMC/TUV/UL/CCC/FCC/ISO

About GCL :

The focus of GCL lies in the manufacturing of various types of LED display screens, including indoor and outdoor displays, rental displays, flexible displays, transparent displays, dance floor series, high-definition resolution displays, perimeter displays, stadium sport screens, LED signs, display boards and billboards.
