Specifications
Place of Origin :
Guangdong, China
Model Number :
Outdoor Gpro
Brand Name :
GCL
Packaging Details :
wooden case,plywood,flight case,paper board
Supply Ability :
2000 Square Meter/Square Meters per Month
Price :
Price to be discussed
MOQ :
Min. order: 20
Certification :
EMC/CE/ROHS/CCC/FCC/BIS
Application :
Outdoor, Advertising/Fixed installation
Type :
LED
Color :
Full Color
Panel Size :
640x960mm, 640x960mm
Supplier Type :
Original manufacturer, ODM, OEM
Media Available :
Photo, video
use :
advertising publish, shopping mall, welcome display, exhibition hall, Large Commercial Complex, Large Sports Center, Urban Landmark
Pixel Pitch :
2.5-16mm, 2.5-16mm
Specification :
Digital Poster
Touch Screen Type :
Capacitive
Brightness :
5500-10000, 5500-10000
pixel density :
3906-160000, 3906-160000
Contrast Ratio :
≥1000:1, ≥1000:1
Lifespan (hours) :
100000, 100000
IP Rating :
IP65, IP65
HS Code :
5300
Resolution :
2K-4K
View Angle（H/V） :
H120°/V120°,H100°/V50°, H120°/V120°,H100°/V50°
Display Type :
outdoor
Product name :
Gpro
Warranty :
3 Years
LED type :
SMD 1415
Refresh Rate :
3840Hz/s HD
Grey Scale :
13-16bit
Color Temperature :
6500-9500K
Port :
shenzhen
Description

Products Description

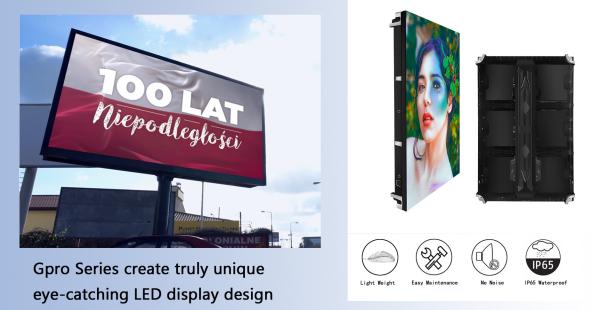

IP65 Waterproof Digital Signage Outdoor Display Screen With High Brightness Energy Saving Design
1.Double Water Proof,Module Water Proof,Cabinet water proof,which can be able to withstand extreme weather
2,Front and Back service This Panel is for outdoor use,and has achieve Front and Rear maintenance,Super thin and light weight,only 85mm thickness,and 16.5kg
3.Good Heat Dissipation,No need AC and Fan,No noise 3.Excellent Quality Our field-tested LED panel is a self-contained, modular unit made of die-casting aluminum to provide superior heat dissipation,durability, and a longer lifespan. Unlike most digital signs, ours have no fans. This unique product meets strict quality controland is backed by a 3 year warranty.
4,Multiple installation mode,can be hanging or wall mounted.
5,Energy Saving,Compared with normal led screen,SMD led panel save 30%,DIP led panel save 50%,only 300w/sqm
IP65 Waterproof Digital Signage Outdoor Display Screen With High Brightness Energy Saving Design
IP65 Waterproof Digital Signage Outdoor Display Screen With High Brightness Energy Saving Design
IP65 Waterproof Digital Signage Outdoor Display Screen With High Brightness Energy Saving Design
IP65 Waterproof Digital Signage Outdoor Display Screen With High Brightness Energy Saving Design
IP65 Waterproof Digital Signage Outdoor Display Screen With High Brightness Energy Saving Design
IP65 Waterproof Digital Signage Outdoor Display Screen With High Brightness Energy Saving Design
IP65 Waterproof Digital Signage Outdoor Display Screen With High Brightness Energy Saving Design
IP65 Waterproof Digital Signage Outdoor Display Screen With High Brightness Energy Saving Design
Product Parameter
Product P4 P8 P10 P10D P16
Pitch 4mm 8mm 10mm 10mm 16mm
Density(pixels/m²) 62500 15625 10000 10000 3906
LED Type SMD1921 SMD2727 SMD2727 DIP346 DIP346
Brightness 6000nits 7000nits 7000nits 8000nits 8000nits
Scan Method 1/10 1/4 1/2 1/4 静态
Panel Size 640×960mm
Module Size 320×320mm
Panel Material Die-casting Aluminum
Panel Weight 23.5Kg 19Kg 19Kg 21Kg 21Kg
Protection Level IP65
Maintenance Front/Rear Service
Max Power Consumption 720W/㎡ 720W/㎡ 720W/㎡ 350W/㎡ 350W/㎡
Average Power Consumption 240W/㎡ 240W/㎡ 240W/㎡ 110W/㎡ 110W/㎡
Refresh Rate 3840Hz
Grey Scale 13-16bit
Viewing Angle H160°,V140° H100°,V50°
Voltage AC100~240V(50-60Hz)
Working Temperature -30℃ to 60℃
Working Humidity 10%-90%RH
Color Temperature 3000-9500K
Certifications CE/ROHS/EMC/TUV/UL/CCC/FCC/ISO
IP65 Waterproof Digital Signage Outdoor Display Screen With High Brightness Energy Saving Design
IP65 Waterproof Digital Signage Outdoor Display Screen With High Brightness Energy Saving Design
ABOUT GCL
Shenzhen GCL Electronics CO., Ltd, founded in 1999, is a professional LED display manufacturer which integrates research, development, manufacturing, engineering, installing, sales and aftersales service.
Headquartered in Shenzhen, China, warehouse in Dallas,US,and Russia.GCL is staffed with over 300 employees and in our dust free workshop which covers more than 100,000 square feet, there are more than 40 high-speed production machines with high accuracy and more than 10 modern assembly lines. GCL has a very powerful productivity with over 5000 square meters LED screens each month. We have been granted with more than ten LED application products-related patents and certifications in compliance with the ISO 9001, ISO 1400 and ISO18001 standards. Our products have also been certificated with multiple standards, including CCC, FCC, CE, ROHS, EMC.
GCL has finished more than 10,000 led screen projects all over the world, including some magnificent international government projects such as 2010 World Cup in South Africa, 2010 Shanghai Expo, 2014 China-Asian Expo, 2015 Milan Expo, etc.
