Outdoor High Brightness 500*1000mm Mesh LED Display Screen P15.625-31.25mm with IP65 Rating and Full Color
Outdoor High Brightness 500*1000mm Mesh LED Display Screen P15.625-31.25mm with IP65 Rating and Full Color
Outdoor High Brightness 500*1000mm Mesh LED Display Screen P15.625-31.25mm with IP65 Rating and Full Color
Outdoor High Brightness 500*1000mm Mesh LED Display Screen P15.625-31.25mm with IP65 Rating and Full Color
Outdoor High Brightness 500*1000mm Mesh LED Display Screen P15.625-31.25mm with IP65 Rating and Full Color
Outdoor High Brightness 500*1000mm Mesh LED Display Screen P15.625-31.25mm with IP65 Rating and Full Color
Outdoor High Brightness 500*1000mm Mesh LED Display Screen P15.625-31.25mm with IP65 Rating and Full Color
Outdoor High Brightness 500*1000mm Mesh LED Display Screen P15.625-31.25mm with IP65 Rating and Full Color
Outdoor High Brightness 500*1000mm Mesh LED Display Screen P15.625-31.25mm with IP65 Rating and Full Color
Outdoor High Brightness 500*1000mm Mesh LED Display Screen P15.625-31.25mm with IP65 Rating and Full Color
Outdoor High Brightness 500*1000mm Mesh LED Display Screen P15.625-31.25mm with IP65 Rating and Full Color
Outdoor High Brightness 500*1000mm Mesh LED Display Screen P15.625-31.25mm with IP65 Rating and Full Color
Outdoor High Brightness 500*1000mm Mesh LED Display Screen P15.625-31.25mm with IP65 Rating and Full Color
Outdoor High Brightness 500*1000mm Mesh LED Display Screen P15.625-31.25mm with IP65 Rating and Full Color
Outdoor High Brightness 500*1000mm Mesh LED Display Screen P15.625-31.25mm with IP65 Rating and Full Color
Outdoor High Brightness 500*1000mm Mesh LED Display Screen P15.625-31.25mm with IP65 Rating and Full Color
Specifications
Brand Name :
GCL
Model Number :
Gmesh 15.625-31.25
Certification :
EMC/CE/ROHS/CCC/FCC/BIS
Place of Origin :
China
MOQ :
Min. order: 20
Price :
Negotiable
Supply Ability :
2000 Square Meter/Square Meters per Month
Delivery Time :
15-22Days
Packaging Details :
Single package size:100X116X13 cm
Application :
Outdoor
Led Type :
DIP 346
Color :
Full Color
Panel Size :
500*1000mm
Media Available :
datasheet, Photo, EDA/CAD Models, Other
Pixel Pitch :
P15.625-31.25
Specification :
Video Wall
Brightness :
10,000 nits
IP Rating :
IP65
View Angle（H/V） :
H100°/V50°
energy consumption :
88W/ ㎡
Scan :
Static
Material :
Die-casting aluminum
Description

Outdoor IP65 High Brightness 500*1000mm Mesh Led Display Screen P15.625-31.25mm

Gmesh Series--Outdoor Fixed Installation Product:

1. Pixel pitch: Horizontal 15.625mm, vertical 31.25mm; pixel arrangement: 1R1G1B in a triangular pattern to enhance color mixing effects and avoid color distortion from different viewing angles;
2. Resolution ≥ 1280 dot/㎡;

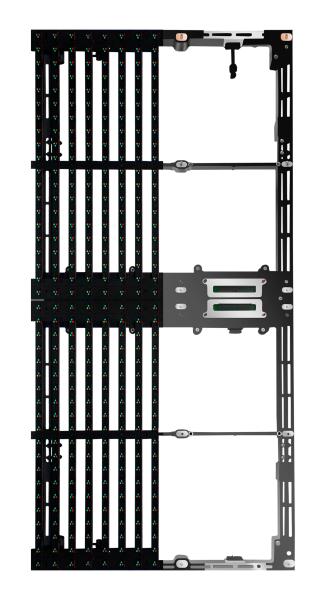

3. Module size: Width 500mm x Height 250mm; cabinet size: Width 1000mm x Height 500mm;
4. Driving method: Static constant current;
5. Brightness: ≥10000 cd/㎡;
6. Module: Composed of unit modules;
7. Protection: Protection level not lower than IP65 on both front and back (high protection performance, long service life);
8. Light transmittance can reach 60%, natural heat dissipation without fans or air conditioning, low wind resistance;

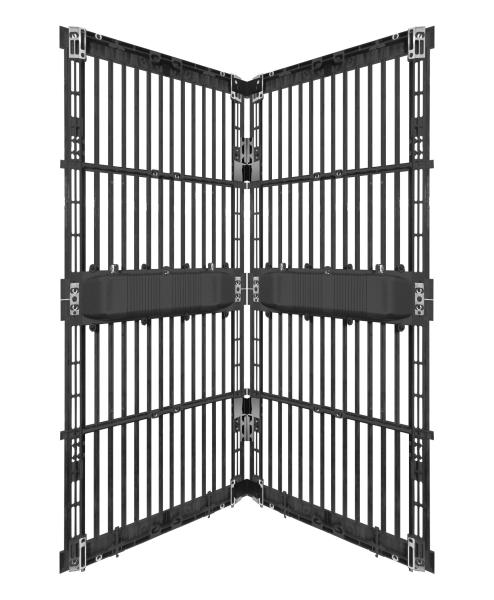

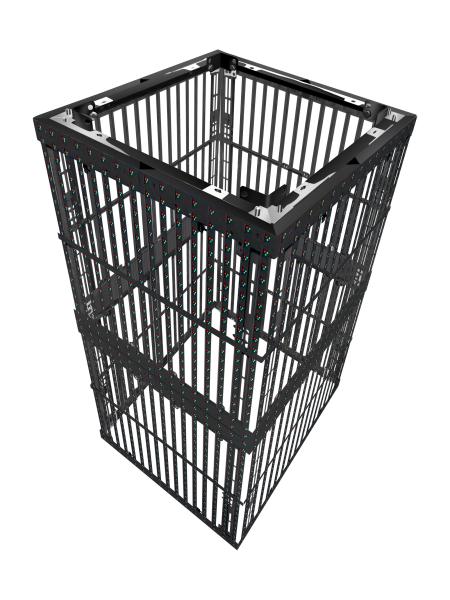

9. Right-angle and curved free splicing, seamless splicing at four sides at 90 degrees, can splice at ± curvature;

10. Cabinet: Die-cast aluminum (integrated molding) cabinet with 45° left and right angles; the cabinet is made of high-strength die-cast aluminum, lightweight, high strength, supports curved and right-angle installation;

11.Refresh rate>3840Hz,
12,Installation and maintenance method: can be maintained before and after
13,Usage scenario: Gmesh has its own lightweight, high transparency performance, and does not obstruct building lighting. Widely used for large building window advertising screens, large naked eye 3D screens, building exterior wall advertising, large column advertising, etc,
