Specifications
Brand Name :
GCL
Model Number :
Gstar-II P1.56.P1.953/P2.5
Certification :
EMC/CE/ROHS/CCC/FCC/BIS
Place of Origin :
China
MOQ :
Min. order: 20
Price :
Price to be discussed
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
5000 Square Meter/Square Meters per Month
Delivery Time :
15-20Days
Packaging Details :
Single package size:60X60X30 cm
Product name :
Gstar-II Series
Usage :
Indoor Rental
Panel size :
500x750x78mm/ 500x1000x78mm
Module size :
250*250mm
Viewing Angle :
H160°,V140°
Refresh :
7680Hz
Package: :
GOB
Material :
Die-Cast Aluminum
Installation method :
three
Maintenance method :
Full Front Maintenance
Description

GOB LED Video Walls New Gstar II indoor P1.56 P1.95 P2.6 High-Definition Led Display Screen Video Wall

Model Number: P1.95 P2.6, P2.97, P3.91,

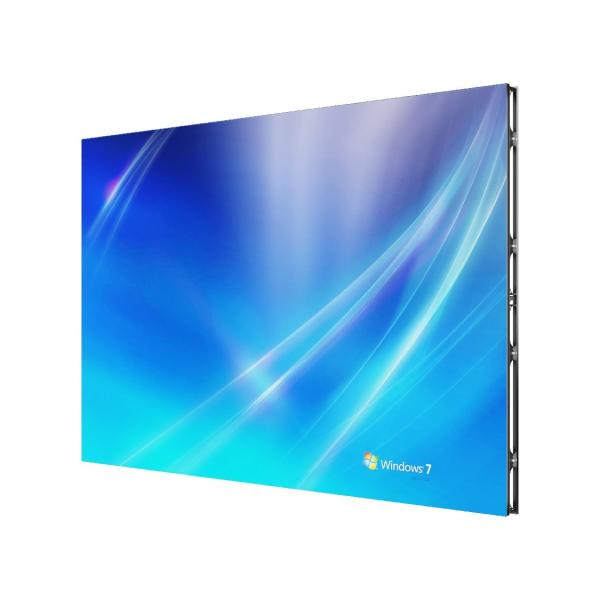

The new Gstar-II series is a cutting-edge indoor fixed LED display that offers two sizes: 500*1000mm and 500*750mm. Designed with large individual modules, this series is perfect for creating stunning visual experiences in various environments.

One of the standout features of the Gstar-II is its ease of installation. With three key installation advantages, it significantly

reduces labor costs and enhances efficiency:

Rapid Installation: The large module size allows for quick setup, minimizing the time and manpower required for installation.

Mixed Size Assembly: The ability to combine both sizes in one installation reduces inventory costs, making it a flexible solution for diverse project needs.

Wall-Mounting Capability: The Gstar-II is lightweight and slim, allowing for easy wall installation without the need for heavy steel structures. This not only simplifies the installation process but also enhances the aesthetic appeal.

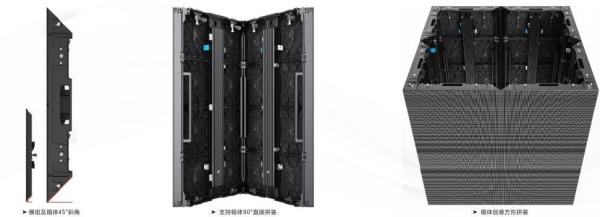

Additionally, the Gstar-II can be configured into various shapes, including right-angle installations, providing versatility for creative display designs.

Other remarkable features include GOB (Glue on Board) technology, 7680Hz refresh rate, 16-bit low grayscale, and an impressive brightness of 1000 nits. These specifications ensure that the visual quality is exceptional, delivering vibrant colors and sharp images for an unparalleled viewing experience.

In summary, the Gstar-II series is an innovative solution for indoor LED displays, combining ease of installation, flexibility, and superior image quality to meet the demands of modern visual communication.

Product specifications:

Product P1.5 P1.953 P2.604 P2.976 P3.91
Pitch 1.5625mm 1.953mm 2.604mm 2.976mm 3.91mm
Density(pixels/m²) 409600 262144 147456 112896 65536
LED Type SMD1212 SMD1515 SMD2020 SMD2020 SMD2020
Brightness 800nits 800nits 800nits 800nits 800nits
Scan Method 1/32 1/16 1/24 1/21 1/16
Panel Size 500×750×78mm/500×1000×78mm
Module Size 250×250mm
Panel Material Die-casting Aluminum
Panel Weight 14kg
Protection Level IP31
Maintenance Module Front Service &Rear Service
Max Power Consumption 450W/㎡ 450W/㎡ 550W/㎡ 550W/㎡ 550W/㎡
Average Power Consumption 150W/㎡ 150W/㎡ 180W/㎡ 180W/㎡ 180W/㎡
Refresh Rate 3840Hz
Grey Scale 13-16bit
Viewing Angle H160°,V140°
Voltage AC100~240V(50-60Hz)
