High Brightness Outdoor LED Display GA Series DIP346 LED Type 6000-10000nits Perfect for Outdoor Advertising Screens
High Brightness Outdoor LED Display GA Series DIP346 LED Type 6000-10000nits Perfect for Outdoor Advertising Screens
High Brightness Outdoor LED Display GA Series DIP346 LED Type 6000-10000nits Perfect for Outdoor Advertising Screens
High Brightness Outdoor LED Display GA Series DIP346 LED Type 6000-10000nits Perfect for Outdoor Advertising Screens
High Brightness Outdoor LED Display GA Series DIP346 LED Type 6000-10000nits Perfect for Outdoor Advertising Screens
High Brightness Outdoor LED Display GA Series DIP346 LED Type 6000-10000nits Perfect for Outdoor Advertising Screens
High Brightness Outdoor LED Display GA Series DIP346 LED Type 6000-10000nits Perfect for Outdoor Advertising Screens
High Brightness Outdoor LED Display GA Series DIP346 LED Type 6000-10000nits Perfect for Outdoor Advertising Screens
High Brightness Outdoor LED Display GA Series DIP346 LED Type 6000-10000nits Perfect for Outdoor Advertising Screens
High Brightness Outdoor LED Display GA Series DIP346 LED Type 6000-10000nits Perfect for Outdoor Advertising Screens
High Brightness Outdoor LED Display GA Series DIP346 LED Type 6000-10000nits Perfect for Outdoor Advertising Screens
High Brightness Outdoor LED Display GA Series DIP346 LED Type 6000-10000nits Perfect for Outdoor Advertising Screens
Specifications
Brand Name :
GCL
Model Number :
GA
Certification :
EMC/CE/ROHS/CCC/FCC/BIS
Place of Origin :
Guangdong, China
MOQ :
Min. order: 20
Price :
Negotiable
Supply Ability :
2000 Square Meter/Square Meters per Month
Delivery Time :
15-20Days
Packaging Details :
Single package size:101X116X13 cm
Application :
Outdoor
Type :
LED
Panel Size :
960*960 mm
use :
advertising publish, retail store, shopping mall, display of dishes, welcome display, self-service business, exhibition hall, wayfinding, airport, subway, elevator, Restaurant & Hotel Supplies, education, medical treatment
Function :
SDK
Pixel Pitch :
P4mm\P5mm\6mmm\8mm, 10mm
Brightness :
6000-10000nits
pixel density :
15625
Contrast Ratio :
9000:1
Lifespan (hours) :
100000
Resolution :
3840Hz
View Angle（H/V） :
H140°,V120°
Module size :
480*320mm
Cabinet Material :
Alumium
LED Type :
SMD2727，DIP346
After-sales Service Provided :
3 Years
Cabinet Weight :
29.48KG
Maintenance :
Front & Rear Service
Grey Scale :
13-16 bit
Description

GA Product Features Introduction:

Outdoor LED Display GA Series: Illuminate the Outdoors, Infinite Brilliance

Looking to create a stunning visual spectacle outdoors? The GA Series Outdoor LED Display makes it effortlessly achievable!

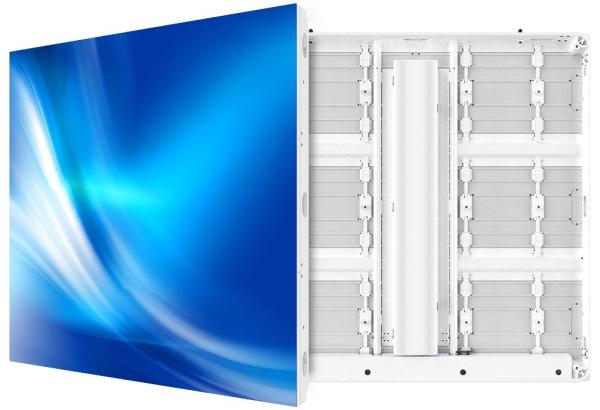

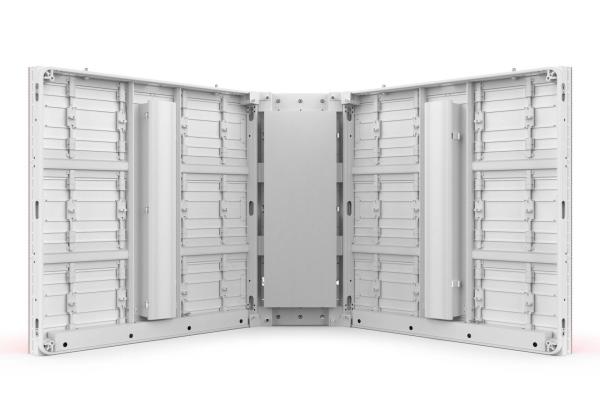

Featuring a standardized 960*960mm cabinet design, it encompasses a variety of pixel pitches including P4, P5.7, P6.67, P8, and P10DIP, catering to diverse scene requirements. The high compatibility between modules, back shells, and cabinets

ensures easier installation and maintenance.

With fully enclosed modules and dual IP65 waterproof rating, it stands fearless against wind and rain, offering peace of mind for outdoor use. Excellent thermal performance allows for space-saving installation, energy efficiency, and eco-friendliness.

The dual-pressure power supply design enhances energy efficiency. Equipped with brand gold wire LED beads, it boasts ten-thousand-level high brightness with a mere 335W power consumption, delivering clear, vibrant, and stable images.

The GA Series Outdoor LED Display, with its superior quality and outstanding performance, is your ideal choice for outdoor display!

Contact us now to embark on a new outdoor visual experience!

Product P5.71 P6.67 P8 P10 P10D
Pitch 5.71mm 6.67mm 8mm 10mm 10mm
Density(pixels/m²) 30625 22500 15625 10000 10000
LED Type SMD2727 SMD2727 SMD2727 SMD2727 DIP346
Brightness 6500nits 6500nits 6500nits 6500nits 10000nits
Scan Method 1/7 1/6 1/4 1/2 1/4
Panel Size 960×960mm
Module Size 480×320mm
Panel Material Profile Aluminum
Panel Weight 30kg 29.5kg 29.5kg 29.5kg 38.8kg
Protection Level IP65
Maintenance Front&Rear Service
Max Power Consumption 650W/㎡ 650W/㎡ 650W/㎡ 650W/㎡ 350W/㎡
Average Power Consumption 210W/㎡ 210W/㎡ 210W/㎡ 210W/㎡ 110W/㎡
Refresh Rate 3840Hz
Grey Scale 13-16bit
Viewing Angle H140°,V120° H140°,V120° H140°,V120° H140°,V120° H100°,V50°
Voltage AC96~264V(50-60Hz)
Working Temperature -30℃ to 60℃
Working Humidity 10%-90%RH
Color Temperature 3000-9500K
Certifications CE/ROHS/EMC/TUV/UL/CCC/FCC/ISO
