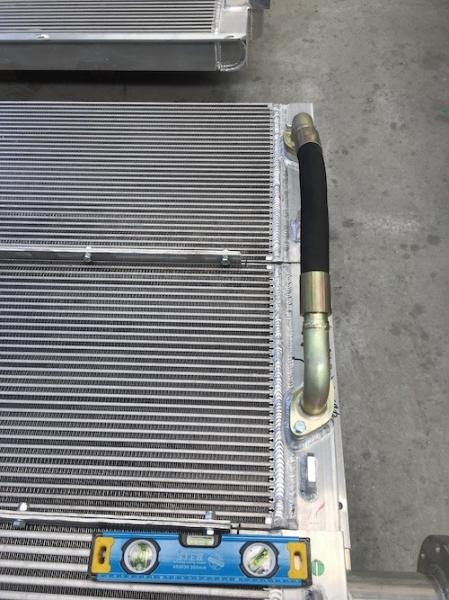

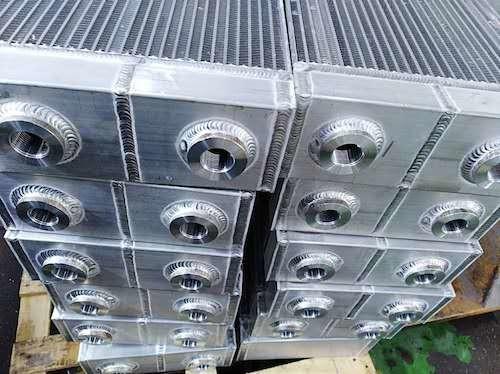

Rotary Screw Compressor aluminum oil cooler air after cooler for compressor Oil Heat Exchanger
Rotary Screw Compressor aluminum oil cooler air after cooler for compressor Oil Heat Exchanger
Rotary Screw Compressor aluminum oil cooler air after cooler for compressor Oil Heat Exchanger
Rotary Screw Compressor aluminum oil cooler air after cooler for compressor Oil Heat Exchanger
Specifications
Brand Name :
ADV
Model Number :
ADV -OC-03
Certification :
ISO9001
Place of Origin :
Changzhou China
MOQ :
1 Unit
Supply Ability :
1~50 + Units + 25 Working Days
Delivery Time :
7~15 Working Days
Packaging Details :
Wooden Packing
Product :
Compressor Oil Air Cooler
Material :
AL3003
Technic :
Vacuum Brazing
Max Size :
2.4 Meters Length
Max Pressure :
3.5 Mpa
Test :
Leak Test & Performance Test & Pressure Pulse Test & Vibration Test
Usage :
Construction Machinery, Hydraulic System, Compressor Machinery, Automatic , Agriculture Machinery, Railway, Wind Powder Generation
Warranty :
12 month
Description

Rotary Screw Compressor Aluminum Oil Cooler

Compressor After Cooler Compressor Air Cooler​

Rotary Screw Compressor aluminum oil cooler air after cooler for compressor Oil Heat Exchanger

Quick Description

The CMP Series is a complete Compressor Oil Air Cooler package designed to work on most models of rotary and piston air compressors.

To Selected the appropriate model, simply determine compressor horsepower, and select the model from the chart

(All dimensions and technical characteristics can be designed according to your requirement, please contact us if you need customization)

Material Description & Working Situation

Main Cooler Body​

Aluminum

Housing

Powder painted steel

Fan Guard

Galvanized plate

Fan Blade

Polypropylene

Maximum Working Pressure

250 PSI

Maximum Working Temperature

110℃

Technic Specification : (took from 220 KW)

SPECIFICATION OIL/Air after cooler
Item number ADV-CMP009
Technical data(Standard values)
Compressor driving power KW/HP 160/220
Oil cooling power KW 122
Air cooling power KW 37
Oil flow Lit/min 120
Air flow Kg/hr 2100
Cooling Air flow Kg/hr 18,000
Approximate cooler dimensions
A mm/inch 840
B mm/inch 382
A+B mm/inch 1222
C mm/inch 1120
D mm/inch 1270
E mm/inch 95
Max working pressure bar(g)/psig 15/218
Test Pressure bar(g)/psig 20/290
Air cooler connecting slot[G"] inch 2(M+P)
Oil cooler connecting slot[G"] inch 1-1/2(N+O)
Cooler weight approx. Kg/lb 108.5
Fan speed rpm
Fan diameter mm/inch
Oil inlet temperature ℃ Max 120
Air inlet temperature ℃ Max 120

LAB & Test

1.Leak Test of Every Unit

2.Performance Test ( Available)

Performance Test: Compressed Air System Water Glycol System Water Glycol System
Flow: 0-48Nm3/min 400L/min 600L/min
Temp: ≤200°C ≤100°C ≤110°C
Max. heating power: 110KW 180KW 240KW

Rotary Screw Compressor aluminum oil cooler air after cooler for compressor Oil Heat Exchanger

3. Pulse Test ( Available)

4. Viberation Test (Available)

5. Salty Spay Test

we can offer C5 standard preservative treatment preservative treatment, please contact us fr more information

Rotary Screw Compressor aluminum oil cooler air after cooler for compressor Oil Heat Exchanger

ADV Project Experience
  • 3D model drawing available
  • Compressor Oil Air After Cooler Prototype testing and confirmation
  • Special Mechanical Frame support, Front to Back type design and manufacturing
  • Easy mounting and maintain, Good anti-vibration
  • Stable Performance & Low Pressure Drop
  • Compact Design & Light Weight
  • Motor & Fan is Optional
  • 12 Month Global Warranty​

Customization Service

Rotary Screw Compressor aluminum oil cooler air after cooler for compressor Oil Heat Exchanger

Hundreds of Fins and Tanks for your choice to custom Your Compressor Oil Air Cooler

Purchasing Guide

You just need to tell us your specific requirements and environmental parameters for your compressor, so that we can make professional quotations accordingly.

Please advise:

Oil parameter Fluid
Flow
Inlet temperature (℃)
Cooling power (kw)
Max. allowable pressure drop
Max. work pressure (MPa)
Air parameter Flow
Inlet temperature (℃)
Cooling power (kw)
Max. allowable pressure drop
Max. work pressure (MPa)
Cool air parameter Flow & Pressure curve
Inlet temperature (℃)
Air trace
Mounting Max overall dimension
Location of connections
Requirement of structure
Working condition

Be free to contact us if you need any further information, thank you!
