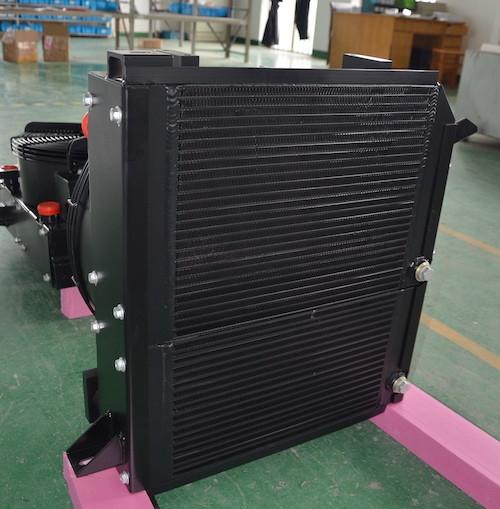

Customized aluminum welded plate and frame bar plate charge air cooler heat exchanger
Customized aluminum welded plate and frame bar plate charge air cooler heat exchanger
Customized aluminum welded plate and frame bar plate charge air cooler heat exchanger
Customized aluminum welded plate and frame bar plate charge air cooler heat exchanger
Specifications
Brand Name :
ADV
Model Number :
ADV -WC-01
Certification :
ISO9001
Place of Origin :
Changzhou China
MOQ :
1 Unit
Supply Ability :
1~50 + Units + 25 Working Days
Delivery Time :
7~15 Working Days
Packaging Details :
Wooden Packing
Product :
Welded plate and frame heat exchanger
Material :
AL3003
Technic :
Vacuum Brazing
Usage :
Oil to water heat exchanger
Max Size :
Custom
Max Pressure :
Custom
Test :
Leak Test & Performance Test & Pressure Pulse Test & Vibration Test
Warranty :
12 month
Description

Customized aluminum welded plate and frame bar plate heat exchanger

Description

Suitable for a wide range of applications, single or dual pass, down flow, or cross flow designs can all be usd in a full range of dimensions to meet your specific needs. Our All-Aluminum Radiators are manufactured by atmosphere controlled furnace brazing to ensure the highest quality and performance.
All-aluminum construction means lighter weight and improved heat transfer over traditional radiators (copper/brass).

Product Features

  • Wide range of design patterns, flow configurations, fittings, and mounting options.
  • High performance electric fans & aluminum shroud options.
  • Performance or Heavy Duty applications.
  • Efficient Manufacting Arrange & Short lead-time

Customized aluminum welded plate and frame bar plate charge air cooler heat exchanger

Hundreds of Fin Tyoes for charge air cooler bar plate heat exchanger

Customized aluminum welded plate and frame bar plate charge air cooler heat exchanger

Vacuum brazed for bar plate charge air cooler heat exchanger

Customized aluminum welded plate and frame bar plate charge air cooler heat exchanger

Strong Skillful Welding for the bar plate charge air cooler heat exchangers

Service Advantages
  • 3D model drawing available
  • Prototype testing and confirmation
  • Steel frame support, Front to Back type design and manufacturing
  • Easy mounting and maintain, Good anti-vibration
  • Stable Performance & Low Pressure Drop
  • Compact Design & Light Weight
  • Motor & Fan is Optional
  • 12 Month Global Warranty
  • OEM Production is Offered
Customized aluminum welded plate and frame bar plate charge air cooler heat exchanger

Purchasing Guide

You just need to tell us your specific requirements and environmental parameters so that we can make professional quotations accordingly.

Please advise:

Oil parameterFluid
Flow
Inlet temperature (℃)
Cooling power (kw)
Max. allowable pressure drop
Max. work pressure (MPa)
Air parameterFlow
Inlet temperature (℃)
Cooling power (kw)
Max. allowable pressure drop
Max. work pressure (MPa)
Cool air parameterFlow & Pressure curve
Inlet temperature (℃)
Air trace
MountingMax overall dimension
Location of connections
Requirement of structure
Working condition

Customized aluminum welded plate and frame bar plate charge air cooler heat exchanger


Be free to contact us if you need any further supporting, thank you!
