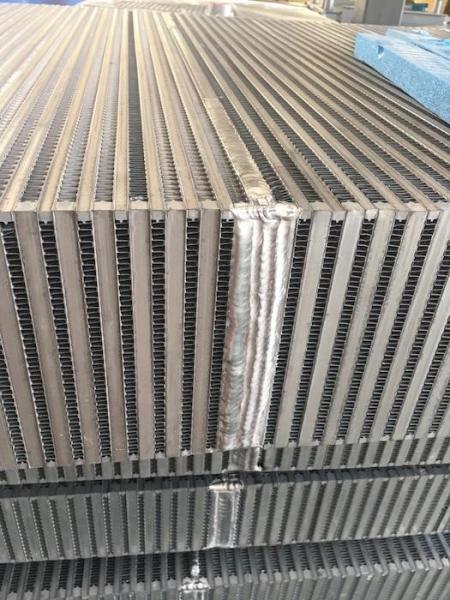

Aluminum bar&plate fin heat exchanger core oil air cooler core
Aluminum bar&plate fin heat exchanger core oil air cooler core
Aluminum bar&plate fin heat exchanger core oil air cooler core
Aluminum bar&plate fin heat exchanger core oil air cooler core
Specifications
Brand Name :
ADV
Model Number :
ADV -WC-01
Certification :
ISO9001
Place of Origin :
Changzhou China
MOQ :
1 Unit
Supply Ability :
1~50 + Units + 25 Working Days
Delivery Time :
7~15 Working Days
Packaging Details :
Wooden Packing
Item :
Oil Air Cooler Core
Material :
AL3003
Technic :
Vacuum Brazing
Max Size :
2.4 Meters Length
Max Pressure :
3.5 Mpa
Test :
Leak Test & Performance Test & Pressure Pulse Test & Vibration Test
Usage :
Bar Plate Heat Exchanger Raw Material
Warranty :
12 month
Description

Aluminum bar&plate radiator core radiator

Description:

Suitable for a wide range of applications, single or dual pass, down flow, or cross flow designs can all be usd in a full range of dimensions to meet your specific needs. Our All-Aluminum Radiators are manufactured by atmosphere controlled furnace brazing to ensure the highest quality and performance.

All-aluminum construction means lighter weight and improved heat transfer over traditional radiators (copper/brass).

Features:

1.Combination welded cores-Air &Oil cores

2.Brazed aluminum core/bar and plate

3.Excellent for field conversions

4.Compact design

5.Light weight

6.Compact,high performance all aluminum core assembly

8.could be assembled with Fan and Fan cover

Aluminum bar&plate fin heat exchanger core oil air cooler core

LAB & Test

1.Leak Test of Every Unit

Aluminum bar&plate fin heat exchanger core oil air cooler core

2.Performance Test

Performance Test: Compressed Air System Water Glycol System Water Glycol System
Flow: 0-48Nm3/min 400L/min 600L/min
Temp: ≤200°C ≤100°C ≤110°C
Max. heating power: 110KW 180KW 240KW

3. Salty Spay Test

we can offer C5 standard preservative treatment preservative treatment, please contact us fr more information

ADV Service
  • 3D model drawing available
  • Prototype testing and confirmation
  • Steel frame support, Front to Back type design and manufacturing
  • Easy mounting and maintain, Good anti-vibration
  • Stable Performance & Low Pressure Drop
  • Compact Design & Light Weight
  • Motor & Fan is Optional
  • 12 Month Global Warranty
  • OEM Production is Offered

Purchasing Guide

You just need to tell us your specific requirements and environmental parameters so that we can make professional quotations accordingly.

Please advise:

Oil parameter Fluid
Flow
Inlet temperature (℃)
Cooling power (kw)
Max. allowable pressure drop
Max. work pressure (MPa)
Air parameter Flow
Inlet temperature (℃)
Cooling power (kw)
Max. allowable pressure drop
Max. work pressure (MPa)
Cool air parameter Flow & Pressure curve
Inlet temperature (℃)
Air trace
Mounting Max overall dimension
Location of connections
Requirement of structure
Working condition

Aluminum bar&plate fin heat exchanger core oil air cooler core

Aluminum bar&plate fin heat exchanger core oil air cooler core

Be free to contact us if you need any further supporting, thank you!
