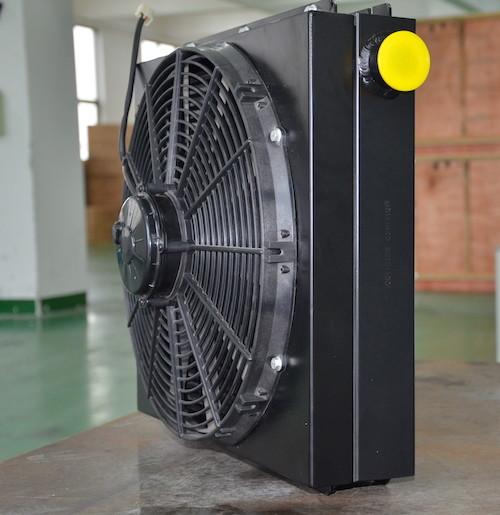

Aluminum intercoole with bar plate air to air heat exchanger design
Aluminum intercoole with bar plate air to air heat exchanger design
Aluminum intercoole with bar plate air to air heat exchanger design
Aluminum intercoole with bar plate air to air heat exchanger design
Specifications
Brand Name :
ADV
Model Number :
ADV -AC-14
Certification :
ISO9001
Place of Origin :
Changzhou China
MOQ :
1 Unit
Supply Ability :
1~50 + Units + 25 Working Days
Delivery Time :
7~15 Working Days
Packaging Details :
Wooden Packing
Product :
Aluminum Air to Air Heat Exchanger
Material :
AL3003
Technic :
Vacuum Brazing
Usage :
Automotive, Industry Machinery Air cooler
Max Size :
2.4 Meters Length
Max Pressure :
3.5 Mpa
Test :
Leak Test & Performance Test & Pressure Pulse Test & Vibration Test
OEM :
Available
Description
Intercooler kit aluminum bar & plate air cooler kit with motor and fan ​​

Description

Air Cooled Heat Exchangers are a type of heat exchanger design commonly used in mobile applications where a liquid coolant supply isn't available such as automotive and construction vehicles. As the name suggests, air cooled heat exchangers provide a cooling solution for fluids using air which is driven through a fin core by an electrical, hydraulic or mechanically driven fan. Air Cooled Heat Exchangers can be supplied to cool a single fluid, such as engine water, or a combination of fluids as part of a cooling pack which can often include 3 fluid circuits cooled by a single fan.

Our Service
  • 3D model drawing available
  • Prototype testing and confirmation
  • Steel frame support, Front to Back type design and manufacturing
  • Easy mounting and maintain, Good anti-vibration
  • Stable Performance & Low Pressure Drop
  • Compact Design & Light Weight
  • 12 Month Global Warranty
  • OEM Production is Offered

Aluminum intercoole with bar plate air to air heat exchanger design

Mechanical Simlution Design to Reduce the Air Resistance to Minimum

Aluminum intercoole with bar plate air to air heat exchanger design

Performance Design Analyse

Aluminum intercoole with bar plate air to air heat exchanger design

Skillfull Welding

Aluminum intercoole with bar plate air to air heat exchanger design

Purchasing Guide For Custom Air to Air Heat Exchanger


You just need to tell us your specific requirements and environmental parameters so that we can make professional quotations accordingly.

Please advise:

Oil parameter Fluid
Flow
Inlet temperature (℃)
Cooling power (kw)
Max. allowable pressure drop
Max. work pressure (MPa)
Air parameter Flow
Inlet temperature (℃)
Cooling power (kw)
Max. allowable pressure drop
Max. work pressure (MPa)
Cool air parameter Flow & Pressure curve
Inlet temperature (℃)
Air trace
Mounting Max overall dimension
Location of connections
Requirement of structure
Working condition

Aluminum intercoole with bar plate air to air heat exchanger design

Be free to contact us if you need any further information, thank you!
