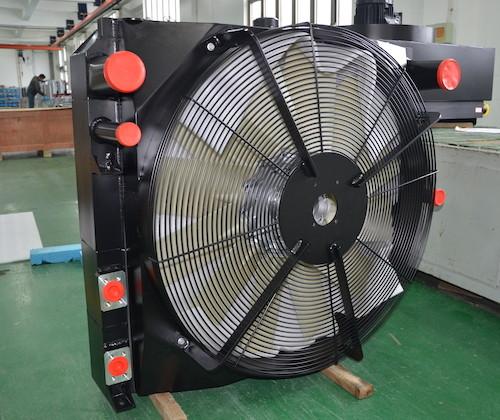

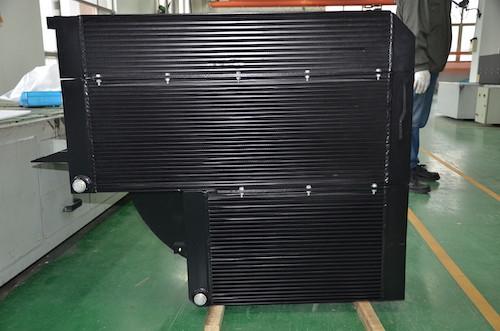

Aluminum after coolers air to air heat exchangers for Agriculture Machinery
Aluminum after coolers air to air heat exchangers for Agriculture Machinery
Aluminum after coolers air to air heat exchangers for Agriculture Machinery
Aluminum after coolers air to air heat exchangers for Agriculture Machinery
Specifications
Brand Name :
ADV
Model Number :
ADV -AC-02
Certification :
ISO9001
Place of Origin :
Changzhou China
MOQ :
1 Unit
Supply Ability :
1~50 + Units + 25 Working Days
Delivery Time :
7~15 Working Days
Packaging Details :
Wooden Packing
Product :
Air to air heat exchanger
Material :
Aluminum AL3003
Technic :
Vacuum Brazing
Cooling Type :
AA After Cooler, ACOC After Cooler
Usage :
Agriculture Machinery, Industry Compressed Air
Test :
Leak Test & Performance Test & Pressure Pulse Test & Vibration Test
Customization :
Design base on your application
Warranty :
12 Month
Description
AC cooler aluminum air cooler, aluminum bar & plate air to air cooler for Agriculture Machinery


Description

By cooperationg with our OEM customers in many projects , we have gained vast experience of Air to air heat exchanger​ in designning, testing and manufacturing for Agriculture Machinery​. The bar & plate air to air heat exchaners are proved most efficient & Capability for the Agriculture application. This stacking of bars, plates, and fins, is then brazed together, creating a single, solid pass to allow tanks to be welded directly on the core. This type of construction results in much stronger solution for the more demanding applications since it can withstand higher pressures shock and temperatures.
We are proud to introduce us as a high quality AA After Cooler, ACOC After Cooler, General air to air heat exchanger supplier !

Features

  • Combination Welded Cores (Air/Oil)
  • Brazed Aluminum Core / Bar & Plate
  • Excellent for Field Conversions
  • Vertical Air Flow
  • Compact Design
  • Light Weight​

Pressure, Temperature & Flows

​

High Flows up to 3500 scfm
Low Flows less than 20 scfm
Test pressure 300 psi
Operating temperature 350 F

Aluminum after coolers air to air heat exchangers for Agriculture Machinery

ADV Service Advantages
  • 3D model drawing available
  • Prototype testing and confirmation
  • Steel frame support, Front to Back type design and manufacturing
  • Easy mounting and maintain, Good anti-vibration
  • Stable Performance & Low Pressure Drop
  • Compact Design & Light Weight
  • 12 Month Global Warranty
  • OEM Production is Offered

Aluminum after coolers air to air heat exchangers for Agriculture Machinery

Aluminum after coolers air to air heat exchangers for Agriculture Machinery

Aluminum after coolers air to air heat exchangers for Agriculture Machinery

Aluminum after coolers air to air heat exchangers for Agriculture Machinery



Purchasing Guide


You just need to tell us your specific requirements and environmental parameters so that we can make professional quotations accordingly.

Please advise:

Oil parameter Fluid
Flow
Inlet temperature (℃)
Cooling power (kw)
Max. allowable pressure drop
Max. work pressure (MPa)
Air parameter Flow
Inlet temperature (℃)
Cooling power (kw)
Max. allowable pressure drop
Max. work pressure (MPa)
Cool air parameter Flow & Pressure curve
Inlet temperature (℃)
Air trace
Mounting Max overall dimension
Location of connections
Requirement of structure
Working condition

Aluminum after coolers air to air heat exchangers for Agriculture Machinery

Be free to contact us if you need any further information, thank you!
