Custom Combinat air cooled heat exchangers for industrial applications
Custom Combinat air cooled heat exchangers for industrial applications
Custom Combinat air cooled heat exchangers for industrial applications
Custom Combinat air cooled heat exchangers for industrial applications
Specifications
Brand Name :
ADV
Model Number :
ADV -BP-17
Certification :
ISO9001
Place of Origin :
Changzhou China
MOQ :
1 Unit
Supply Ability :
1~50 + Units + 25 Working Days
Delivery Time :
1~25 Working Days
Packaging Details :
Wooden Packing
Name :
Custom Combinat heat exchanger
Type :
Air Cooled Oil Cooler/ Air Cooler / Radiators
Structure :
Bar Plate Heat Exchanger / Plate Fin Heat Exchanger
Material :
AL3003
Technic :
Vacuum Brazing
Maximum working pressure :
15bar Or Customized
Application :
Industrial, Automotive, Machinery
Test :
Leak Test & Performance Test & Pressure Pulse Test & Vibration Test
Antiseptic treatment :
＞1440h, C5 standard
Warranty :
12 Month
Description

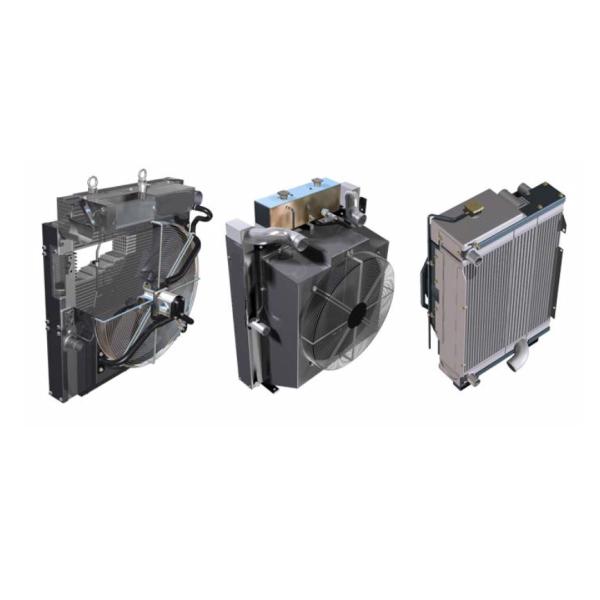

Custom Combination air cooled heat exchangers for industrial applications​

Description

The Custom-Combination air cooled heat exchangeruses can push the air, either from a fan or the movement of the vehicle, to cool down a system, engine, transmission or the hydraulic oil. ADV is a professionaly company in designing combination cooling packs, utilising air coolers, radiators and oil coolers into a single unit.

Thanks to the strong and light weight bar plate construction, we can design and manufacturng the most high efficient economic cost and long life using combination air cooled heat exchangers.

ADV Service Advantages

  • 3D model drawing available
  • Prototype testing and confirmation
  • Steel frame support, Front to Back type design and manufacturing
  • N15085 welding standard
  • Stable Performance & Low Pressure Drop
  • Compact Design & Light Weight Combination air cooled heat exchangers
  • C5 Antiseptic Treatment ＞1440h salty Spay Test without red & white point
  • Motor & Fan is OEM Optional
  • 12 Month Global Warranty
  • OEM Production is Offerered

Custom Combinat air cooled heat exchangers for industrial applications

Custom Combination heat exchangers​ 3D Model

Custom Combinat air cooled heat exchangers for industrial applications

Custom Fins for Combinat heat exchangers​

Custom Combinat air cooled heat exchangers for industrial applications

Custom Mechanical Shroud for Combinat heat exchangers​​

Custom Combinat air cooled heat exchangers for industrial applications

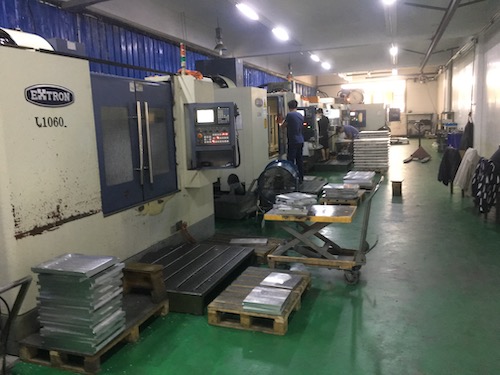

Vacuum Brazing Work Shop

Enquiry from for Custom-Combination air cooled heat exchangers

Oil Parameter Fluid
Flow
Inlet temperature(℃)
Cooling power(kw)
Max. Allowable Pressure Drop
(MPa) Max. work pressure
Air Parameter Flow
Inlet temperature(℃)
Cooling power(kw)
Max. allowable pressure drop
(MPa) Max. work pressure
Cool Air Parameter Flow & pressure curve
Inlet temperature(℃)
Air Trace
Mounting Max Overall Dimension
Location of Connections
Requirement of Structure
Working Condition

Custom Combinat air cooled heat exchangers for industrial applications

Be free to contact us if you need any further information, merci !
