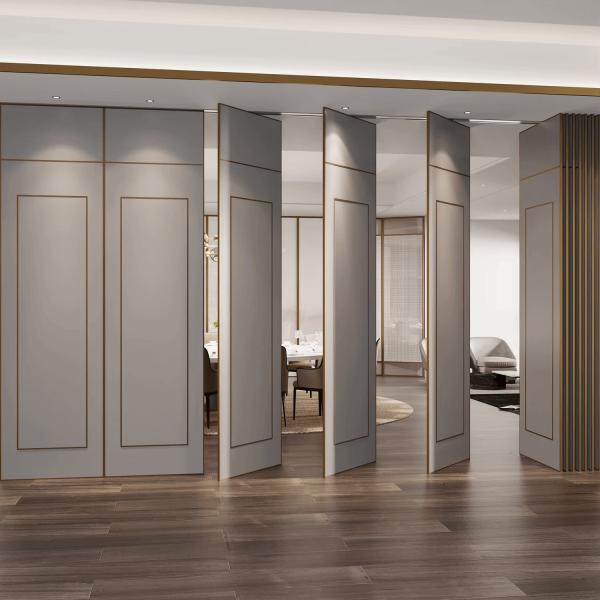

Commercial Folding Room Partition Wall , Operable Folding Partition Doors Movable Walls
Commercial Folding Room Partition Wall , Operable Folding Partition Doors Movable Walls
Commercial Folding Room Partition Wall , Operable Folding Partition Doors Movable Walls
Commercial Folding Room Partition Wall , Operable Folding Partition Doors Movable Walls
Specifications
Brand Name :
AE
Model Number :
AE100
Certification :
ISO9001 SGS
Place of Origin :
Guangdong, China
MOQ :
10 Square Meter
Price :
USD 80-108 Per Square Meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 SQUARE METER PER MONTH
Delivery Time :
20-30days for 10-100㎡, if more than 100㎡need to be negotiated
Packaging Details :
foam layer and hard cardboard with plywood case or steel pallet
Product Name :
Folding Room Partition Wall
Material :
Aluminium And Mdf Board
Finishing option :
Customer-supplied Materials
Height :
Up to18M
Design :
OEM & ODM
Sound Insulation :
Max 56dB
Description
Commercial Folding Room Operable Partition Wall System Sliding Door Partitions


Our Commercial Folding Room Operable Partition Wall System offers versatile sliding door partitions that transform spaces with ease. Perfect for dynamic environments, these partitions provide flexible room configurations, enhancing space utilization efficiently. Featuring smooth, quiet operation and high-quality materials, they ensure excellent sound insulation and a sleek appearance. Ideal for offices, conference rooms, and event spaces, our system maximizes functionality while blending seamlessly into your interior design.

Advantages:


1.Secure Soundproofing: Our folding room partition features interlocking male and female trapezoidal vertical aluminum profiles for effective soundproof connections between panels.

2.Enhanced Friction Connection: Integrated magnetic strips ensure a strong and secure friction connection between movable room partitions.

3.Adjustable Panels: Easily adjust the operable partition wall elements post-installation for optimal flexibility and alignment.

4.Durable Track System: The movable wall track system is made of extruded aluminum with heavy-duty ball bearing steel rollers, offering maintenance-free operation and robust performance.


Roller Option & Feature


1. Dupont POM roller

2. 304 stainless steel heavy duty roller with safety device & CNC machining

3. Unique and patented wheel surface and shape make the whole movable partition easy to use

Panel Option & Feature


1. Thickness: 68mm & 89mm & 105mm

2. Wide variety of acoustical and decorative finishes available

3. 6061-T6 profile and inside Q235 steel frame for superior durability

4 Top & bottom jack lifting mechanism seal are with power of 800N. Magnetic seal in concave & convex profile has magnetic attraction of 40N/m.

SPECIFICATION:

GEMMAN PARTITION TECHNOLOGY GLOBAL PROFESSONAL SPACE SOLUTIONS
　 Dimensions in mm* Design
Series Element thickness Element width* (min./max.) Clear height* (min./max.) Framed construction Panel fixing Element interconnection/design of
the vertical profiles
AE65 68 600/1,250 2,000/4,500 Aluminium-steel Freely oscillating Aluminium profile
with magnetic strip
and sealing lips
AE85 89 600/1,250 2,000/5,500 Aluminium-steel Freely oscillating Aluminium profile
with magnetic strip
and sealing lips
AE100 105 600/1,250 2,000/18,000 Aluminium-steel Freely oscillating Aluminium profile
with magnetic strip
and sealing lips
Technology:
Weighted sound reduction value determined per GB/T19889.3-2005 in Rw (dB):52/56
Positive and frictional locking of the vertical element connections: Convex-concave profile form, force of attraction of the magnetic strip 40 N/m
* Larger widths possible on application. Provisional details regarding the element heights/element
widths indicated can only be confirmed following consultation with the Design Department.
** Depending on the sound insulation/weight

PROJECT:

Commercial Folding Room Partition Wall , Operable Folding Partition Doors Movable WallsCommercial Folding Room Partition Wall , Operable Folding Partition Doors Movable Walls


ABOUT US:
Commercial Folding Room Partition Wall , Operable Folding Partition Doors Movable WallsCommercial Folding Room Partition Wall , Operable Folding Partition Doors Movable Walls
