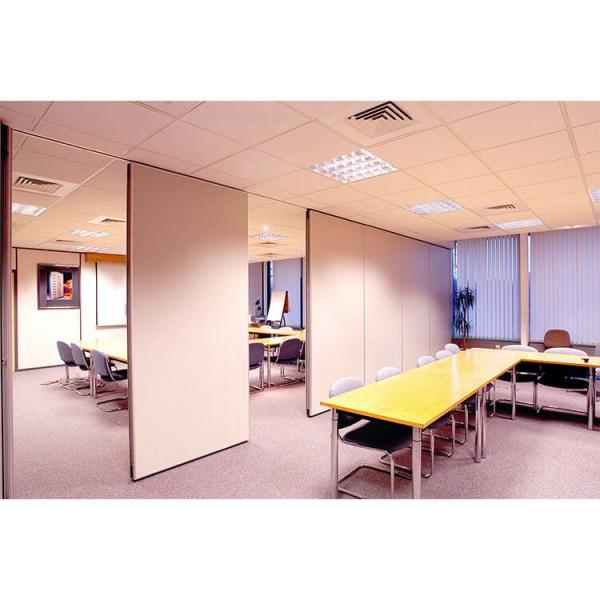

Office Building Wooden Partition Wall Customized Operable Panel Partitions
Office Building Wooden Partition Wall Customized Operable Panel Partitions
Office Building Wooden Partition Wall Customized Operable Panel Partitions
Office Building Wooden Partition Wall Customized Operable Panel Partitions
Office Building Wooden Partition Wall Customized Operable Panel Partitions
Office Building Wooden Partition Wall Customized Operable Panel Partitions
Specifications
Brand Name :
AE
Model Number :
AE65
Certification :
ISO9001 SGS
Place of Origin :
Guangdong, China
MOQ :
10 Square Meter
Price :
USD59-89 Per Square Meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 SQUARE METER PER MONTH
Delivery Time :
20-30days for 10-100㎡, if more than 100㎡need to be negotiated
Packaging Details :
foam layer and hard cardboard with plywood case or steel pallet
Series :
Wooden Partition Wall
Application :
convention center, Office building
Finishing option :
Fireproof Laminate Board
Dimensions :
Customization ( Height: up to 4.5M, Width per Panel: up to 1.2M)
Design :
OEM & ODM
Sound Insulation :
Max 42dB
Description

Tailored Solutions for Office Building Wooden Partition Wall with 68cm thickness panel

High quality AE operable partition walls are suitable for sights, where the spaces are desired to be divided quickly into different parts. The spaces can be made multifunctional and they will transform according to the need, into closed or open entireties.

AE Partition also offers the highest level of technical perfection, whether in terms of meeting structural-physical requirements or low maintenance costs. Our partition wall system provides first-class sound insulation along with excellent statics

We have full confidence in achieving your quality level, Hear are the brief introduction of our advantages as follows:

1. German Partition Technology Global Professional Space Solutions

2. Experience in doing project with heavy customers

3. Delivery time control for decent orders

4. Designing team for new products & solutions development.

5. The performance of the product is certified by SGS & ILAC-MRA

6. German Partition Technology & Global Professional Space Solutions

7. Increase the Longevity of Your Specialty Products

8. Quick follow up with quote

9. Site inspections

Roller Options & Advantages:

  1. Dupont POM Rollers: Designed for high performance and durability.
  2. 304 Stainless Steel Heavy-Duty Rollers: Equipped with safety devices and CNC precision for robust functionality.
  3. Patented Wheel Design: Unique surface and shape ensure smooth and easy movement across the partition system.

Panel Options & Advantages:

  1. Versatile Thickness Choices: Available in 68mm, 89mm, and 105mm to accommodate different acoustic and structural requirements.
  2. Wide Finish Selection: A diverse range of acoustical and decorative finishes to suit various design aesthetics.
  3. Sturdy Construction: Crafted with 6061-T6 profiles and an internal Q235 steel frame for enhanced durability.
  4. Advanced Sealing Mechanism: Jack lifting seals deliver 800N of force, while magnetic seals provide 40N/m of magnetic attraction for superior performance.

SPECIFICATION:

GEMMAN PARTITION TECHNOLOGY GLOBAL PROFESSONAL SPACE SOLUTIONS
　 Dimensions in mm* Design
Series Element thickness Element width* (min./max.) Clear height* (min./max.) Framed construction Panel fixing Element interconnection/design of
the vertical profiles
AE65 68 600/1,250 2,000/4,500 Aluminium-steel Freely oscillating Aluminium profile
with magnetic strip
and sealing lips
AE85 89 600/1,250 2,000/5,500 Aluminium-steel Freely oscillating Aluminium profile
with magnetic strip
and sealing lips
AE100 105 600/1,250 2,000/18,000 Aluminium-steel Freely oscillating Aluminium profile
with magnetic strip
and sealing lips
Technology:
Weighted sound reduction value determined per GB/T19889.3-2005 in Rw (dB):52/56
Positive and frictional locking of the vertical element connections: Convex-concave profile form, force of attraction of the magnetic strip 40 N/m
* Larger widths possible on application. Provisional details regarding the element heights/element
widths indicated can only be confirmed following consultation with the Design Department.
** Depending on the sound insulation/weight

PROJECT:

Office Building Wooden Partition Wall Customized Operable Panel Partitions

Office Building Wooden Partition Wall Customized Operable Panel Partitions

ABOUT US:

Office Building Wooden Partition Wall Customized Operable Panel Partitions

Office Building Wooden Partition Wall Customized Operable Panel Partitions

Office Building Wooden Partition Wall Customized Operable Panel Partitions
