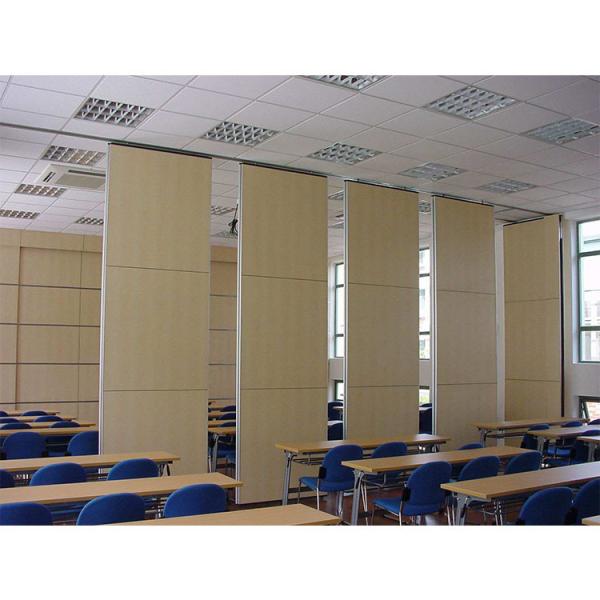

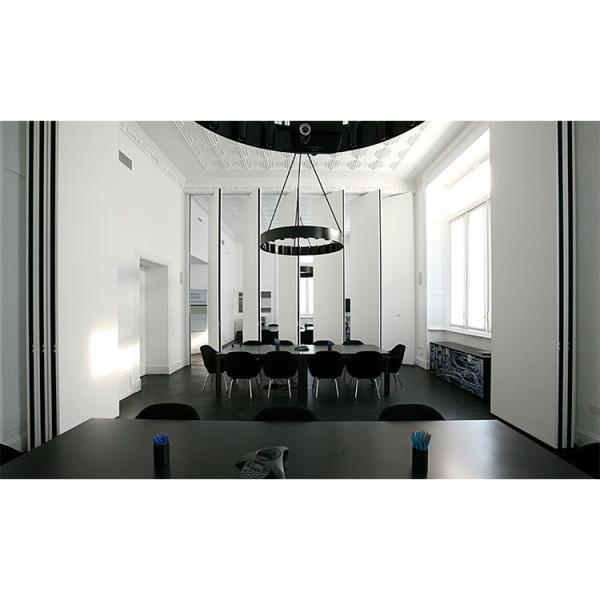

89cm Thickness Hotel MDF Operable Panel Partitions With Sliding Partition Doors
89cm Thickness Hotel MDF Operable Panel Partitions With Sliding Partition Doors
89cm Thickness Hotel MDF Operable Panel Partitions With Sliding Partition Doors
89cm Thickness Hotel MDF Operable Panel Partitions With Sliding Partition Doors
89cm Thickness Hotel MDF Operable Panel Partitions With Sliding Partition Doors
89cm Thickness Hotel MDF Operable Panel Partitions With Sliding Partition Doors
Specifications
Brand Name :
AE
Model Number :
AE85
Certification :
ISO9001 SGS CANS
Place of Origin :
Guangdong, China
MOQ :
10 Square Meter
Price :
USD 79-108 per square meter
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
1000 SQUARE METER PER MONTH
Delivery Time :
20-30days for 10-100㎡, if more than 100㎡need to be negotiated
Packaging Details :
foam layer and hard cardboard with plywood case or steel pallet
Product :
AE85 Movable Partition Wall
Base Board :
MDF board
Compliance :
Meeting room, Office building
Thickness :
89CM
STC Rating :
42-56dB
Dimensions :
Customization (Height: up to 6M, Width per Panel: up to 1.2M)
Description

89cm Thickness MDF Operable Panel Partitions with Sliding Partition Doors for Hotel

AE operable partitions are a series of panels suspended from tracks.

Installed operable partition is manually hand operabled, composed of several panels to operate and does not reqiure special apparatus and tools.

The only tool required is the operating handle to lock and operate the top and bottom mechanical seals to seal off the operable panels acoustically.

AE sound-rated operable partitions are availabe in paired, individual(omni-directional)and continuously-hinged(train) configuration.

What we offer:

1.Experience in doing project with heavy customers

2.Delivery time control for decent orders

3.Designing team for new products & solutions development.

4.The performance of the product is certified by SGS & ILAC-MRA

5. German Partition Technology & Global Professional Space Solutions

6.Increase the Longevity of Your Specialty Products

Roller Option & Feature:

1. Dupont POM roller

2. 304 stainless steel heavy duty roller with safety device & CNC machining

3. Unique and patented wheel surface and shape make the whole movable partition easy to use

Panel Option & Feature

1. Thickness: 68mm & 89mm & 105mm

2. Wide variety of acoustical and decorative finishes available

3. 6061-T6 profile and inside Q235 steel frame for superior durability

4 Top & bottom jack lifting mechanism seal are with power of 800N. Magnetic seal in concave & convex profile has magnetic attraction of 40N/m,

Specification:

GEMMAN PARTITION TECHNOLOGY GLOBAL PROFESSONAL SPACE SOLUTIONS
　 Dimensions in mm* Design
Series Element thickness Element width* (min./max.) Clear height* (min./max.) Framed construction Panel fixing Element interconnection/design of
the vertical profiles
AE65 68 600/1,250 2,000/4,500 Aluminium-steel Freely oscillating Aluminium profile
with magnetic strip
and sealing lips
AE85 89 600/1,250 2,000/5,500 Aluminium-steel Freely oscillating Aluminium profile
with magnetic strip
and sealing lips
AE100 105 600/1,250 2,000/18,000 Aluminium-steel Freely oscillating Aluminium profile
with magnetic strip
and sealing lips

Technology:
Weighted sound reduction value determined per GB/T19889.3-2005 in Rw (dB):52/56
Positive and frictional locking of the vertical element connections: Convex-concave profile form, force of attraction of the magnetic strip 40 N/m
* Larger widths possible on application. Provisional details regarding the element heights/element
widths indicated can only be confirmed following consultation with the Design Department.
** Depending on the sound insulation/weight
