Specifications
Brand Name :
AE
Model Number :
AE100
Certification :
ISO9001 SGS
Place of Origin :
Guangdong, China
MOQ :
10 Square Meter
Price :
USD 80-108 Per Square Meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 SQUARE METER PER MONTH
Delivery Time :
20-30days for 10-100㎡, if more than 100㎡need to be negotiated
Packaging Details :
foam layer and hard cardboard with plywood case or steel pallet
Product Name :
Wooden Sliding Folding Partition
Application :
Conference Hall Partitions
Finishing option :
Customer-supplied Materials
Height :
Up to18M
Design :
OEM & ODM
Sound Insulation :
Max 56dB
Description

Operable Wood Sliding Folding Acoustic Partitions Wall For Conference Hall


Operable Acoustic Partition Walls


AE operable walls offer durable and visually appealing acoustic partitions designed to last. Choose from a wide range of surface finishes, including standard laminate, real wood veneers, painted finishes, blackboard, or custom options like painting and wallpapering.


Seamless and Flexible Design
Our conference room partitions are top-hung, eliminating floor tracks and accommodating uneven floors. They provide exceptional sound reduction, with capabilities up to 52dB.


Customizable Features
Options include full-height or inset pass doors and glazing panels. Each panel is easily operated with a winding handle, securing mechanical seals at the top and bottom.


High-Quality Construction
Manufactured in China, our partitions are robust and easy to maneuver. Panels can be stacked in-line or off-line, with various track configurations to meet your specific requirements.


Roller Option & Feature


1. Dupont POM roller

2. 304 stainless steel heavy duty roller with safety device & CNC machining

3. Unique and patented wheel surface and shape make the whole movable partition easy to use

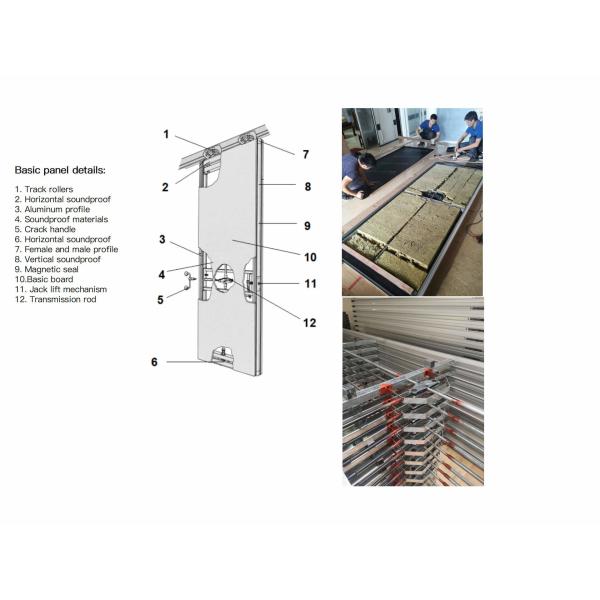

Panel Option & Feature


1. Thickness: 68mm & 89mm & 105mm

2. Wide variety of acoustical and decorative finishes available

3. 6061-T6 profile and inside Q235 steel frame for superior durability

4 Top & bottom jack lifting mechanism seal are with power of 800N. Magnetic seal in concave & convex profile has magnetic attraction of 40N/m.

SPECIFICATION:

GEMMAN PARTITION TECHNOLOGY GLOBAL PROFESSONAL SPACE SOLUTIONS
　 Dimensions in mm* Design
Series Element thickness Element width* (min./max.) Clear height* (min./max.) Framed construction Panel fixing Element interconnection/design of
the vertical profiles
AE65 68 600/1,250 2,000/4,500 Aluminium-steel Freely oscillating Aluminium profile
with magnetic strip
and sealing lips
AE85 89 600/1,250 2,000/5,500 Aluminium-steel Freely oscillating Aluminium profile
with magnetic strip
and sealing lips
AE100 105 600/1,250 2,000/18,000 Aluminium-steel Freely oscillating Aluminium profile
with magnetic strip
and sealing lips
Technology:
Weighted sound reduction value determined per GB/T19889.3-2005 in Rw (dB):52/56
Positive and frictional locking of the vertical element connections: Convex-concave profile form, force of attraction of the magnetic strip 40 N/m
* Larger widths possible on application. Provisional details regarding the element heights/element
widths indicated can only be confirmed following consultation with the Design Department.
** Depending on the sound insulation/weight
