Self Propelled Work Platform , Single Man Lift For Quick Maintenance
Self Propelled Work Platform , Single Man Lift For Quick Maintenance
Specifications
Brand Name :
SIVGE
Model Number :
GTWZ6-1006
Certification :
CE/ISO9001/ISO14001/OHSAS18001
Place of Origin :
China
MOQ :
1 Set
Price :
negotiation
Payment Terms :
L/C, T/T, D/P
Supply Ability :
100 units per month
Delivery Time :
15-30 working days
Packaging Details :
10PC/20GP; plywood case for LCL
name :
aerial work platform
Rated load :
136kg
Number of persons allowed :
1 person
Size of platform :
650*630mm
Stowed dimension :
1430*800*1980mm
Standard :
CE/TUV/SGS
Move method :
self-propelled
Max.working height :
8meter
Description

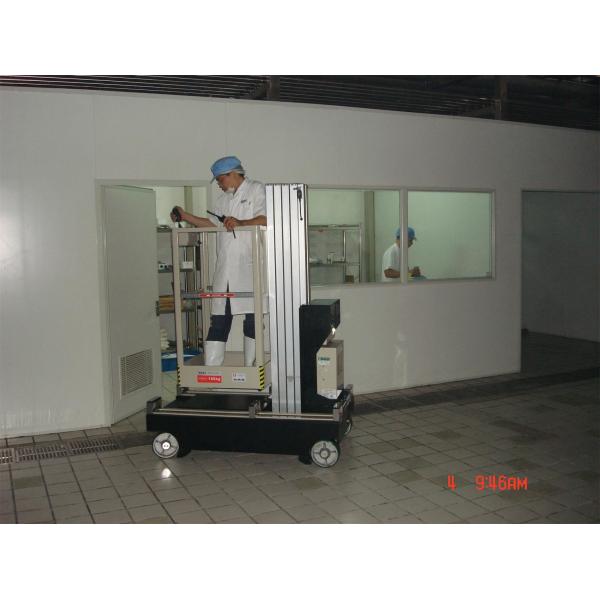

GTWZ6-1006 self-propelled aerial vertical one man lift / mobile work platform for quick maintenance

CE certificated

Suitable for one person work on

Best quality and performance

Good reliable after-sales service

Specifications of

GTWZ6-1006 self-propelled aerial vertical one man lift / mobile work platform for quick maintenance

Manufacturer SIVGE
Country of origin China
Model GTWZ6-1006
Max. Platform height 6.0 m
Max. Working height 8.0 m
Platform capacity 136kg
Platform dimension 630×650mm
Stowed height 1980mm
Stowed length 1430mm
Stowed width 800mm
Machine weight about 830kg
Power supply DC24V with rechargeable battery(2*12V 120Ah)
Power input 0.8kw
Traveling speed 2.5km/h when stored; 0.8km/h once lifted
Climb ability 20%
Ground clearance 80mm
Parking brake Loss of power brake
Standard CE (EN280)
Qty. for FCL 10PCS/20GP

STANDRAD FEATURES

  • Drivable at full height
  • One-hand proportional joystick
  • Dual controls operation (platform and ground)
  • Emergency stop buttons at both controls
  • Emergency lowering device in case of power supply failure
  • 24V safe control voltage
  • Tilt audible alarm
  • Forklift pocket
  • Smooth, solid and non-marking tires
  • Maintenance-free battery, with battery charge indictor
  • Two drive speed(0.8km/h when lift up; 2.5km/h stored)

Material & Design advantages

  1. Main Electrical components (such as buttons, key switch) that appear to the air are water-proof type with IP54.
  2. Lifting limit switch is a key component for machine safety; we choose the more reliable brand OMRON.
  3. Original hydraulic system (including pump, motor and valves): Brand Hydr-app from Italy.
  4. Adopt international high-class hydraulic seals, Origin: Germany
  5. Patented guide roller device (installed within the masts) make the masts cooperate smoothly without clearance between them and the platform ascending and descending stably.
  6. The hydraulic pipe that we use is steel pipe (even we use hammer to hit against the pipe, the pipe will not break with oil leakage) while others usually use hose which is easy for leaking and damage by hit or during usage.
  7. Mast cover: PU mast cover protects the masts from dusts, and will not hurt your fingers which the steel cover cannot achieve.
Packing & Shipping

LCL: plywood case with steel pallet at bottom

FCL: steel pallet with anti-rust covers

Delivery time is usually 30 days according to order qty. and models.

After-sale Service

  • To provide a lifetime goods services for all Sivge equipments, included equipment maintenance, spare parts supply, provide manuals and video,etc.
  • To provide remote service support by phone and network freely.
