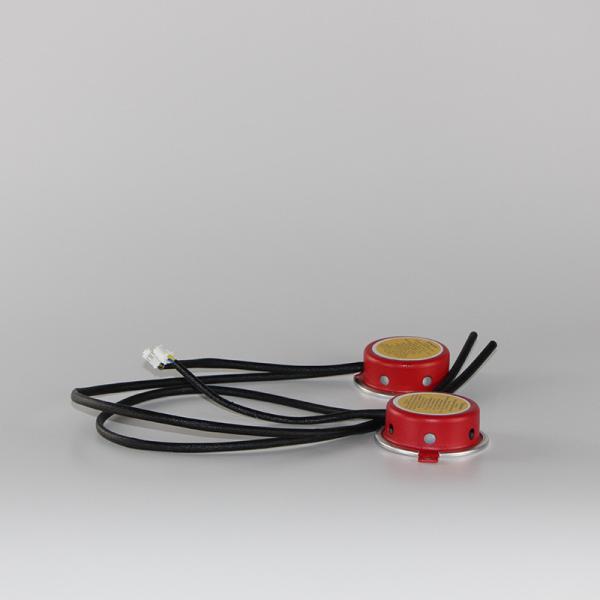

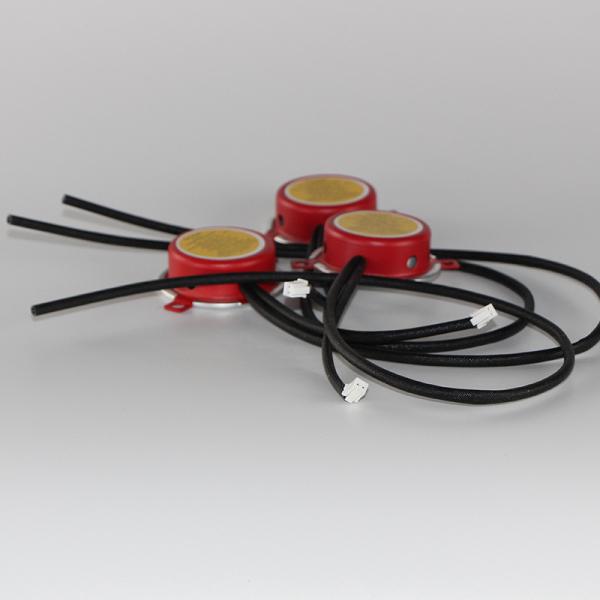

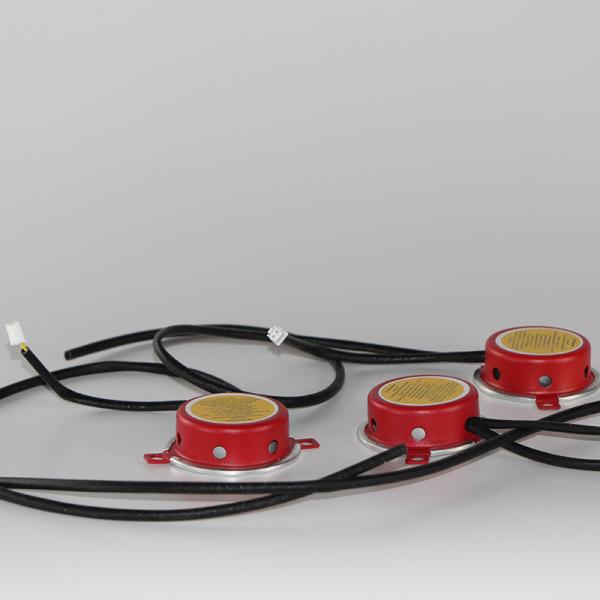

Advanced Technology Aerosol Type Fire Extinguisher With 10g Agent

Since the phase out of Halon extinguishers in the 1980s, hot aerosol fire suppression technology has gained much attention. Unlike traditional inert gas, foam, water mist and Halon fire suppression agents, hot aerosol fire extinguishing agents do not need to be driven out by pressurized gases and can extinguish class A, B, C, D and K fires at 30 to 200 g/m3. As substitutes for Halon agents, the ODP and GWP values of hot fire extinguishing aerosols are nearly zero, but those fine aerosol particles can cause adverse health effects once inhaled by human.

Technical details:

Type inspection result:

• Test standard: GA 499.1 -2004
• Test institute: CNCF (China National Center for Quality Supervision and Test of Fixed Fire-fighting Systems and Fire-resisting Building Components)
• Test: Type inspection
• Appearance: The surface coating is uniform, smooth
• Fasteners:Solid, sheet metal stamping
• Material:The housing and all parts and components shall be of corrosion resistant materials and shall be corrosion resistant
• Thermal spacing of non - temperature limiting fire extinguishing devices:

Thermal spacing is 0.02m: maximum 65℃

Thermal spacing is 0.04m: maximum 55℃

Thermal spacing is 0.08m: maximum 50℃

• The surface temperature:

During discharging: 152℃maximum

After discharging: 90℃ maximum

• Fire extinguisher environmental adaptability:maximum+ 95℃ in high temperature/ maximum -50℃ in cold temperature
• Thermal line environmental adaptability:maximum+ 95℃ in high temperature/ maximum -50℃ in cold temperature
• Agent Electrical insulation: ＞3kv
• Toxicity :no
• Drop rate of dust:3.0g/m³
• Hygroscopicity of solid deposition:0.4m/m
• Insulation strength of solid precipitate: 3 megohm
• The PH of the aqueous solution:9.5

As for configurations of hot aerosol fire extinguishing devices, fixed or portable cylindrical canisters are the most common among generation II & III hot aerosol fire extinguishers across the world, while generation I hot aerosol fire suppression systems are integrated with the oil tank as a whole. Some countries like the U.S., Australia, Russia and China, etc. have already developed standards for manufacturing and quality control of hot aerosol fire extinguishing agents and norms for hot aerosol fire extinguishing system design under different fire protection scenarios.
