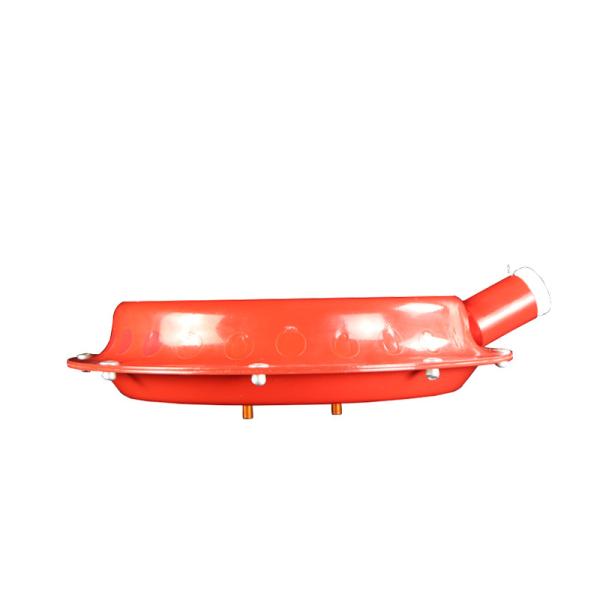

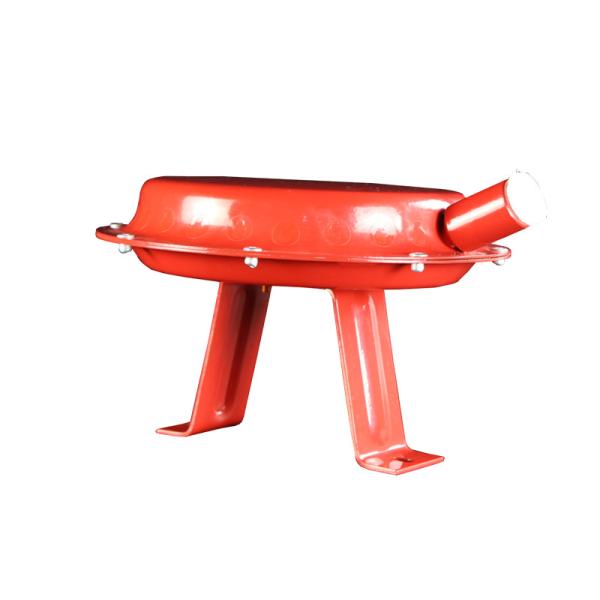

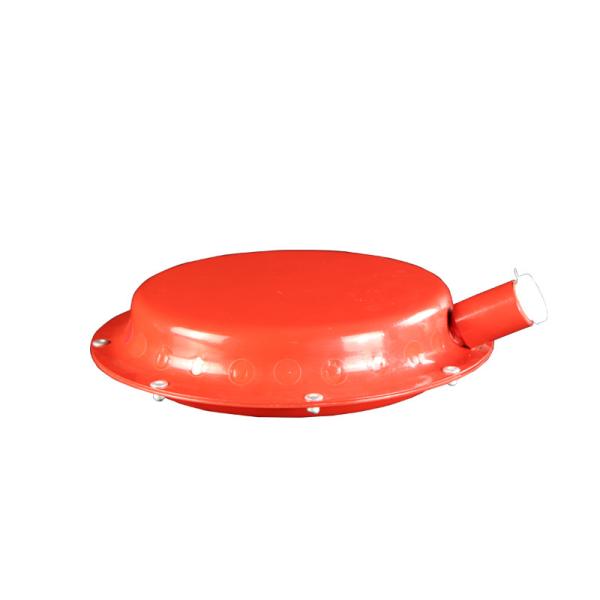

Aerosol Fire Suppression System For Offshore and Marine Fire Protection

Condensed aerosol fire suppression is a particle-based form of fire extinction. It is "condensed" and cooled within the device and discharged as solid particles.

Comparison between dry chemical suppression agents and condensed aerosol agent

• Diameter:

Dry chemical suppression agents which are powder-like particles of a large size - 25–150 micrometres

Condensed aerosols are defined as those which release finely-divided solids of less than 10 micrometres

• Mass Median Aerodynamic Diameter (MMAD)

The solid particulates have a considerably smaller

Dry chemical suppression agents larger

• Residue

Condensed particles remain airborne significantly longer and leave much less residue within the protected area

• Fire extinguishing way

Condensed aerosols are flooding agents, therefore effective regardless of the location and height of the fire flames

Dry chemical systems, which must be directly aimed at the flame

• Starting method

Condensed extinguisher can be started by means of mechanical operation, electric operation, or combined electro-mechanical operation

Other types are manually

What features of Offshore and Marine Aerosol Fire Suppression System?

• Protects engine rooms and machinery spaces up to 125m³
• Pre-engineered, automatically total flooding system
• The safest way to combat an engine room fire where is unattended
• Automatic discharge at 194°F (90°C) or 230°F (110°C) or with optional manual release
• Effectively Halon replacement clean agent
• No water or powdery residue that will damage the machines, no need clean
• Simple installation, direct installation with screws
• 10-Year Limited Warranty,the longest life service life extinguisher in market

Technical parameters
