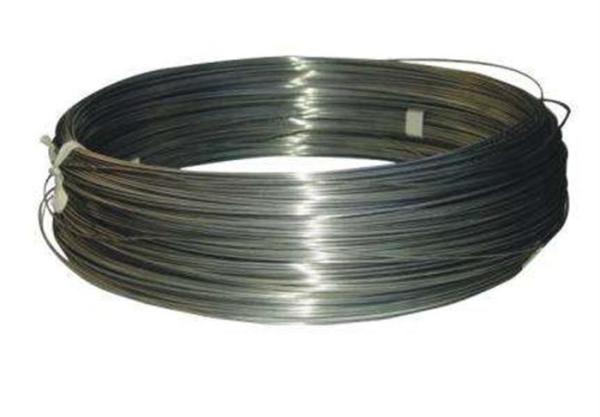

3005 Aluminium Alloy Wire High Electrical Conductivity 0 . 3 - 20MM Diameter
3005 Aluminium Alloy Wire High Electrical Conductivity 0 . 3 - 20MM Diameter
3005 Aluminium Alloy Wire High Electrical Conductivity 0 . 3 - 20MM Diameter
3005 Aluminium Alloy Wire High Electrical Conductivity 0 . 3 - 20MM Diameter
3005 Aluminium Alloy Wire High Electrical Conductivity 0 . 3 - 20MM Diameter
3005 Aluminium Alloy Wire High Electrical Conductivity 0 . 3 - 20MM Diameter
Specifications
Model Number :
3005
Certification :
SGS, BV, ASTM, etc
Place of Origin :
China or Imported
MOQ :
As Request
Price :
Negotiable
Payment Terms :
TT
Delivery Time :
Within 7 days or According to Order
Packaging Details :
Export Standard Wooden Pallet or Case
Product name :
3005 Electrical Conductivity Aluminum Wire
Temper :
H112, H12, H14, etc
Grade :
3005 Alloy
Alloy or not :
Alloy
Type :
Wire
Application :
Industry
Standard :
GB/T 3880-2012
Package :
Wooden Pallet
Supply Ability :
30 Tons/Month
Brand Name :
Domestic or Imported materials
Description

3005 Electrical Conductivity Aluminum Wire

3005 Alloy is an AL-Mn alloy, it’s a rust-proof aluminum material. The strength of 3005 alloy is about 20% higher than 3003 alloy, and the corrosion resistance is also better. 3005 aluminum alloy is commonly used in air conditioners, refrigerators, car bottoms and other humid environments, and is also commonly used in building materials. 3005 Alloy has good formability, weldability, and corrosion resistance, it was used for processing parts that require good formability, high corrosion resistance and solderability.

Chemical Composition WT(%)
Silicon Iron Copper Magnesium Manganese Chromium Zinc Titanium Others Aluminum
0.6 0.7 0.3 0.2~0.6 1~1.5 0.1 0.25 0.1 0.15 Balance

Typical Mechanical Properties

Diameter

(mm)

Tensile Strength

(Mpa)

Yield Strength

(Mpa)

Elongation

(%)
0.3~20 140~180 ≥115 ≥3

Application

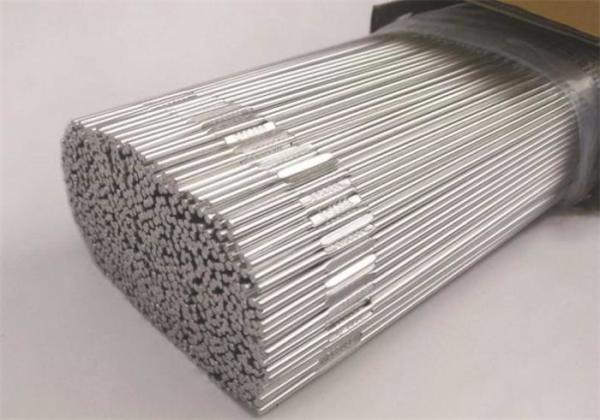

Welding Wire

3005 Aluminium Alloy Wire High Electrical Conductivity 0 . 3 - 20MM Diameter

FAQ

1. Are you a manufacturer or trading company ?
We are Shanghai trading company with procesing machines and stocks, can provide customize size and processing servies.
2. When can I get your reply after the inquiry.
Within 15 minutes during working time, whthin 12 hours during non-working time.
3. How can I get an accurate quote?
Please provide the information of prodcuts standard, material, size and quantity.
4. What is your MOQ?
There is no MOQ with stock size, and others is 100 KG.
5. How long is your delivery time?
Within 5 days for stock size, 15-30 days for customized size.
6. Can you provide smples?
Yes, smples can be offered with only delivery fee.

Our Stock

3005 Aluminium Alloy Wire High Electrical Conductivity 0 . 3 - 20MM Diameter

Sawing Machine

3005 Aluminium Alloy Wire High Electrical Conductivity 0 . 3 - 20MM Diameter

Draft Mill Certificate

3005 Aluminium Alloy Wire High Electrical Conductivity 0 . 3 - 20MM Diameter
