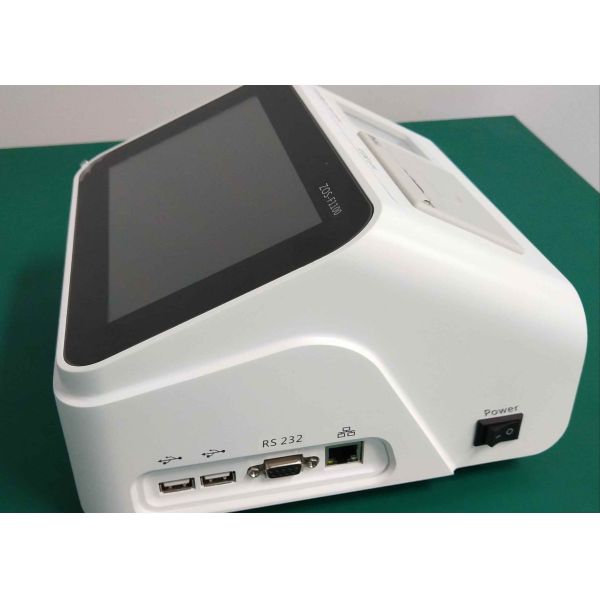

CPU I MX6 Single Channel Immunofluorescence Quantitative Analyzer 3kg
CPU I MX6 Single Channel Immunofluorescence Quantitative Analyzer 3kg
CPU I MX6 Single Channel Immunofluorescence Quantitative Analyzer 3kg
CPU I MX6 Single Channel Immunofluorescence Quantitative Analyzer 3kg
Specifications
Brand Name :
ZOSBIO
Model Number :
ZOS-F1100
Place of Origin :
Henan, China
Model Numbe :
ZOS-F1100
Screen :
7inches
Peripheral interface :
HIS,LIS,External printer
System :
Android system
Printing :
Automatic printing
Description

CPU I MX6 Single Channel Immunofluorescence Quantitative Analyzer 3kg

parameter

CPU: i MX6
Resolution ratio Support resolution below 1080p
Hard disk space 8GB
Memory 1GB
Network conditions Network port
Network operation environment LAN network
Printing system Built in thermal printer
Data processing LIS connection transport supports importing test results and data.
Excitation light source LED
Sample type Whole blood, serum, plasma and urine
Sample management Automatically identify test items. Timely output and transmission of test results
Power parameters Host input——DC 12V,5A;Adapter input——AC 220V,50Hz
Input power 60VA
weight About 3kg

Simple operation instructions

1. Click "Scan QR Code" and set the QR code card as a QR code scanner (about 10cm) to read the project information.

CPU I MX6 Single Channel Immunofluorescence Quantitative Analyzer 3kg

Note:
(1) The QR code of other projects cannot be cross-scanned.
(2) the same article, different batches, two-dimensional code card can not be cross-scanned.
2. Input subject information, select sample type and response mode

CPU I MX6 Single Channel Immunofluorescence Quantitative Analyzer 3kg

Note:
A) Out-machine mode: it means that the reagent card of the sample to be tested is put into the external insulation layer after the sample is added, and the reagent card is put into the machine after the insulation is completed to analyze the sample results.
B) Machine mode: after adding samples, put the reagent card of the samples to be tested directly into the instrument for culture, and the instrument will automatically analyze the sample results after culture.
3. Add the sample: Inhale the sample, add the buffer, and stir well. Add the mixed sample to the reagent card according to the reagent guide suggested for adding the sample.

CPU I MX6 Single Channel Immunofluorescence Quantitative Analyzer 3kg

4. Test: Insert the bar code end of the reagent card into the reagent card, click "Start Test", the instrument will automatically identify the test items, and carry out the countdown test.

CPU I MX6 Single Channel Immunofluorescence Quantitative Analyzer 3kg

Note:
1) Please check whether the reagent card is in place. Electroresistive and mechanical sounds are made when the reagent card is inserted, indicating that the reagent card is in place.
(2) Reagent card can not be forcibly removed after inserted into the instrument. To remove the reagent card, click Exit Card.

Product features

External Interface Enhancement LIS/HIS is connected to an external printer
Intelligent Android system Better user experience
Automatic print results Built-in thermoelectric printer can print results automatically
Automatic entry of scanning code The QR code input of proofreading information is convenient and fast.
A 7-inch static touch screen. More sensitive control, more convenient operation
Automatic item identification Support for internal and external test modes

Company profile

CPU I MX6 Single Channel Immunofluorescence Quantitative Analyzer 3kgCPU I MX6 Single Channel Immunofluorescence Quantitative Analyzer 3kgCPU I MX6 Single Channel Immunofluorescence Quantitative Analyzer 3kgCPU I MX6 Single Channel Immunofluorescence Quantitative Analyzer 3kg
