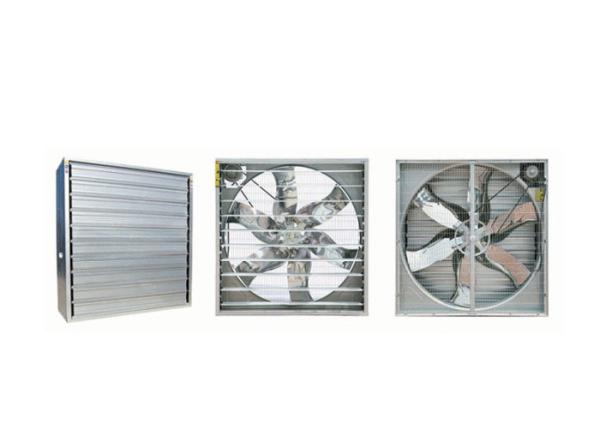

19 23 27 31 " Inch 480 580 680 780 MM Industrial Factory Greenhouse Poultry Farm Exhaust Ventilation Fan

Product Description

1. Frame: frames are made of hot dip galvanized sheet, frame thickness 1.0mm,. Galvanizing layer 180g/square meters.

2. Blade: 6 pieces, material 430/304 stainless steel.

3. Impeller: casting aluminum alloy impeller.

4. bearing of impeller: permanently sealed bearing, size 633313.

5. Collector: galvanized sheet, thickness 1.0mm.

6. Blade tip clearance: 25mm, mirror face.

7. Protecting mesh : plastic sprayed steel wire, thickness 2.8mm.

8. Electrical motor: aluminum alloy frame motor, 380V/220/415V, 1.1KW/0.75KW(1.5HP/1HP), 50HZ/60HZ, 3PH/Single Phase, 4-pole speed, 1410r/m, IP55, class F, efficiency 90%, top/foot mounted,

9. Motor bearing: cast iron.

10. Belt: B-belt and A-belt (Made-in-China and Japan brand Mitsuboshi).

11. Shutters: galvanized board, 0.8 mm thickness while the middle piece thickness 1.0mm. Galvanizing layer, 120g/square meter.

12. Opening system: centrifugal push-push open device.

13. Rivets: aluminum alloy and stainless steel rivets.

Application

The cooling of wet curtain fan is to use the principle of water evaporation and cooling, coupled with related equipment for ventilation to achieve cooling purposes. Although this method is cheaper than air conditioning, it also needs to be equipped with corresponding equipment. Microfog cooling is to spray water into greenhouse in the form of micron or 10 micron fog particles, which can evaporate rapidly. It can absorb a large amount of heat in the air by utilizing the large latent heat of water evaporation, and then discharge moist air outdoors to achieve the purpose of cooling.

Advantage

1. The outline border adopt advanced automatic process, more accuracy, it adopts zinc coated plate;

2. The hub adopts aviation aluminum magnesium metal alloy with light weight, high strength, good tensile;

3. Strap adjust automatically and no need manual adjustment during lifetime;

4. Shutter adopt special push-pull open- close device, ensure shutter totally open and close;

5. Newly punch forming fan blade with reasonable angel and reach the max.
