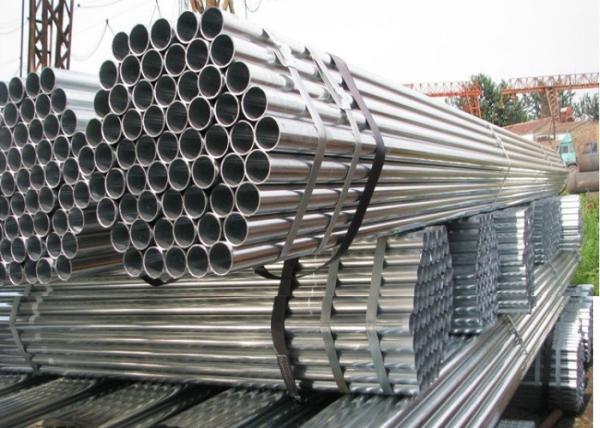

Φ22 Greenhouse Steel Pipe , Hot Dip / Cold GI Galvanized Pipe Greenhouse Frame
Φ22 Greenhouse Steel Pipe , Hot Dip / Cold GI Galvanized Pipe Greenhouse Frame
Φ22 Greenhouse Steel Pipe , Hot Dip / Cold GI Galvanized Pipe Greenhouse Frame
Φ22 Greenhouse Steel Pipe , Hot Dip / Cold GI Galvanized Pipe Greenhouse Frame
Specifications
Brand Name :
KC
Model Number :
KC-0002
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram，Papal
Supply Ability :
200 ton per month
Delivery Time :
15 days
Packaging Details :
Plastic
Name :
Greenhouse Pipe
Size :

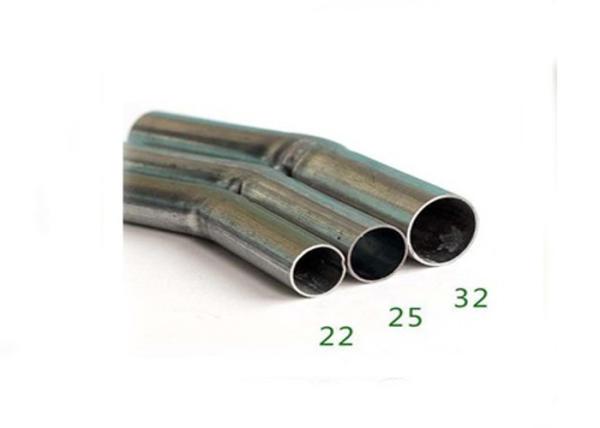

Φ22
Material :
Hot-Galvanized
Color :
See the picture
Application :
Film Greenhouse
Thickness :
2 mm
Description

Hot Dip Or Cold GI Galvanized Steel Pipe And Tubes For Greenhouse

Product Description

The hot-dip galvanized pipe is made by reacting the molten metal with the iron substrate to produce an alloy layer, thereby combining the substrate and the plating layer. Hot-dip galvanizing is to pickle the steel pipe first. In order to remove the iron oxide on the surface of the steel pipe, after pickling, it is washed in an ammonium chloride or zinc chloride aqueous solution or a mixed aqueous solution of ammonium chloride and zinc chloride. Hot dip plating bath. Hot-dip galvanizing has the advantages of uniform coating, strong adhesion and long service life. The hot-dip galvanized steel pipe substrate and the molten plating solution undergo complex physical and chemical reactions to form a corrosion-resistant, tightly structured zinc-iron alloy layer. The alloy layer is integrated with the pure zinc layer and the steel pipe substrate, so its corrosion resistance is strong.

Advantage

1 Thick
2 Uniform Coating
3 Strong Adhesion
4 Long Service Life
5 Low Cost

Production Step

Preparation of round steel; heating; hot rolling perforation; cutting head pickling; grinding; lubrication; cold rolling processing; degreasing; solution heat treatment; straightening and cutting; pickling; inspection of finished products.

The difference between hot dip galvanized steel Langley galvanized belt

Hot-dip galvanized pipe:

(1) the color hot-dip galvanized pipe is a bit whitish,

(2) weight: 6 meters long and 6.5 kg (strong corrosion resistance, long service life, slightly higher price);

Galvanized strip tube:

(1) the color galvanized strip tube is a bit bluish,

(2) weight: 6 meters long and 5.5 kg (the corrosion resistance is slightly worse, the service life is shorter than the hot-dip galvanized steel pipe and the price is low economic).

The difference between the two springs:

(1) The hot-dip galvanized tube is snow-white but not shiny and reflective, and the surface has a lot of snowflakes, and the two ports have zinc knobs (condensed zinc)

(2) The galvanized strip tube is bright and reflective, with few snowflakes, and the two ports are clean and free of zinc tumors.
