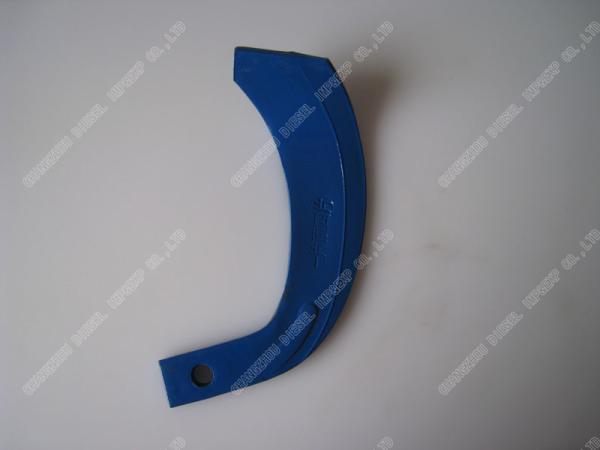

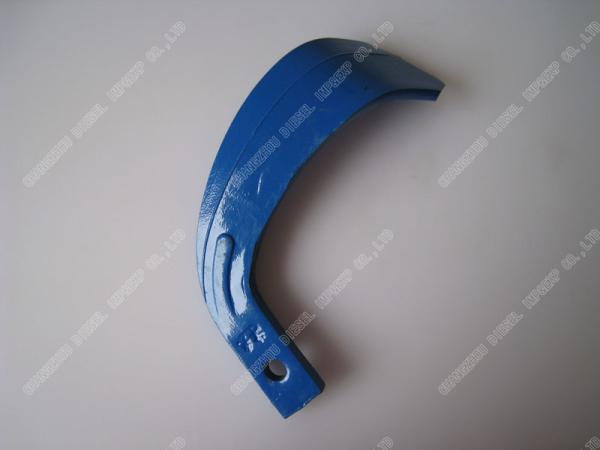

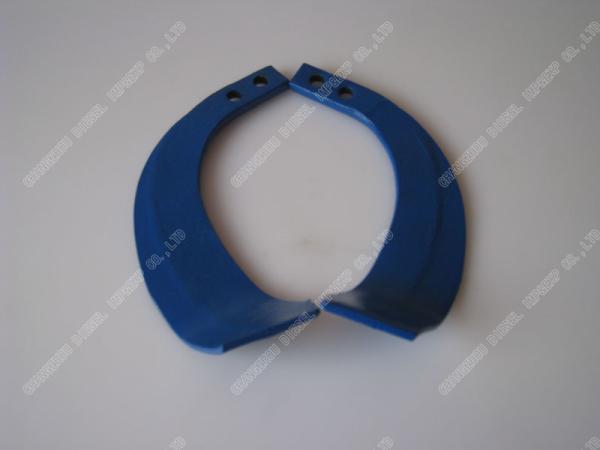

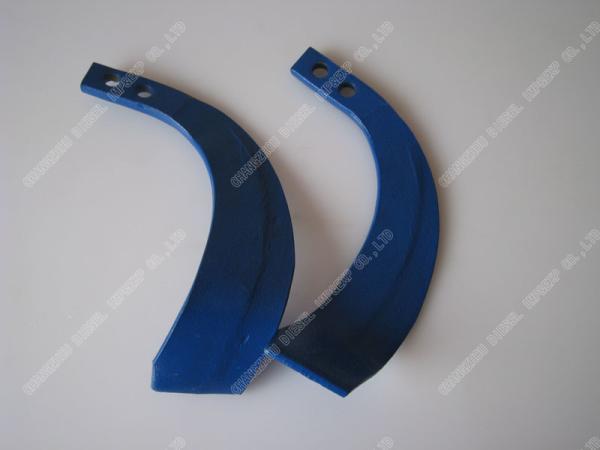

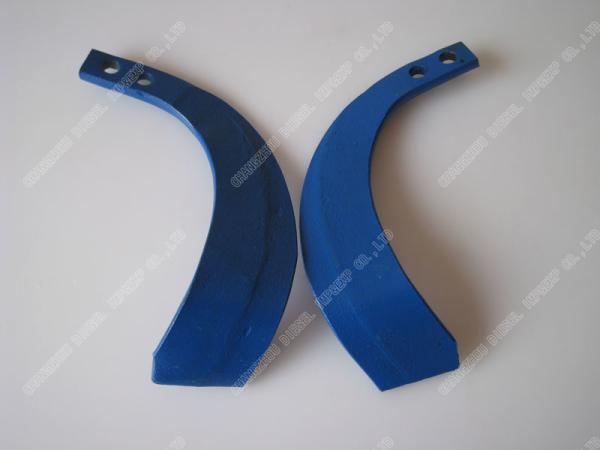

0.5Kg-0.6Kg 581 681 Rotary Tiller Blades For Tractor Double Hole Blue Colorful
0.5Kg-0.6Kg 581 681 Rotary Tiller Blades For Tractor Double Hole Blue Colorful
0.5Kg-0.6Kg 581 681 Rotary Tiller Blades For Tractor Double Hole Blue Colorful
0.5Kg-0.6Kg 581 681 Rotary Tiller Blades For Tractor Double Hole Blue Colorful
0.5Kg-0.6Kg 581 681 Rotary Tiller Blades For Tractor Double Hole Blue Colorful
0.5Kg-0.6Kg 581 681 Rotary Tiller Blades For Tractor Double Hole Blue Colorful
0.5Kg-0.6Kg 581 681 Rotary Tiller Blades For Tractor Double Hole Blue Colorful
0.5Kg-0.6Kg 581 681 Rotary Tiller Blades For Tractor Double Hole Blue Colorful
0.5Kg-0.6Kg 581 681 Rotary Tiller Blades For Tractor Double Hole Blue Colorful
0.5Kg-0.6Kg 581 681 Rotary Tiller Blades For Tractor Double Hole Blue Colorful
Specifications
Brand Name :
SS GOLD;SH SUPER;OEM
Model Number :
DF DRY/WET;SF DRY WET;581 681
Certification :
ISO9001:2008
Place of Origin :
CHANGZHOU
MOQ :
100 SETS
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100000SETS PER MONTH
Delivery Time :
Within 20 working days after deposit
Packaging Details :
Standard export packing or as you request
Type :
Blades
Hole :
Double Hole
Use :
Tractors
Size :
Standard
Color :
Blue
Packing :
Colorful foam packing
Description

0.5kg-0.6kg 581 681 power tiller blade for tractor double hole blue colorful packing0.5Kg-0.6Kg 581 681 Rotary Tiller Blades For Tractor Double Hole Blue Colorful

Details

Code No. Plate Hole dia/dis Working height Working radius Weight
QB-R01 25mm*10mm 10mm 50mm 195mm 0.4kg
QB-R02 25mm*10mm 11/24mm 52mm 225mm 0.5kg
QB-R03 30mm*10mm 13mm 45mm 240mm 0.65kg
QB-R04 30mm*10mm 13mm 50mm 225mm 0.48kg
QB-R05 25mm*7mm 11mm 50mm 175mm 0.30kg
QB-R06 30mm*10mm 13mm 55mm 245mm 0.55kg
QB-R07 25mm*10mm 12mm 50mm 225mm 0.5kg
QB-R08 25mm*10mm 12/24mm 56mm 225mm 0.5kg
QB-R09 30mm*10mm 14mm 52mm 225mm 0.5kg
QB-R10 30mm*10mm 14mm 55mm 225mm 0.5kg
QB-R11 24mm*8mm 11mm 34mm 120mm 0.2kg
QB-R12 30mm*10mm 12.5mm 45mm 230mm 0.68kg
etc.
Chemical Composition
Material Chemical compostion table
C(%) Si(%) Mn(%) Cr(%) P(%) S(%) B(%)
65Mn O.62-0.70 0.17-0.37 0.90-1.20 ≤0.25 ≤0.015 ≤0.035
60Si2Mn 0.56-0.64 1.50-2.00 0.69-0.90 ≤0.35 ≤0.035 ≤0.035
55SiMnB 0.52-0.60 1.50-2.00 0.69-0.90 ≤0.35 ≤0.035 ≤0.035
28SiMnB 0.24-0.32 0.60-1.00 1.20-1.60 0.014 0.015 0.0005-0.0035
30MnCrB5 0.26-0.34 ≤0.40 1.10-1.40 0.30-0.60 ≤0.025 ≤0.035
SuP9 0.52-0.60 0.15-0.35 0.65-0.95 0.65-0.95 ≤0.030 ≤0.030

We also can provide the follow Single cylinder diesel engine part product:

Camshaft and Crankshaft; Plunger and delivery valve
Cylinder block, Cylinder head, cylinder liner; Piston, Piston ring/Pin
Cylinder head, Cylinder head bonnet/gasket/bolt/nut/wrench
Connecting rod, Connecting rod bushing/ bearing/Bolt
Valve, Valve spring/guide/seat /spring seat/collet/push rod/tappet /Needle valve spindle
Rocker arm, Rocker arm/bolt /seat /seat stub /seat shaft,
Fuel injection, Fuel injection pump; Oil pump, Oil pump rotor
Main bearing housing/alloy; Balancing shaft/gear; Starting shaft/gear/handle
Air filter, Air filter element; Fuel filter, Fuel filter element
Fuel tank, Fuel tank cap; Water tank, Water tank cap
Intake and exhaust pipe, Intake and exhaust pipe gasket
Dipsticks; Silencer; Gear, Bearing, Flywheel
