60hp DF604 Agriculture Farm Tractor
60hp DF604 Agriculture Farm Tractor
60hp DF604 Agriculture Farm Tractor
60hp DF604 Agriculture Farm Tractor
60hp DF604 Agriculture Farm Tractor
60hp DF604 Agriculture Farm Tractor
60hp DF604 Agriculture Farm Tractor
60hp DF604 Agriculture Farm Tractor
Specifications
Brand Name :
Dongfeng
Model Number :
DF604
Place of Origin :
China
MOQ :
1 unit
Price :
USD10900
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
200 unit/ month
Delivery Time :
30 days
Power :
60hp
Size :
3890*1828*2550mm
Tyre size :
8.3-24 /14.9-28
Description

1. Technical parameters of DONGFENG Tractor 60hp DF604

Tractor Parameters Model DF604
Drive Type 4WD
Overall Dimensions L*W*H(mm) 3890*1828*2550
Wheel Track(mm) Front 1200-1470
Rear 1200-1620
Wheel Base(mm) 1980
Ground Clearance(mm) 370
Rated Traction Force(N) 14500
Construction Mass(Kg) 2370
Min. Turning Radius(m) 4.2±0.3
Engine Specifications Model 4G33T ( Euro3)
Type 4-cylinder,Upright inline cylinder radiator cooling,4-storke cycle, direct-injection
Rated Power(Kw/hp) 44.1/60.0
Rated Fuel Consumption(g/kw/h) <242
Rated Speed(rpm) 2300
Bore*Stroke(mm) 105*125
Total Displacement(L) 4.33
Drive System Clutch Dry Linkage type dual shift Function clutch
Gear Box 4×3×2 Sliding gear shift (with shuttle shift gears)
Main Drive One Pair of Spiral Bevel gears
Differential Bevel Gear
Differential Lock sliding pin, foot operated
Final Transmissions planetary reduction gear
Travelling Mechanism Tyre front 8.3-24
rear 14.9-28
Steering Gear Hydraulic steering
Brake Wet disc(Multiple)
Working Device Hydraulic System Lifting Capacity at 610 mm Behind Lift Point(Kg) 1200
3-point Suspension Category: II
P.T.O. Shaft Rotating Speed(rpm) 540/1000
Spline size 6-φ35 Rectangular spline

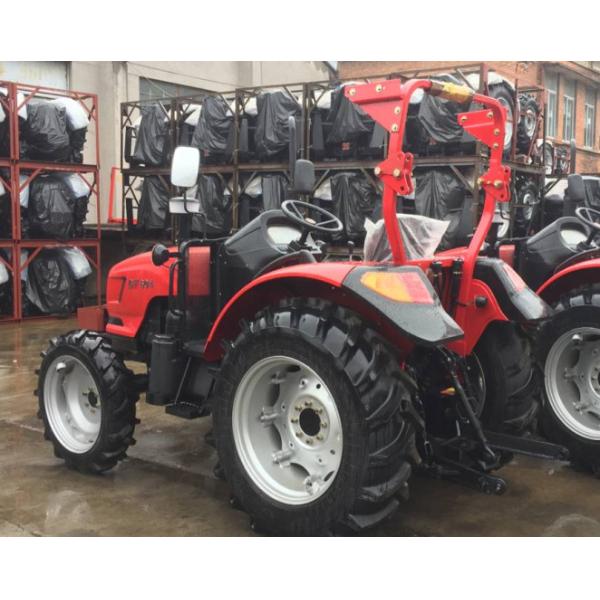

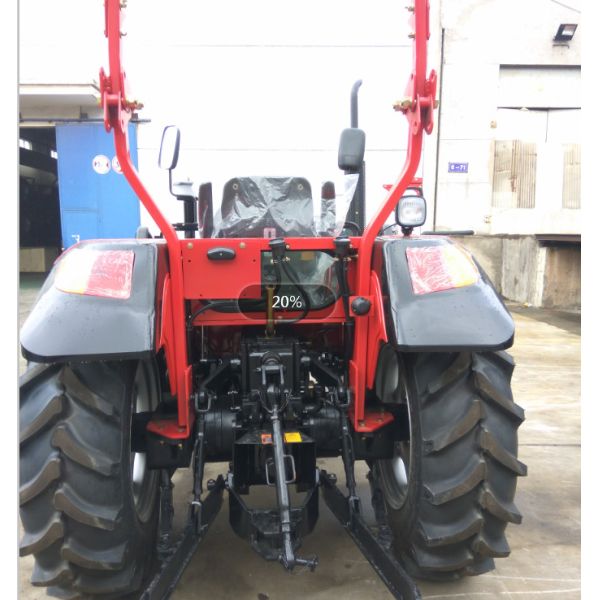

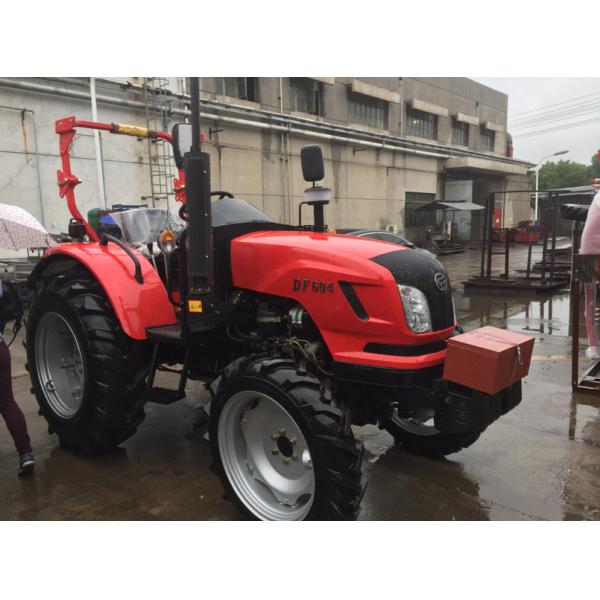

2. Photos of DF604 60HP DONGFENG Tractor

60hp DF604 Agriculture Farm Tractor

60hp DF604 Agriculture Farm Tractor60hp DF604 Agriculture Farm Tractor
