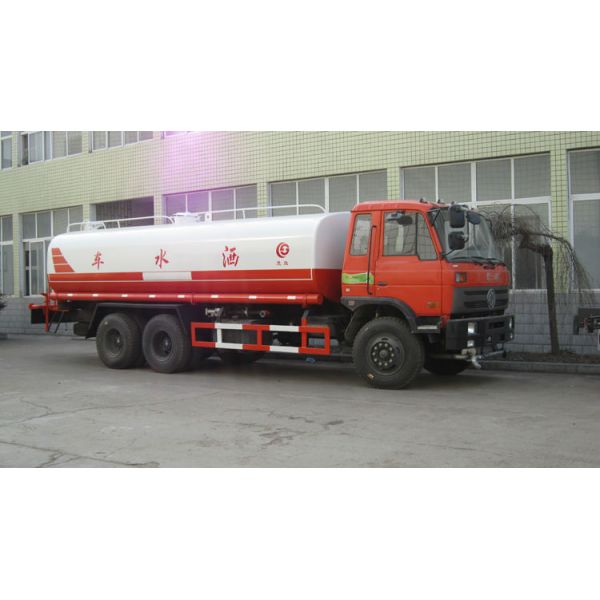

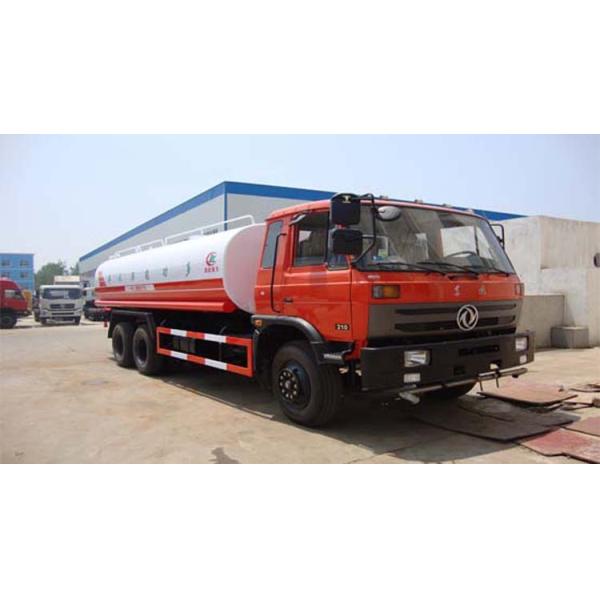

Dongfeng 6x4 20000L 210hp Water Bowser Truck Double Back Bridge
Dongfeng 6x4 20000L 210hp Water Bowser Truck Double Back Bridge
Dongfeng 6x4 20000L 210hp Water Bowser Truck Double Back Bridge
Dongfeng 6x4 20000L 210hp Water Bowser Truck Double Back Bridge
Dongfeng 6x4 20000L 210hp Water Bowser Truck Double Back Bridge
Dongfeng 6x4 20000L 210hp Water Bowser Truck Double Back Bridge
Dongfeng 6x4 20000L 210hp Water Bowser Truck Double Back Bridge
Dongfeng 6x4 20000L 210hp Water Bowser Truck Double Back Bridge
Specifications
Brand Name :
Dongfeng
Model Number :
20000L
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
40000-50000
Delivery Time :
30-40 days
Packaging Details :
Nude
Condition :
New
Capacity :
20000L
Horse Power :
210hp
Drive type :
6x4
Wheel base :
4350+1300mm
Description

XDEM Dongfeng 6x4 20000L 210hp double back bridge Water Bowser Tanker Truck

Whole Truck Main Technical Parameter
Product Name

DONGFENG

Water Truck

 Product Brand DONGFENG
Wheelbase(mm) 4350+1300 Overall Dimension(L*W*H)(mm) 9950×2490×3350
Front/ rear suspension(mm) 1245/3055 Tank volume(L) 20000
Gross weight (kg) Approx 29000 Axle number 3
Curb weight(kg) Approx 9005 Traction Type: 6*4
Approach/ departure angle (° ) 28/10 Max Speed (km/h) 85
Cab capacity 3 Cab Type Flat Proof, one and half row
Chassis Technical Parameter
Chassis Model: EQ5251GYYKJ Chassis manufacturer: DONGFENG Motor Co., Ltd
Gear box 8 speed forward and 1 reverse Transmission type: Manual
Steering Type Power steering/LHD Brake System Air brake, double circuit
Leaf Spring number: 8/13,8/12 Drive axle DONGFENG Dena
Number of Tire 10 with a spare Tire size/type 11.00-20,11.00R20
Engine specification
Engine Model: B210 33 Engine Brand DONGFENG Cummins Engine Co., Ltd
Fuel type: Diesel Displacement(ml) 5900
Emission stand Euro 3 Power(kw) 155(210hp)
Warranty 12 months, from the date of supply
Equipment and parameter 1 Adopt 5mm good quality carbon steel tank, equipped with one pneumatic valve that can control overall waterway
2. Equipped with front(rear, side)sprinkler(sprinkling width>14m )
3. Equipped with rear working platform with water cannon (range>28m)
4. Equipped with CLW pump(suction lift>6m)
5. Equipped with fire valve, water valve, and filter gauze

Dongfeng 6x4 20000L 210hp Water Bowser Truck Double Back BridgeDongfeng 6x4 20000L 210hp Water Bowser Truck Double Back BridgeDongfeng 6x4 20000L 210hp Water Bowser Truck Double Back Bridge

Company Information

We Nanyang Xinda Electro-Mechanical (XDEM), is an senior international trading company mainly dealing construction machinery, which was set up and supported by local dealer ship of XCMG, LIUGONG, we continually introduce Chinese excellent construction machinery enterprises and their products to international markets, such as XCMG, LIUGONG, SANY, YTO etc. We not only make more international customers know and approbate our products, but also gradually build up friendship with construction machinery customers all over the world.
We have the largest-size factories for construction machinery and industrial equipments in Asia. Our factories have the world-class modern facilities and automated manufacturing process for production. Our factories are mainly located in Jiangsu, Henan, Hubei provinces in China.
