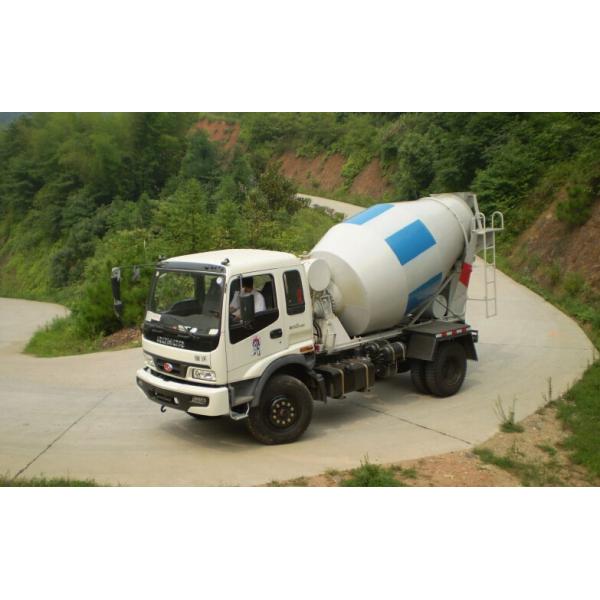

6m3 Volumetric Concrete Truck , 4x2 Concrete Mixing Transport Truck
6m3 Volumetric Concrete Truck , 4x2 Concrete Mixing Transport Truck
6m3 Volumetric Concrete Truck , 4x2 Concrete Mixing Transport Truck
6m3 Volumetric Concrete Truck , 4x2 Concrete Mixing Transport Truck
6m3 Volumetric Concrete Truck , 4x2 Concrete Mixing Transport Truck
6m3 Volumetric Concrete Truck , 4x2 Concrete Mixing Transport Truck
6m3 Volumetric Concrete Truck , 4x2 Concrete Mixing Transport Truck
6m3 Volumetric Concrete Truck , 4x2 Concrete Mixing Transport Truck
6m3 Volumetric Concrete Truck , 4x2 Concrete Mixing Transport Truck
6m3 Volumetric Concrete Truck , 4x2 Concrete Mixing Transport Truck
Specifications
Brand Name :
XDEM
Model Number :
LOXA L8
Certification :
CE ISO
Place of Origin :
China
MOQ :
1 set
Price :
USD80000-150000
Supply Ability :
500 sets per month
Delivery Time :
45 working days
Packaging Details :
Nude
Type :
New
Vehicle model :
BJ5162V5PDB-D5 Concrete Truck
Chassis model :
BJ1162V5PDB-D5
Rated loading capacity :
Appro×7900
Tire specification :
10.00-20,10.00R20
Engine type :
YC6J180-33
Overall dimensions :
7385×2490×3650mm
Description

FOTON Rowor 4x2 6m3 Concrete Mixer Truck LOXA L8 Series Concrete Mixing Transport Truck

1. Brief Introduction

Special concrete transport trucks (in–transit mixers) are made to transport and mix concrete up to the construction site. They can be charged with dry materials and water, with the mixing occurring during transport. With this process, the material has already been mixing. The concrete mixing transport truck maintains the material's liquid state through agitation, or turning of the drum, until delivery. The interior of the drum on a concrete mixing truck is fitted with a spiral blade. In one rotational direction, the concrete is pushed deeper into the drum. This is the direction the drum is rotated while the concrete is being transported to the building site. This is known as "charging" the mixer. When the drum rotates in the other direction, the Archimedes' screw-type arrangement "discharges", or forces the concrete out of the drum. From there it may go onto chutes to guide the viscous concrete directly to the job site. If the truck cannot get close enough to the site to use the chutes, the concrete may be discharged into a concrete pump, connected to a flexible hose, or onto a conveyor belt which can be extended some distance (typically ten or more metres). A pump provides the means to move the material to precise locations, multi-floor buildings, and other distance prohibitive locations. The drum is traditionally made of steel but on some newer trucks as a weight reduction measure, fibreglass has been used.

2. Specification

Item unit parameter
Vehicle model BJ5162V5PDB-D5 Concrete Truck
Chassis model BJ1162V5PDB-D5
Overall dimensions mm 7385×2490×3650
GVW kg Appro×15965
Rated loading capacity Appro×7900
Mass in working order Appro×7870
Body internal dimensions mm xx
Wheel base 3900
F/R track base 1940/1870
Approach/departure angle ° 24/31
Exhaust/hp ml/kw 6494/132
Max speed km/h 80
Tire specification 10.00-20,10.00R20 Engine type YC6J180-33
Traction system 4×2 Tires number 6
Number of axles 2 Allowable passengers in cab 3

6m3 Volumetric Concrete Truck , 4x2 Concrete Mixing Transport Truck
