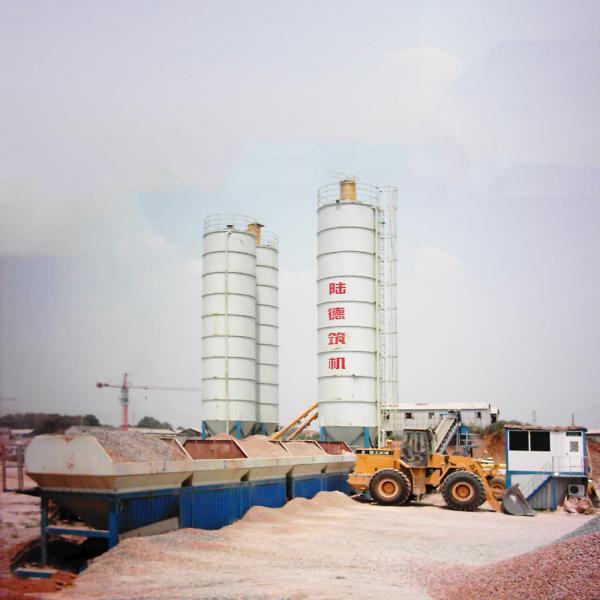

50Hz 700t/H Stationary Concrete Batching Plant WCBD700
50Hz 700t/H Stationary Concrete Batching Plant WCBD700
50Hz 700t/H Stationary Concrete Batching Plant WCBD700
50Hz 700t/H Stationary Concrete Batching Plant WCBD700
50Hz 700t/H Stationary Concrete Batching Plant WCBD700
50Hz 700t/H Stationary Concrete Batching Plant WCBD700
50Hz 700t/H Stationary Concrete Batching Plant WCBD700
50Hz 700t/H Stationary Concrete Batching Plant WCBD700
Specifications
Brand Name :
XDEM
Model Number :
WCBD700
Certification :
CE ISO
Place of Origin :
China
MOQ :
1 set
Price :
USD80000-100000
Supply Ability :
500 sets per month
Delivery Time :
45 working days
Packaging Details :
Nude
Model :
WCBD700
Rated capacity :
700t/h
Filler bin capacity :
2x65m3
Total installed capacity :
179kW
Power :
380V / 220V, 50Hz three-phase four-wire system
Description

WCBD700 700TPH Stationary Stabilized Soil Mix Machine on Sale

50Hz 700t/H Stationary Concrete Batching Plant WCBD700

Product Specs Data:

Model WCBD700
Rated Capacity 700tph
Overall Dimension 54000x26000x18000mm
Aggregate Max Diameter 80mm
Weighing Accuracy Aggregate:±1%,
Filler:±1%
Water:±1%
Total Power 178.12KW
Aggregate Supply System Hopper quantity: 5 (standard) or upon request
Hopper volume:10m3
Hopper width:3540mm
Electronic belt scale motor power:5x4.7KW(Frequency control)
Conveying belt width:1200mm
Filler Supply System Filler silo volume:2x65m3
Vertical type silo
Water Supply System Water tank quantity: 1(standard) or upon request
Water tank volume:10m3
Water pipeline
Rated flow:25t/h
Mixing System Motor power:2x45KW,
Max aggregate diameter:80mm
Mixture Conveying System Conveying belt width:1200mm
Motor power:21.2KW
Mixture Storage Hopper 8m3
Control System Control room and electric system(PLC)
Operating type: Manual, manual auto, auto
