G16NX 16m3 Volumetric Mixer Truck , 280kw Cement Mixing Truck
G16NX 16m3 Volumetric Mixer Truck , 280kw Cement Mixing Truck
G16NX 16m3 Volumetric Mixer Truck , 280kw Cement Mixing Truck
G16NX 16m3 Volumetric Mixer Truck , 280kw Cement Mixing Truck
G16NX 16m3 Volumetric Mixer Truck , 280kw Cement Mixing Truck
G16NX 16m3 Volumetric Mixer Truck , 280kw Cement Mixing Truck
G16NX 16m3 Volumetric Mixer Truck , 280kw Cement Mixing Truck
G16NX 16m3 Volumetric Mixer Truck , 280kw Cement Mixing Truck
G16NX 16m3 Volumetric Mixer Truck , 280kw Cement Mixing Truck
G16NX 16m3 Volumetric Mixer Truck , 280kw Cement Mixing Truck
Specifications
Brand Name :
XDEM
Model Number :
G16NX
Certification :
CE ISO
Place of Origin :
China
MOQ :
1 set
Price :
USD50000-100000
Supply Ability :
500 sets per month
Delivery Time :
45 working days
Packaging Details :
Nude
Type :
New
Model :
G16NX
Brand of chassis :
NAC
Type of driving :
Left-hand drive
urb weight :
17600 kg
Maximum gross weight :
31000kg
Wheel base :
2100+3300+1350mm
Tyre :
12.00R20
Description

XDEM G16NX 16m3 280kw Concrete Mix Truck Industrial Cement Mixer

16 cubic meters concrete mixer truck Diameter:

Type Model Unit G16NX
Performance of mixing drum Geometric volume m³ 24.9
Mixing volume m³ 16
Maximum diameter of drum body mm 2432
Length of mixing drum mm 7273
Angle of inclination ° 9.5
Rotating speed r/min 0~14
Charge speed m³/min ≥3
Discharge speed m³/min ≥2
Residue ratio of discharge % <0.7
Range of slump cm 5~21
Hydraulic system Oil pump international brand
Motor international brand
Reduction gears international brand
Hydraulic circuit Closed type
Water supply water tank capacity L 450
Way of water supply Pneumatic
Complete machine Brand of chassis NAC
Chassis model NXG5330THBK4X
Type of driving Left-hand drive
Curb weight kg 17600
maximum gross weight kg 31000
Type of drive 8×4
Wheel base mm 2100+3300+1350
Tyre 12.00R20
Means of power takeoff Power takeoff by flywheel
Notice model
External dimensions (length×width×height)mm 11460×2500×3995
Engine Model WP12NG380E30
Rated power Kw/r/min 280
Displacement L 11.596
Emission standard GB III

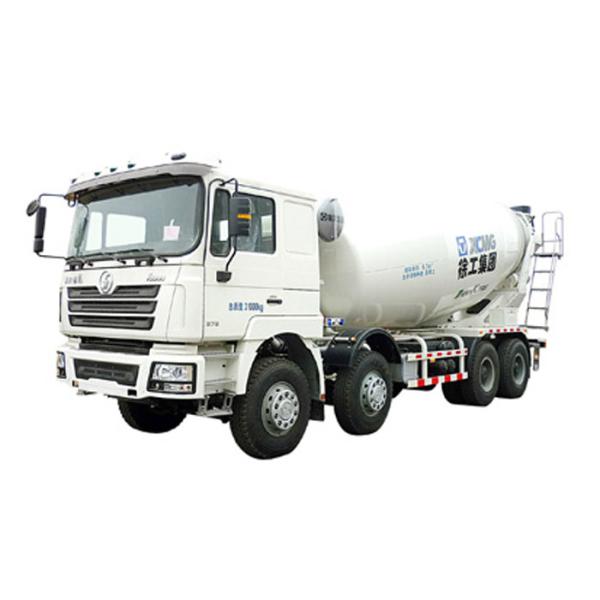

16 cubic meters concrete mixer truck Picture:

G16NX 16m3 Volumetric Mixer Truck , 280kw Cement Mixing Truck

Company Information

We Nanyang Xinda Electro-Mechanical (XDEM), is an senior international trading company mainly dealing construction machinery, which was set up and supported by local dealer ship of XCMG, LIUGONG, we continually introduce Chinese excellent construction machinery enterprises and their products to international markets, such as XCMG, LIUGONG, SANY, YTO etc. We not only make more international customers know and approbate our products, but also gradually build up friendship with construction machinery customers all over the world.
We have the largest-size factories for construction machinery and industrial equipments in Asia. Our factories have the world-class modern facilities and automated manufacturing process for production. Our factories are mainly located in Jiangsu, Henan, Hubei provinces in China.
