Full Automatic Vibrating Screening Machine Single Layer Sediment Stone Equipment 5.5kw
Full Automatic Vibrating Screening Machine Single Layer Sediment Stone Equipment 5.5kw
Full Automatic Vibrating Screening Machine Single Layer Sediment Stone Equipment 5.5kw
Full Automatic Vibrating Screening Machine Single Layer Sediment Stone Equipment 5.5kw
Full Automatic Vibrating Screening Machine Single Layer Sediment Stone Equipment 5.5kw
Full Automatic Vibrating Screening Machine Single Layer Sediment Stone Equipment 5.5kw
Specifications
Brand Name :
XDEM
Place of Origin :
Henan,China
MOQ :
1set
Price :
USD3142-4000
Payment Terms :
L/C, T/T
Supply Ability :
50sets per month
Delivery Time :
22-30days
Application :
Organic fertilizer production line
Drum Speed(r/min) :
21
Screening Capacity(t/h :
1-2
Weight :
1006 KG
Power(kw) :
5.5kw
Voltage :
380V
Type :
Screening
Description
Specification
Model
Nominal size (mm)
Material particle size (mm)
Inclination of screen surface (º)
Amplitude (mm)
Number of layers
Power (kw)
SZF-520
500*2000
0.074～10
0º～7º
4-10
1-6
2* (0.4~0.75)
SZF-525
500*2500
2* (0.4~0.75)
SZF-1020
1000*2000
2* (0.4~0.75)
SZF-1025
1000*2500
2* (0.4~1.1)
SZF-1030
1000*3000
2* (1.1~1.5)
SZF-1040
1000*4000
2* (1.1~1.5)
SZF-1235
1200*3500
2* (1.1~2.2)
SZF1250
1200*5000
2* (1.1~2.2)
SZF-1535
1500*3500
2* (1.1~2.1)
SZF-1560
1500*6000
2* (2.2~3.7)
SZF-1845
1800*4500
0.074～15
2* (2.2~3.7)
SZF-2050
2000*5000
2* (2.2~3.7)
SZF-2260
2200*6000
2* (2.2~3.7)
Product Introduction

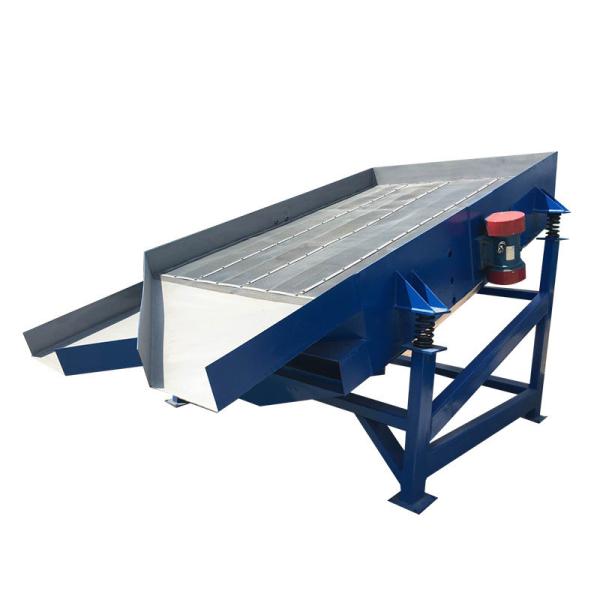

SZF linear vibrating screen uses the motor as the vibration source to make the materials be thrown up on the screen mesh and move forward in a straight line at the same time. The materials enter the feed inlet of the screen evenly from the feeder, and the materials above and below the screen of several specifications are respectively discharged from each other through the multi-layer screen mesh. With low energy consumption, high output, simple structure, easy maintenance, fully enclosed structure, no dust spillage, automatic discharge, more suitable for flow process.
Feature
① Ladder type net loading structure, without material mixing and leakage. ② Unique screen loading structure, rapid screen replacement. ③ Built in cleaning system, powerful self-cleaning function. ④ High screening accuracy and large processing capacity. ⑤ Fully closed structure, automatic layout, suitable for flow process. Widely used in: chemical industry, medicine, food, spice, tea, feed, plastic, rubber, fertilizer, sugar Salt industry, renewable resources, EPS, PVI, PVC resin and other industries that need grading treatment of fine materials.
